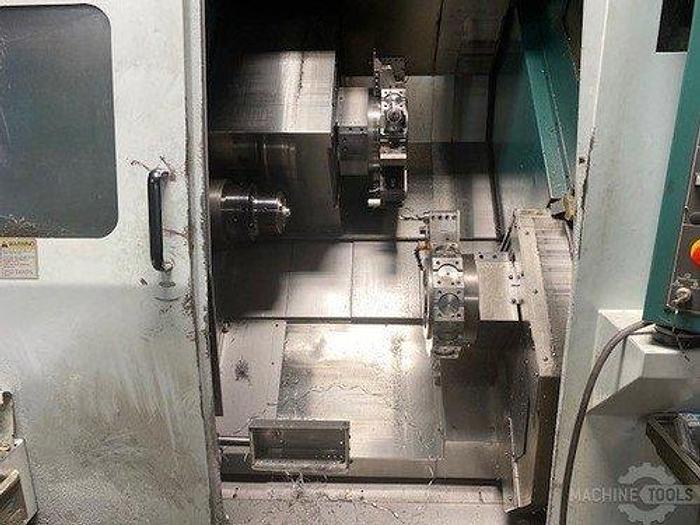

2001 NAKAMURA-TOME WT-250MM

NAKAMURA-TOME WT-250MM 2001

 Axis 6

Chuck Size 6"

Bar Capacity 2.5"

Power 35 hp

Max RPM 4,500 RPM

Turning Dia 9.84"

Swing 9.84"

Machining Length 21.85"

Weight 17,600 lbs

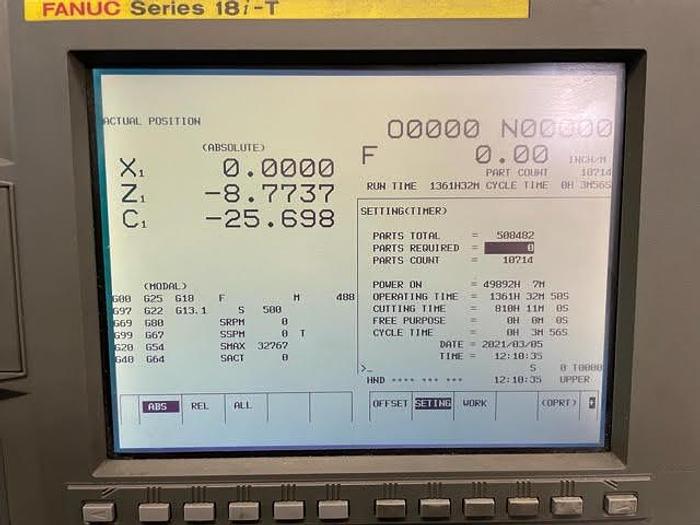

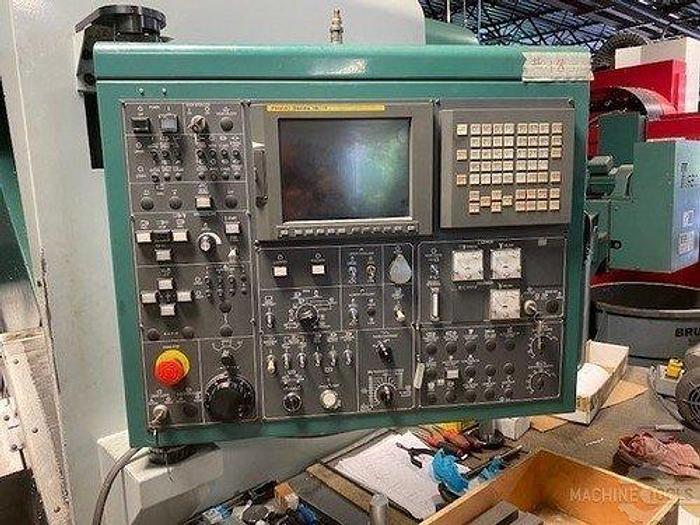

Control CNC (Fanuc 18iTA)

EQUIPPED WITH

2001 Nakamura-Tome WT-250MM, Bolt-On Turret, Parts Catcher-A

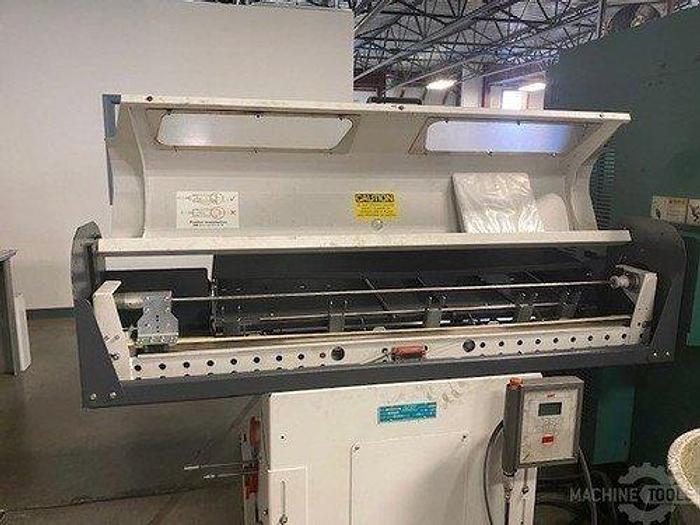

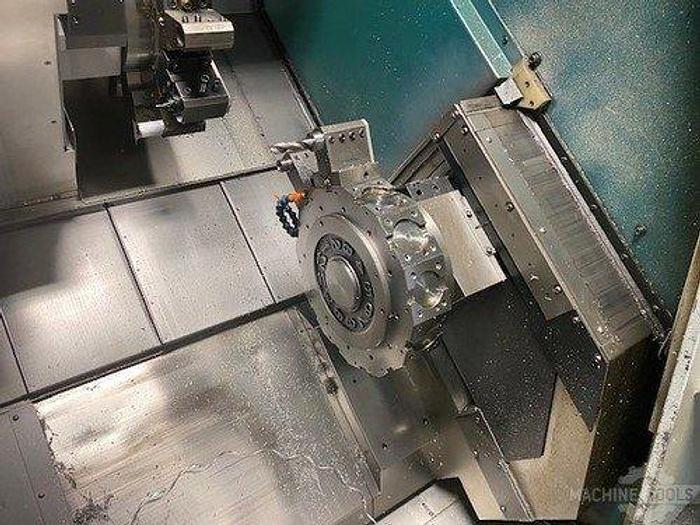

4,500 RPM Spindle, 12 Station Bolt-On Upper/12 Station Lower Turret, Full C Axis Milling Left Spindle, Air Blow, NT Nurse, Rigid Tapping, Spindle Speed Override, LNS Quick Load Servo 65 Short Barfeed, ATS True Length A2-6 S26 Collet Chuck
