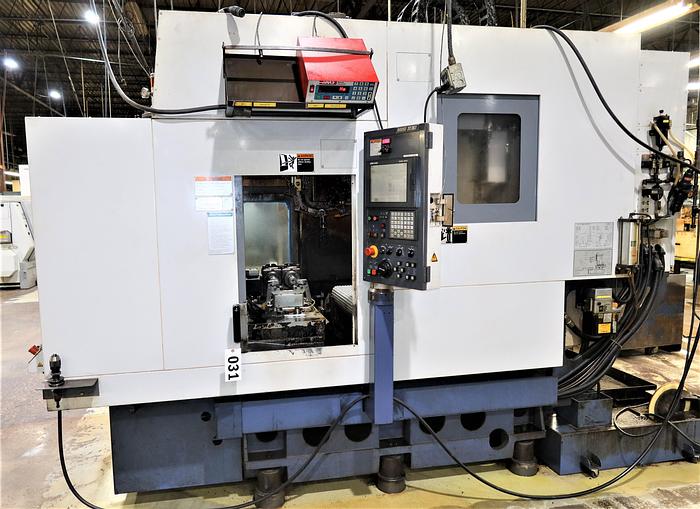

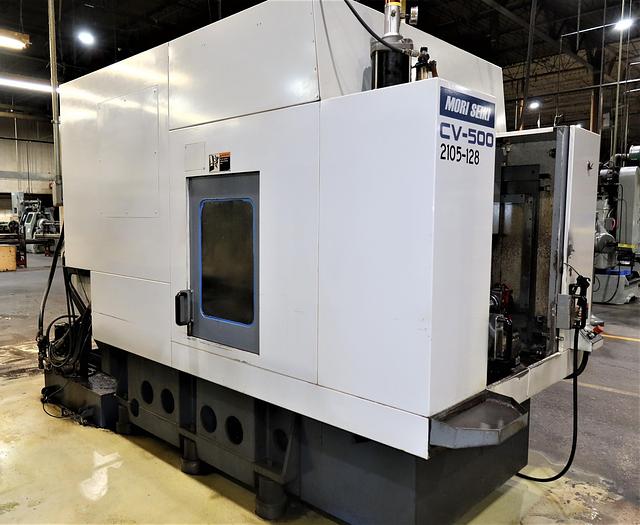

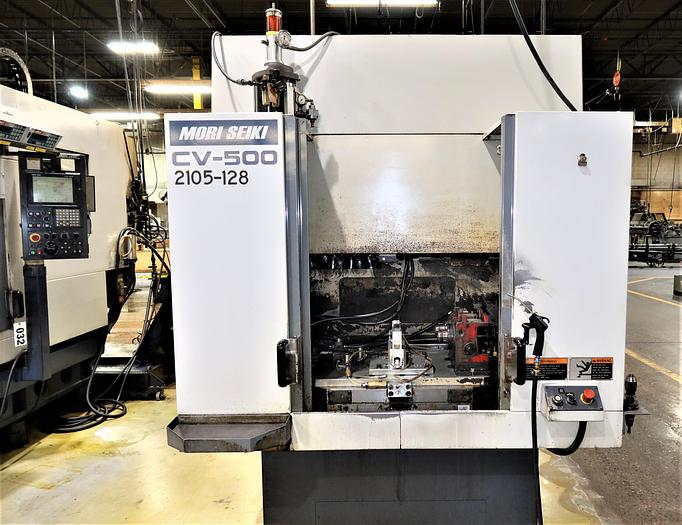

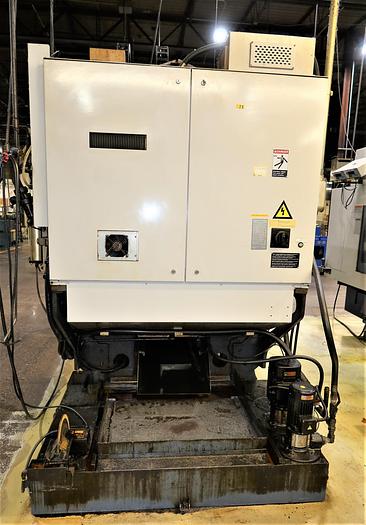

1998 MORI SEIKI CV-500

MORI SEIKI CV-500 CNC PALLET CHANGER DRILL TAP CENTER 1998

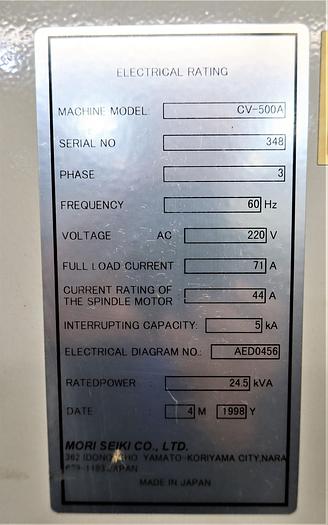

Serial Number 348

Specifications

Rotating Pallet Size 48.4" x 29.5"

Workpiece Change Setup 0/180 Deg.

Working Surface 29.5" x 21.7"

Table Load Capacity on Rotating Pallet 880 LBS Total

Table Top to Spindle Nose Minimum 6.9"

Table Top to Spindle Nose Maximum 27"

Longitudinal Travel (X-Axis) 20.1"

Cross Travel (Y-Axis) 20.1"

Vertical Travel (Z-Axis) 20.1"

Rapid Traverse Rate X & Y Axes 1635 IPM

Rapid Traverse Rate Z-Axis 1259 IPM

Tool Storage Capacity 25

Spindle Horsepower 15 HP

Spindle Speed Range 20 - 8000 RPM

Spindle Taper CAT 40

Approximate Machine Dimensions 140" x 80"

Approximate Machine Height 108"

Approximate Machine Weight 10,000 LBS

Equipped With

Mori Seiki MSC-803 Conversational CNC w/ CRT

High Pressure Thru the Spindle Coolant,

Manual Pulse Generator

Inch Metric Conversion

Work Coordinate System Selection

Circular Interpolation

Tool Life Management

Tool Offsets

Rigid Tapping

25 Station Automatic Tool Changer

Coolant System

NO HAAS INDEXERS
