2004 GLEASON 245TWG

2004 GLEASON 245TWG GEAR GRINDER

GLEASON 245TWG CNC THREADED WHEEL GEAR GRINDER WITH AUTO LOADING, 275MM DIAM. CAP, W/ TAILSTOCK, OBERLIN FILTRATION, FULLY LOADED UNDER POWER, INSTALLED 2007

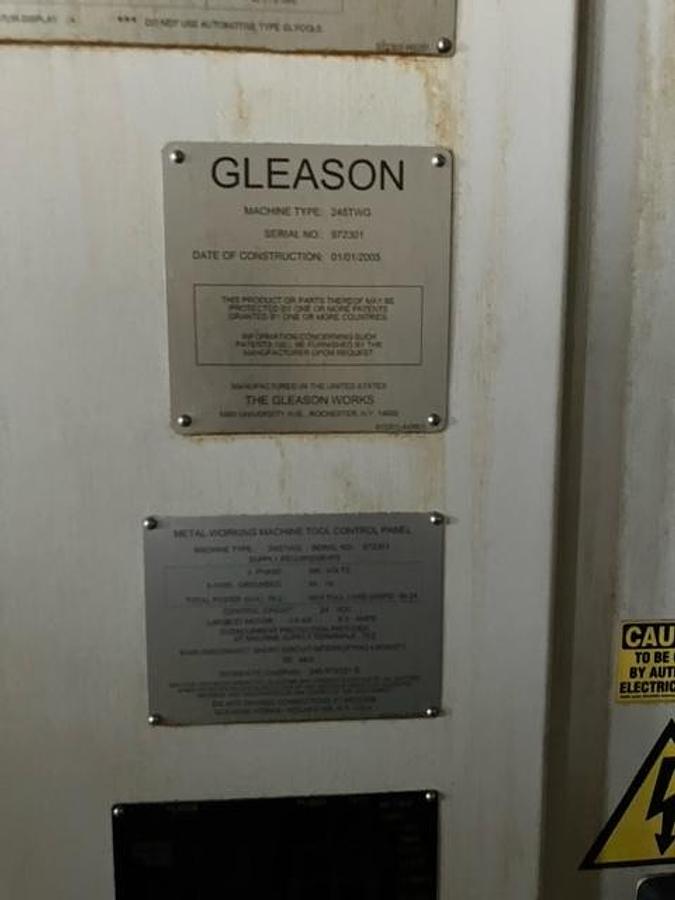

S/N 972301

SPECIFICATIONS

MACHINE SPECIFICATIONS:

NOMINAL WORKPIECE DIAMETER (MAX) 245 MM - (275 MM)

NOMINAL MODUL (MAX)           3.25 MOD (5.0 MOD)

GRINDABLE PROFILE DEPTH MAXIMUM 15 MM

MAX AXIAL SLIDE TRAVEL 400 MM

MAX WORK SPINDLE SPEED 1500 RPM WORK TABLE DIAMETER 158.7 MM

WORK TABLE BORE DIAMETER 15 TAPER (.5IN/FT TAPER)

MAX SWIVEL ANGLE + 45 DEG

MAX TABLE LOAD 500 KG

LENGTH (SHAFT TYPE PARTS) MAXIMUM 400 MM

GRINDING WHEEL

OUTSIDE DIAMETER (MIN X MAX) 160-220MM

LENGTH MAXIMUM 180MM

BORE DIAMETER 90MM

MACHINE

SPEED OF GRINDING WHEEL MAXIMUM 6,600 MIN-1

RAPID INFEED OF LINEAR  AXES X & Z 6,000 MM/MIN-1

RAPID INFEED OF LINEAR AXES Y 3,000 MM/MIN-1

WORK SPINDLE SPEED 1,500 MM-1

AXIAL SLIDE TRAVEL 400 MM

SHIFT TRAVEL TANGENTIAL 240 MM

CENTER DISTANCE, GRINDING WHEEL SPINDLE TO WORKPIECE 35-240MM

DISTANCE BETWEEN WORK SPINDLE - COUNTER SUPPORT SPINDLE FACE  400-700 MM

ELECTRICS

CONNECTING LOAD BASIC MACHINE 65 KVA

TOTAL LOAD 100KVA

COOLANT EQUIPMENT 27 KVA

WEIGHT

WEIGHT OF MACHINE 10,000 KG

WEIGHT OF MACHINE WITH COOLANT UNIT 13,000 KG

FLOOR SPACE

FLOOR SPACE WITH COOLANT SYSTEM 3,500 X 5,000MM

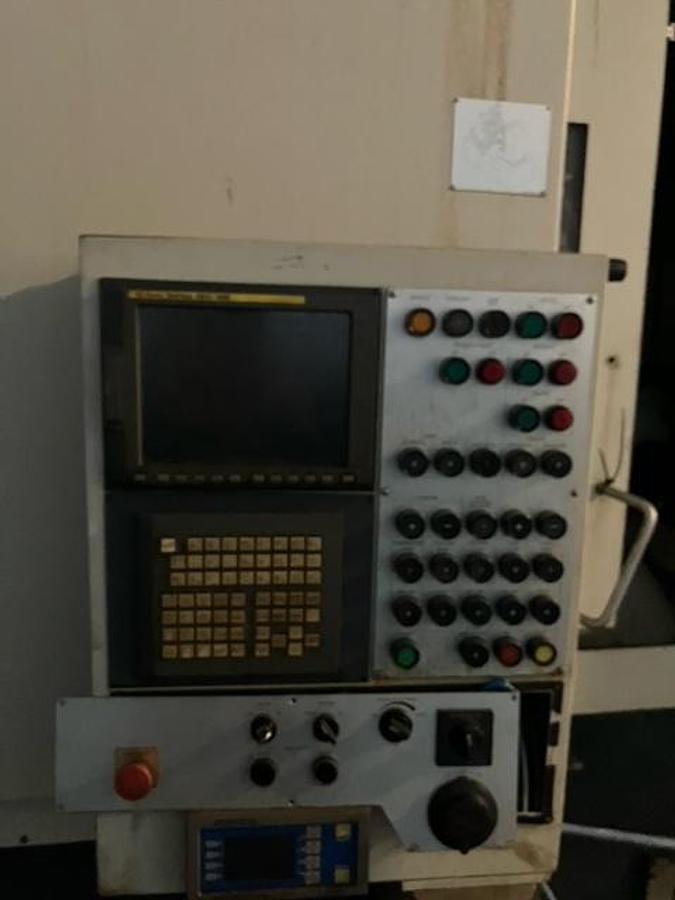

MACHINE IS EQUIPPED WITH

SIEMENS 840D 6 AXIS CNC CONTROLLER

CNC WHEEL DRESSING SYSTEM

STOCK DIVISION SINGLE POSITION PNEUMATIC

STOCK DIVISION PROBE

AUTO LOADING CONVEYOR SYSTEM DESIGNED FOR GEARS AND PINIONS (32 STATION)

AUTO LOADING SYSTEM DOUBLE GRIPPER

AUTO TAILSTOCK WITH LIVE CENTER

SBS WHEEL BALANCER

OBERLIN FILTRATION SYSTEM MODEL OPF-4

MIST COLLECTION SYSTEM

OIL CHILLER FOR DRESSING SPINDLE AND COOLANT

LOT AND LOTS OF TOOLING CONSISTING OF WHEELS AND WHEEL HUBS, PART HOLDING FIXTURES, PART GRIPPERS AND SPACERS FOR MOUNTING OF PARTS FOR LOADER, ANY AND ALL ITEMS DESIGNED FOR THIS MACHINE

MACHINE WAS MANUFACTURED NEW IN 2006 AND INSTALLED IN 2007. MACHINE IS IN EXCELLENT RUNNING CONDITION!

THIS MACHINE CAN BE INSPECTED UNDER POWER. PLEASE CALL TO SET UP AN IMMEDIATE INSPECTION!
