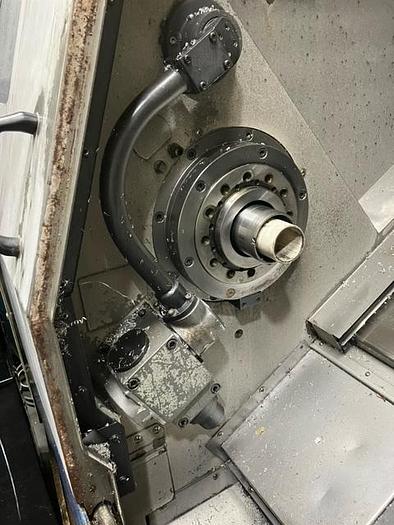

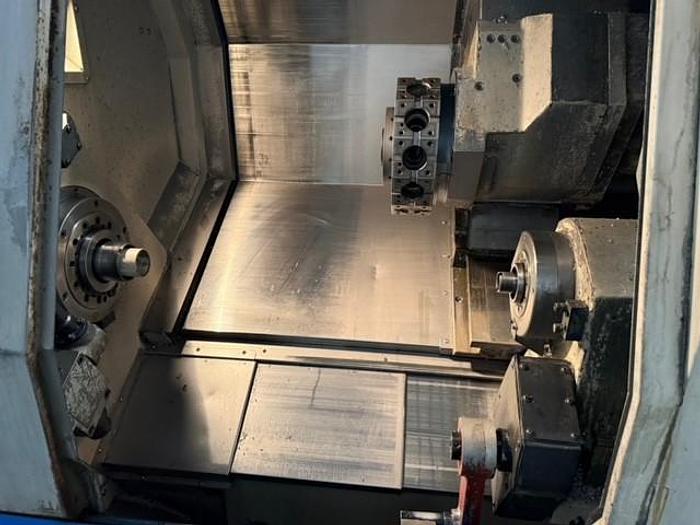

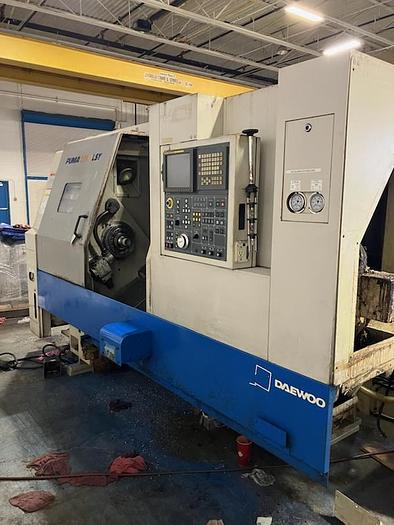

2006 Doosan Puma 2500 LSY

Doosan Puma 2500 LSY Multi Axis CNC Lathe, 2006 – C-Axis on Main & Sub, Y-Axis, Milling,

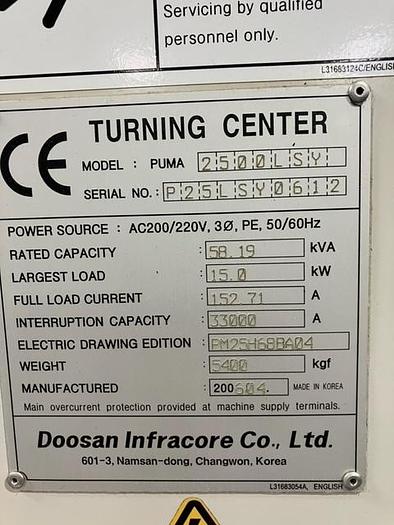

S/N P25LSY0612

Capacity:

Max Turning Diameter: 12.99″

Max Turning Length: 29.53″

Max Bar Capacity: 2.99″

Swing Over Bed: 23.62″

Swing over the Saddle: 21.65″

Travels:

X Axis Travel: 9.84″

Z Axis Travel: 32.68″

Y Axis Travel: 4″

B Axis Travel: 32.68″ ( Sub Spindle )

C Axis: 360° (0.001°) Both Spindle

Feedrate:

Rapid Traverse X Axis: 787 IPM

Rapid Traverse Z Axis: 945 IPM

Rapid Traverse Y Axis: 295 IPM

Rapid Traverse B Axis: 787 IPM

Spindle:

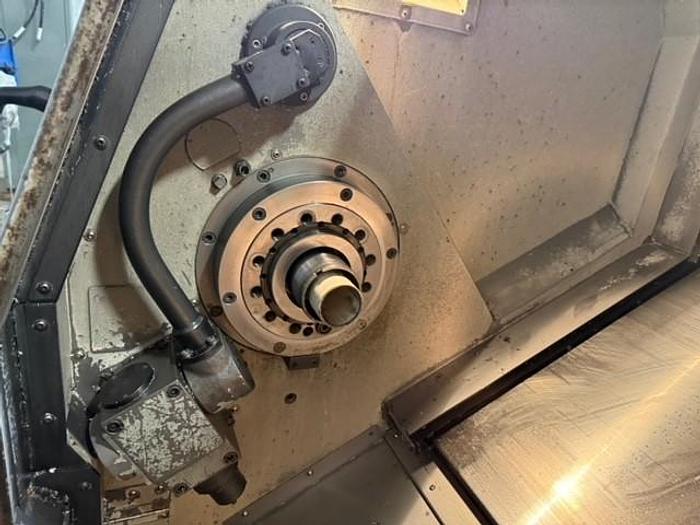

Main Spindle Bore: 3.54″

Sub Spindle Bore: 1.77″

Main Spindle Nose: A2-8

Sub Spindle Nose: A2-6

Main Spindle Speed: 35-3500 RPM

Sub Spindle Speed: 60-6,000 RPM

Main Spindle Power: 22 kw

Sub Spindle Power: 7.5 kw

Live Tool Spindle Motor: 3.7 kw

Turret:

Capacity: 12 Live Stations

Turret Index Time: 0.1 Second

Live Tool Speed: 60-6,000 RPM

General:

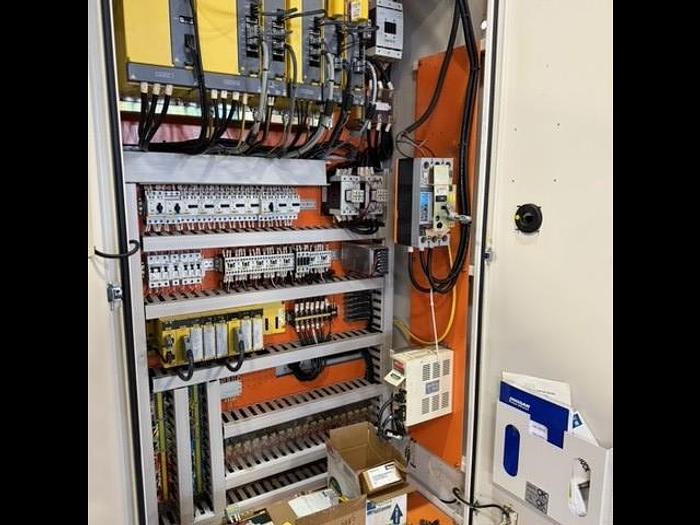

Power: 53 kva, 220v / 3-Phase

Overall Dimensions: 130″ x 67″ x 72″ High

Overall Dimensions: 146″ x 67″ x 72″ High with Chip Conveyor

Weight: 12,500 lbs

Equipped With:

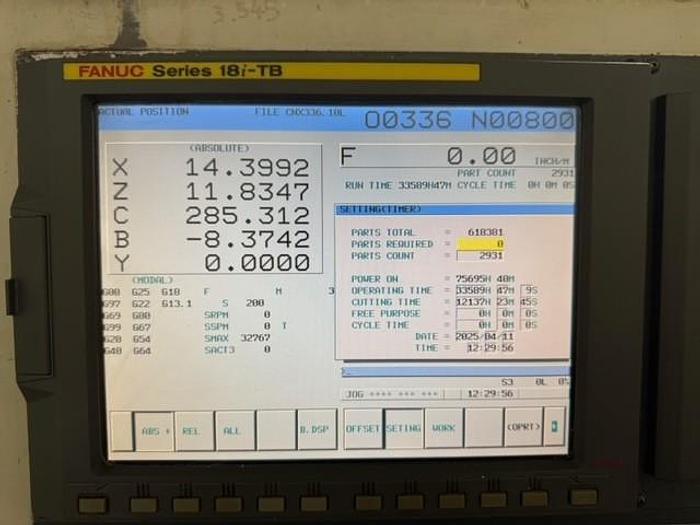

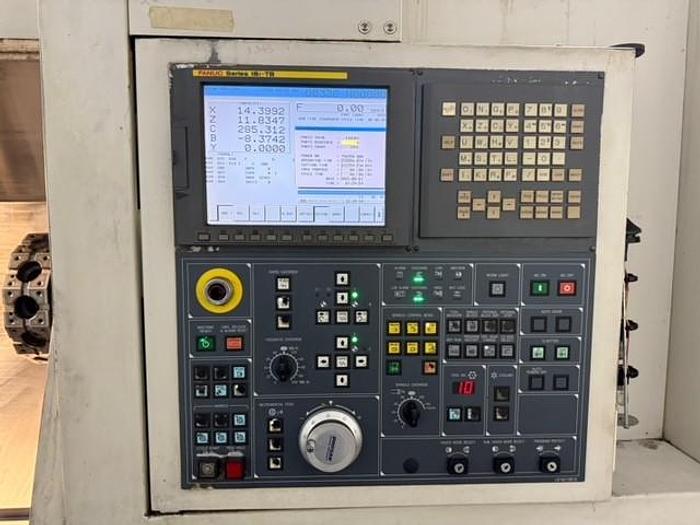

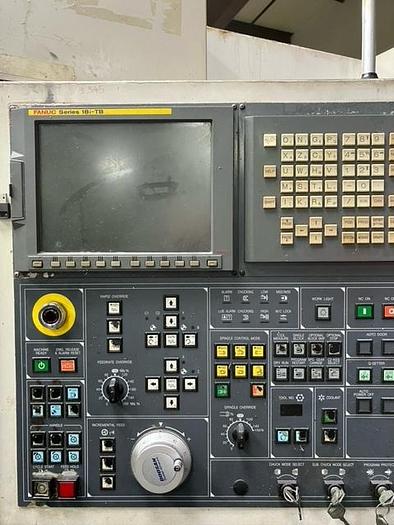

Fanuc 18iTB

10″ Main/6″ Sub

30 HP

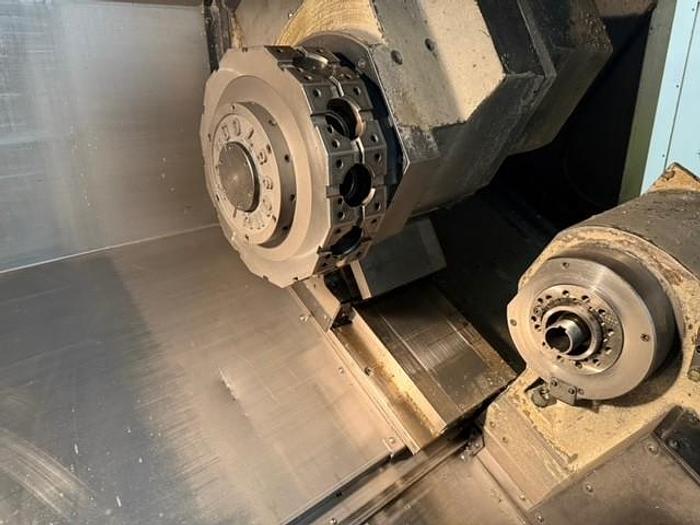

12-Station Turret – Live / Rotary Tools

C-Axis on Main & Sub

Y-Axis

Milling

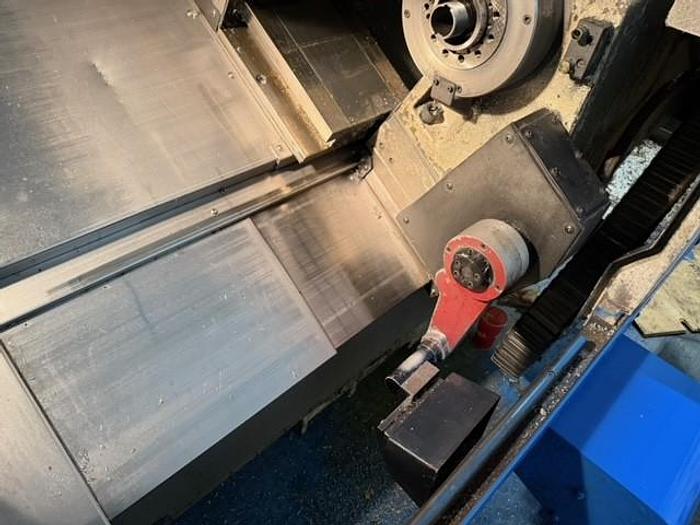

Parts Catcher

Parts Conveyor

Presetter

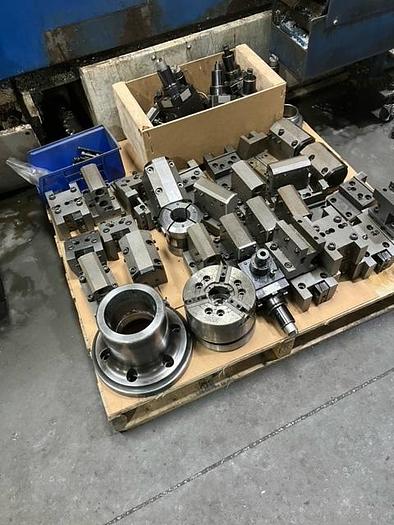

Assorted Tooling
