Hwacheon HI-ECO 10 CNC Turning Center 1998

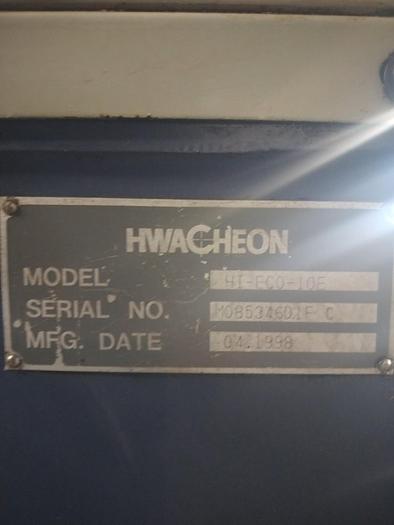

·         serial no.mo8534601 f c

·         General:

·         Power: 220v / 3-Phase

·         Overall Dimensions: 69″ x 56″ x 67″ High

·         Weight: 5000 lbs

·         HWACHEON HI-ECO 10 Specifications:

·         Capacity:

·         Max Turning Diameter: 8.7″

·         Max Turning Length: 16″

·         Max Bar Capacity: 2.0″

·         Swing Over Bed: 15.7″

·         X Axis Travel: 5.1″

·         Z Axis Travel: 17.5″

·         Rapid Traverse X Axis: 630 IPM

·         Rapid Traverse Z Axis: 787 IPM

·         Spindle Nose: A2-6

·         Spindle Bore: 2.4″

·         Spindle Speed: 0 – 4000 RPM

·         Spindle Motor: 15 HP

·         Turret Capacity: 10 Stations

·         Turret Index Time: 1 Second

·

·         HWACHEON HI-ECO 10 Equipped With:

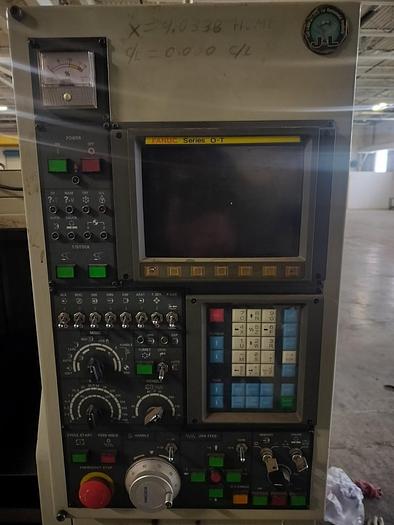

·         Fanuc OT CNC Control

·         collet chuck

·         A2-6 Spindle

·         Coolant System

·         Barfeed Interface

·         RS-232 ports

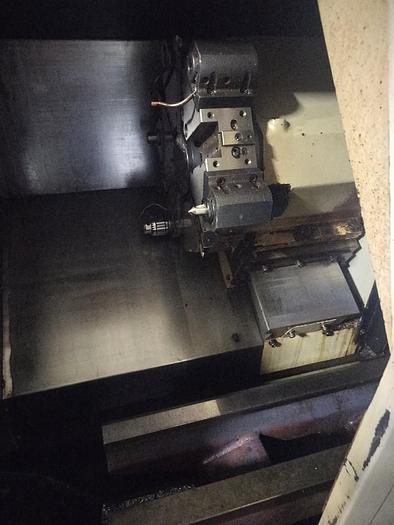

·         10 Station Automatic Turret

·

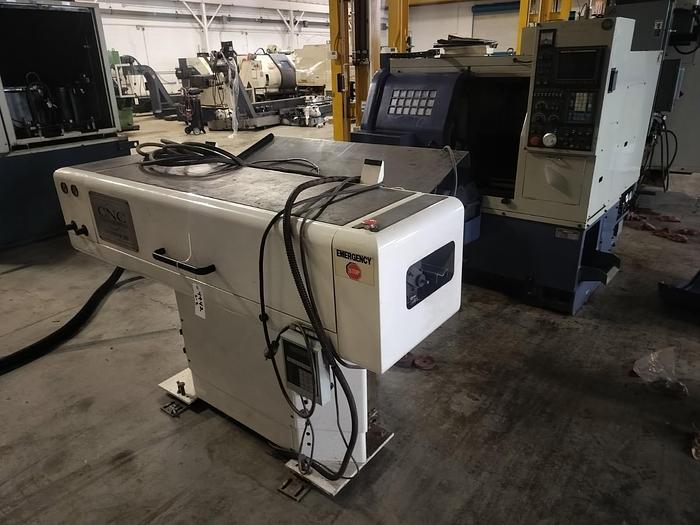

·         bar feeder

·         tool presetter

·         parts catcher
