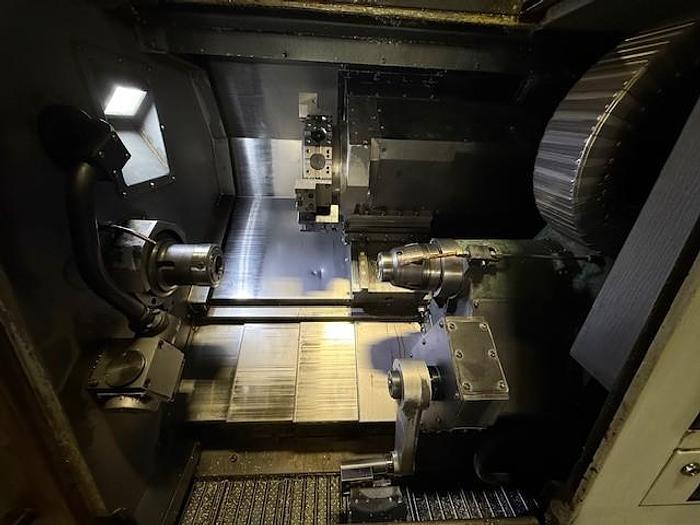

2014 Doosan Lynx 220LMS

DOOSAN LYNX 220 LMS CNC LATHE 2014

• BRAND: DOOSAN
• YEAR: 2014
• MODEL: LYNX 220 LMS
• APPLICATION TYPE: TURNING
• MACHINE TYPE: TURN-MILL CENTRE
•

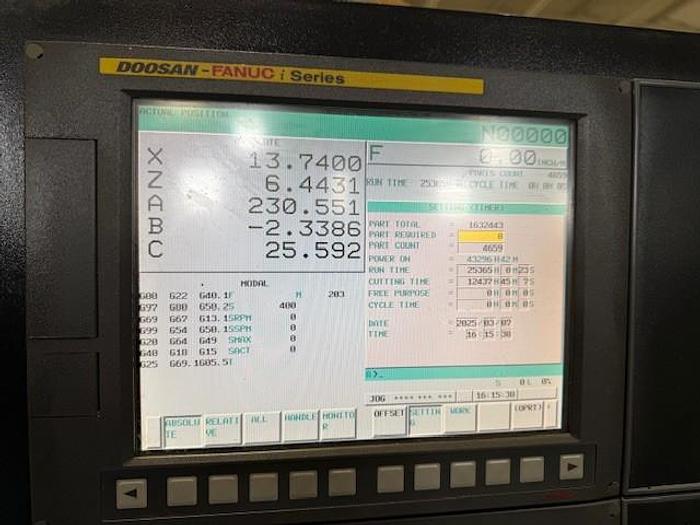

• CONTROL UNIT BRAND: FANUC i

Technical Information - DOOSAN Lynx 220 LMS

GENERAL DATA

• MEASUREMENTS WIDTH: 108”
• MEASUREMENTS DEPTH: 64”
• MEASUREMENTS HEIGHT: 65”
• MACHINE WEIGHT: 7500 lbs

MAIN DRIVE

• SPINDLE SPEED RANGE: 6000 1/MIN
• SPINDLE MOTOR POWER: 11/15 KW

MOVEMENT

• X-AXIS MOVEMENT: 8”
• Z-AXIS MOVEMENT: 21.6”
• B-AXIS MOVEMENT: 21.6”

TURRET

• NUMBER OF TURRETS: 1

TOOLS

• SLOTS IN STORAGE: 12

Additional Equipment

MACHINE BENEFITS

• TECHNICAL MACHINE BENEFITS:
• - SWING OVER BED/SADDLE 23/15
• - MAX. TURNING LENGTH 20”
• - MAX. TURNING DIAMETER 11.8
• - MAIN & SUB SPINDLE SPEED 6000 RPM
• - SPINDLE THRU HOLE DIAMETER 2.4”
• - C AXIS 0. 001 DEGREES (MAIN SPINDLE, SUBSPINDLE)
• chip conveyer
• parts catcher
