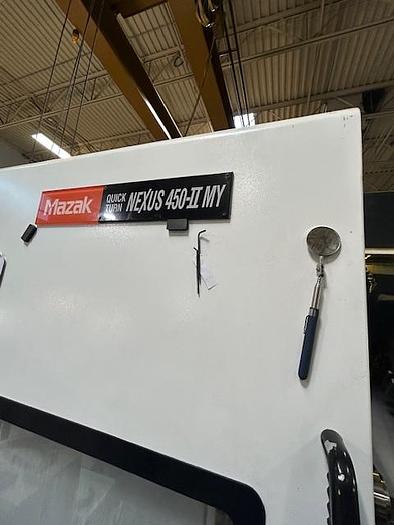

2014 MAZAK Quick Turn Nexus 450-II MY

Mazak Quick Turn Nexus 450-II MY 2014

Ideal for the energy, heavy vehicle, and other large component industries, the Quick Turn Nexus 450-II MY and optional tailstock-mounted Long Vertical Mill, which features a 1,150mm boring bar with a special bolt-on angle head, can deliver deep-hole boring to depths of 1,039mm and perform inside diameter milling operations, such as internal keyways and internal drilling. The machine’s rigid construction also provides high-precision machining over long periods of time.

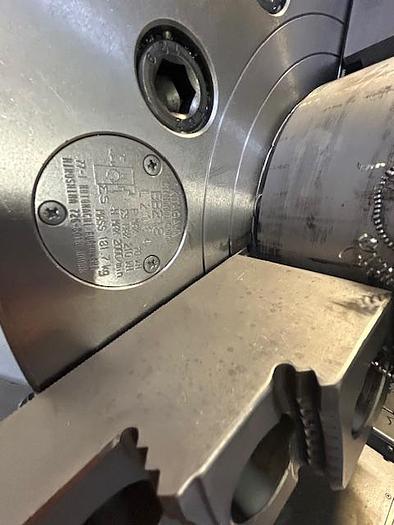

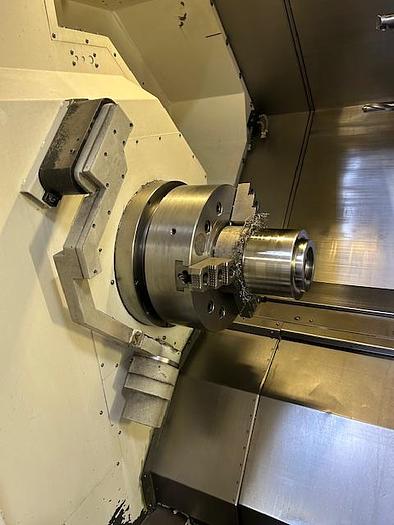

The Quick Turn Nexus 450-II MY’s headstock features a 457mm chuck, mounted on a 40 kW with 2,000rpm integrated spindle motor for heavy-duty metal removal. The spindle also serves as a C-axis, capable of being indexed at 0.0001° increments to accurately position parts for square facing and slotting cuts and precisely drilled holes. Additionally, the C-axis spindle is a full-function CNC controlled axis for milling.

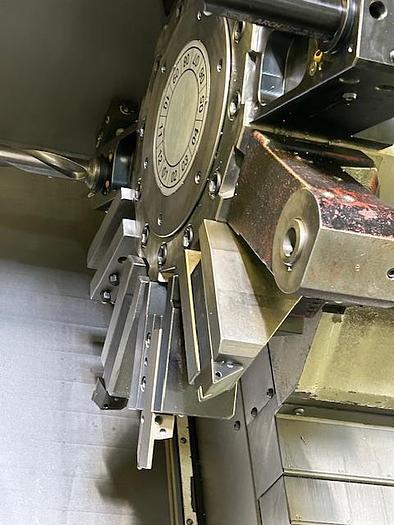

The machine also uses a 12-position drum turret, and 7 kW with 4,000rpm rotary tool spindle for milling, drilling, and tapping operations, allowing many processes to be completed in a single machine cycle.

Misc Tool Holders

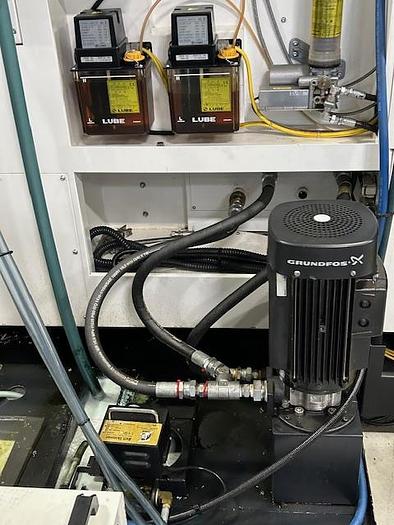

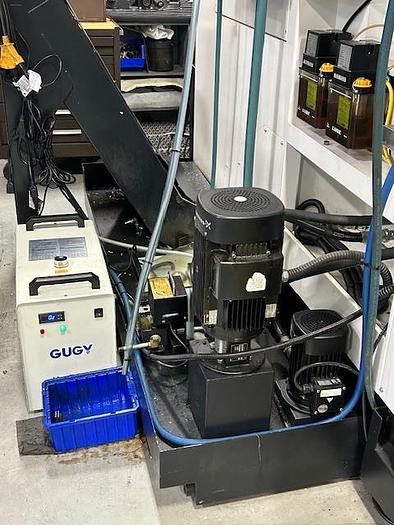

Filtration & Coolant system

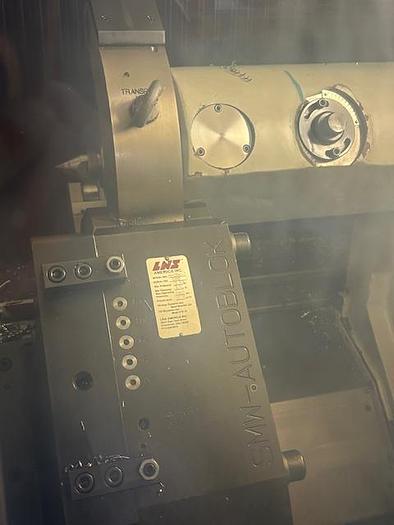

Tailstock mounted deep-hole drilling & milling

Boring bar with angle head

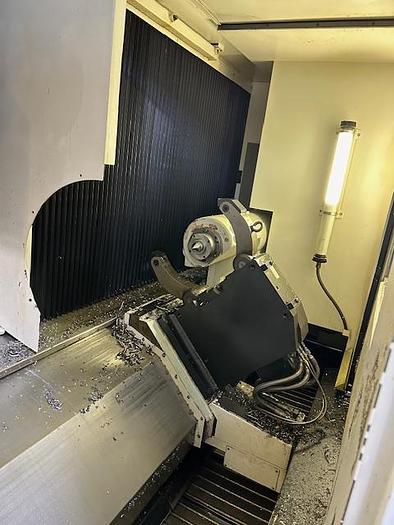

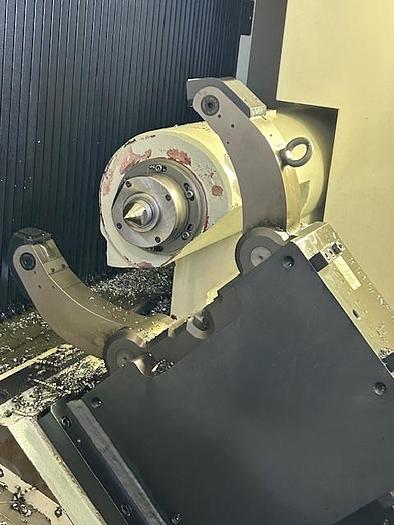

Steady rest

Specifications

Metric US Standard

Max. turning Ø840 mm

X-Axis340 mm

Y-Axis200 mm

Z-Axis3175 mm

Spindle bore187 mm

Load more specifications

Dimensions (Estimate)

Length8500 mm

Width3400 mm

Height3400 mm

Weight21800 kg

Misc Tool Holders

Filtration & Coolant system

Tailstock mounted deep-hole drilling & milling

Boring bar with angle head

Steady rest
