2007 Fadal VMC-3016 FX

FADAL VMC-3016 FX MC CNC VERTICAL MACHINING CENTER NEW:2007

SPECIFICATIONS:

TABLE SIZE: 39"X16"

TRAVELS:

X-AXIS: 30"

Y-AXIS: 16"

Z-AXIS: 20"

MAX WEIGHT ON TABLE: 2736 LBS

SPINDLE NOSE TO TABLE: 4"-24" (OPT. 4"-32")

SPINDLE TAPER: CAT #40

TOOL HOLDERS: 21 ATC BI-DIRECTIONAL

MAIN MOTOR: 22.1 HP

SPINDLE DRIVE MOTOR: AC VECTOR DRIVE

SPINDLE SPEED : 8,000 RPM

CUTTING FEED RATE(X,Y,Z): 800 IPM

RAPID TRAVEL(X/Y/Z): 1000 IPM

AXIS POSITIONING: +/- .0002"

AXIS REPEATABILITY: +/- .0001"

EQUIPPED WITH:

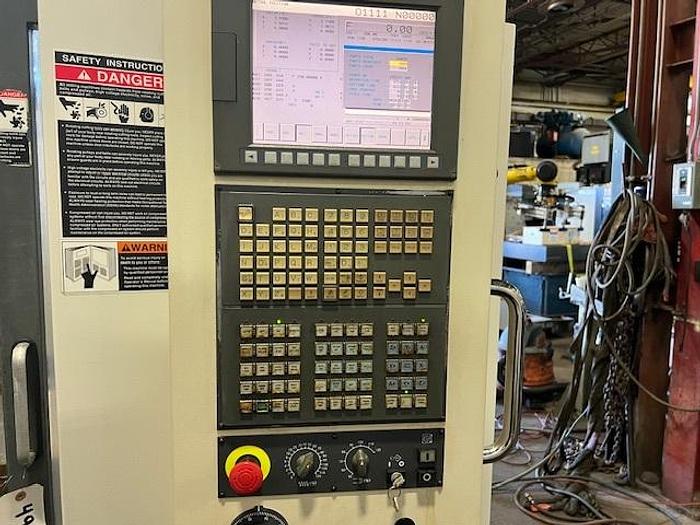

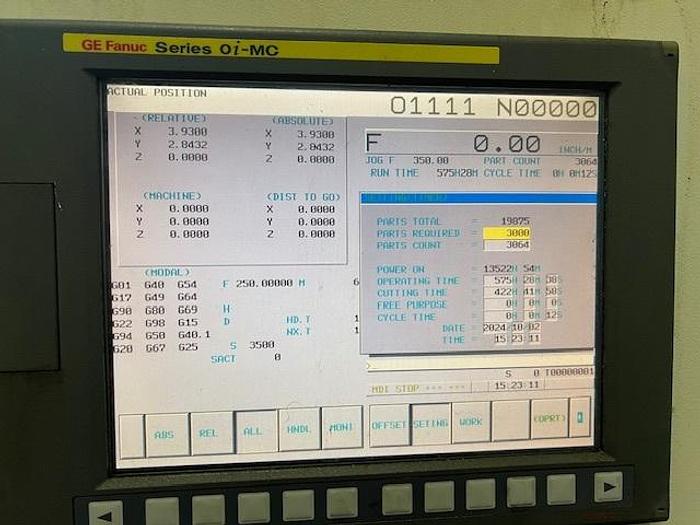

FANUC Oi MC CNC CONTROL
