2013 Haas VF-7

2013 HAAS VF-7 4-AXIS VERTICAL MACHINING CENTER

MODEL.....................: VF-7/40

YEAR NEW..................: 2013

TRAVELS:

X AXIS.......................: 84"

Y AXIS.......................: 32"

Z AXIS.......................: 30"

SPINDLE NOSE TO TABLE........: 34" MAX

SPINDLE NOSE TO TABLE........: 4" MIN

SPINDLE:

HP...........................: 20

MAX SPEED....................: 10000 RPM

MAX TORQUE...................: 90 FT-LBF @ 2000 RPM

2 SPEED GEAR DRIVE...........: YES

TAPER........................: 40

TABLE:

LENGTH.......................: 84"

WIDTH........................: 28"

MAX WEIGHT ON TABLE..........: 4,000 LBS

FEEDRATES:

MAX THRUST X.................: 3400 LBF

MAX THRUST Y.................: 3400 LBF

MAX THRUST Z.................: 5600 LBF

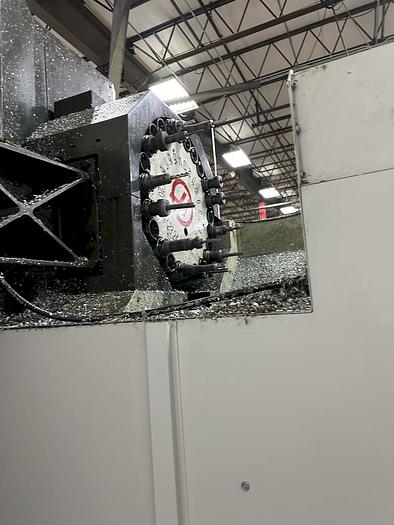

TOOL CHANGER.................: 32 + 1 ATC

RIDGID TAPPING...............: YES

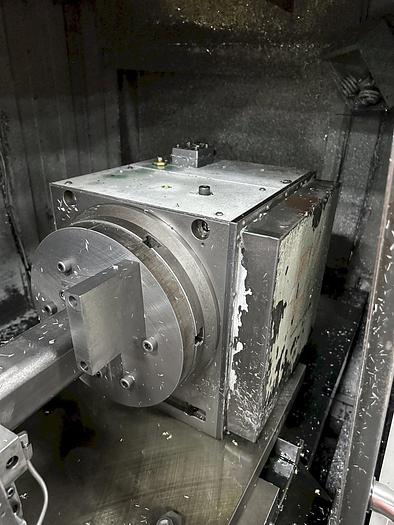

4TH AXIS DRIVE & WIRING......: YES WITH ROTARY

HIGH SPEED MACHINING.........: YES

ROT&SCALING..................: YES

SPINDLE ORIENTATION M19......: YES

WIPS.........................: YES

PROBING......................: YES NO SPINDLE PROBE
