2001 Haas SL-20T

Haas SL-20T 2-Axis CNC Turning Center with Tailstock, Tool Presetter, 2001

Manufacturer: Haas

Model: SL-20T

Age: 2001

CONTROL: HAAS CNC CONTROL

MAX TURNING DIAMETER: 10.3"

MAX TURNING LENGTH: 20"

SPINDLE SPEEDS: 4,000 MAX RPM

SPINDLE DRIVE: 20 HP VECTOR

SPINDLE NOSE: A2-6

HOLE THRU SPINDLE: 3.0"

HOLE THRU DRAW TUBE: 2.06"

TURRET CAPACITY: 12 STATION

TURRET TRAVELS (X,Z): 8.45" / 20"

MAX SWING OVER BED: 23"

MAX SWNG OVER SADDLE: 9.5"

RAPID TRAVERSE RATE (X/Z): 710 IPM

TAILSTOCK?: YES

TURRET INDEX TIME: 1 SECOND PER STATION

TAILSTOCK TRAVEL: 20"

TAILSTOCK QUILL DIAMETER / TAPER: #4 MORSE TAPER

Equipped With:

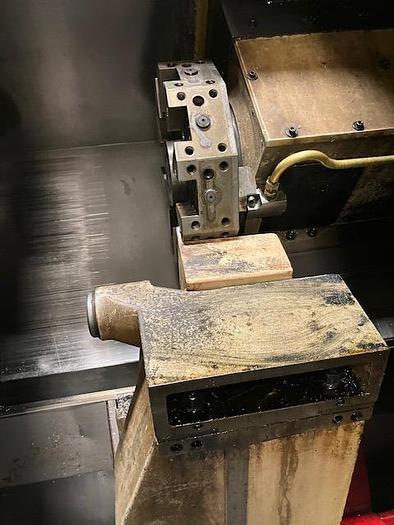

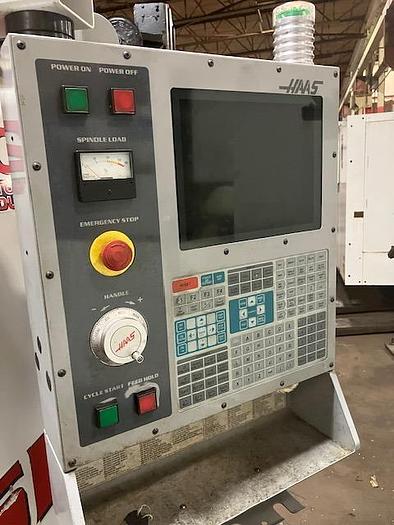

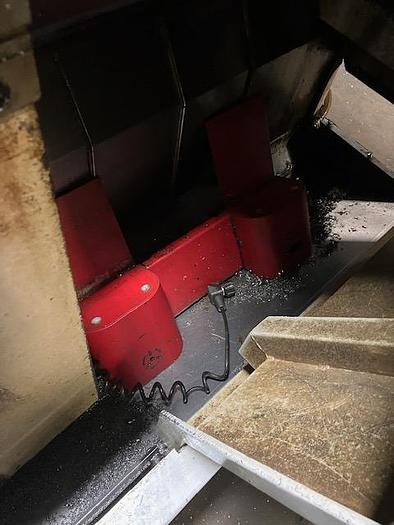

Haas  CNC Control, 12 Station VB20 Turret, 8" 3-Jaw Chuck, Programmable Tailstock,Tool Presetter,, Floppy disc, Chuck Foot Control, High Intensity Lighting, Coolant System with Tank and Pumps, Misc tool holders
