2011 Haas ST-10

HAAS ST10 CNC Lathe 2011

Specs:

Bar Capacity: 1.75"

Chuck Size: 6.5"

Spindle Speed: 6,000 RPM

Spindle Motor: 15 HP

X Axis Travel: 7.88"

Z Axis Travel: 16"

Rapid Rate Z Axis: 1,200 IPM

Turret Tools: 12 Station

Rapid Rate X Axis: 1,200 IPM

Max Turning Dia: 14"

Max Turning Length: 16"

Max Swing: 25.25"

Max Part Diameter 16.5"

Max Thrust X 3300 lbf

Max Thrust Z 3300 lbf

Spindle Nose A2-5

Max Torque 75 ft-lbf

Spindle Bore 2.31"

Drive System Direct Speed

Coolant Cap 30 gal

Dimensions: 126" x 70" x 80"

Weight: 7,900 LBS

Options:

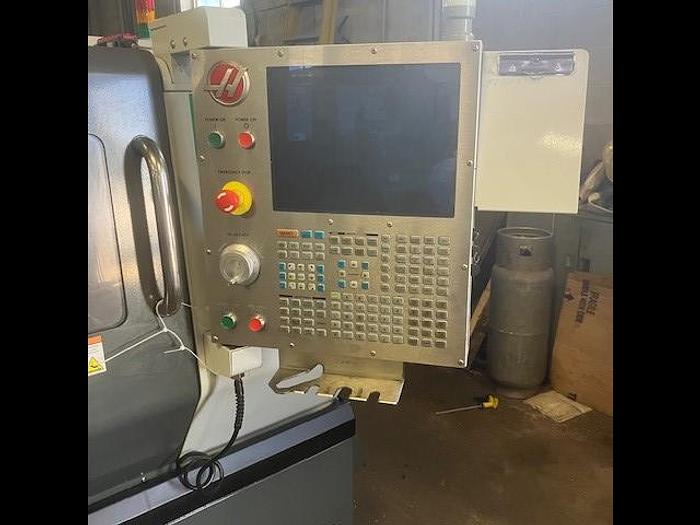

HAAS CNC Control

Tool Eye

Coolant Tank
