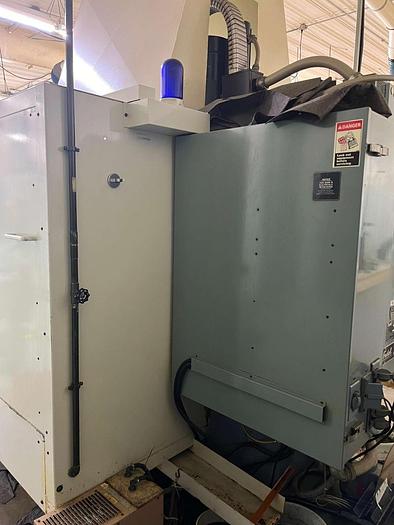

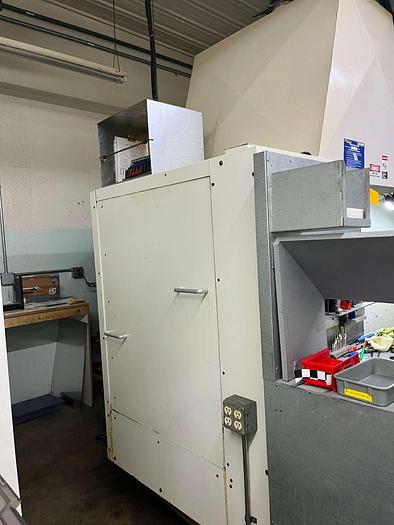

1988 Fadal VMC-40

FADAL VERTICAL MACHINING CENTER

MODEL: VMC 40 904-1

S/N: 8809739

YEAR: 1988

TRAVELS

22″ LONGITUDINAL (X AXIS)

16″ CROSS (Y AXIS)

20″ VERTICAL (Z AXIS)

400 IPM RAPID FEED RATE (X, Y, Z)

16″ SPINDLE CENTER TO COLUMN

4″ MIN. – 24″ MAX. SPINDLE TO TABLE

21 AUTOMATIC TOOL CHANGER

ATC, TOOL SELECTION – RANDOM

750 LBS. MAX WEIGHT ON TABLE

EQUIPPED WITH

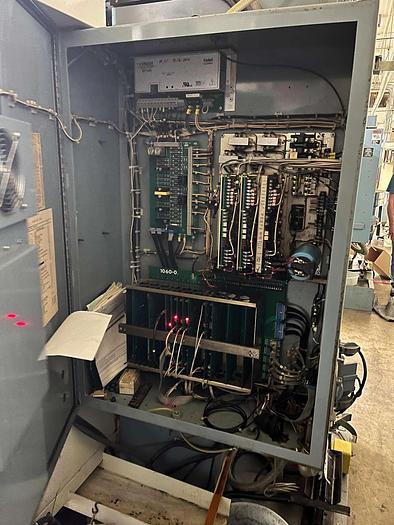

FADAL CNC 88 CONTROL

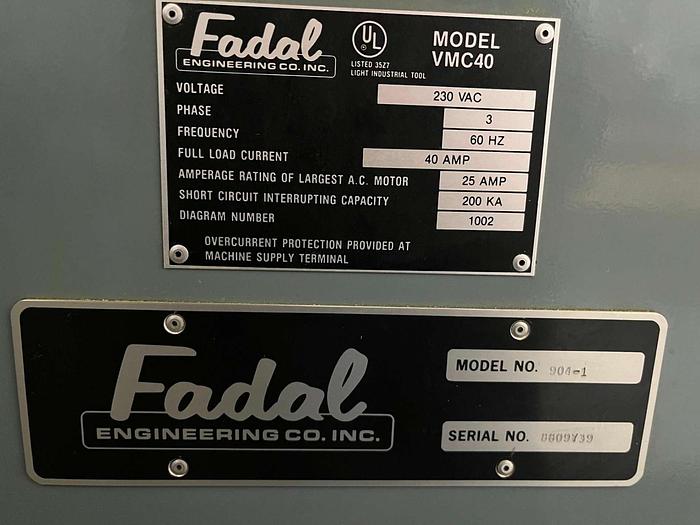

VOLTAGE 230 V / 3 PHASE / 60HZ / 40 AMP

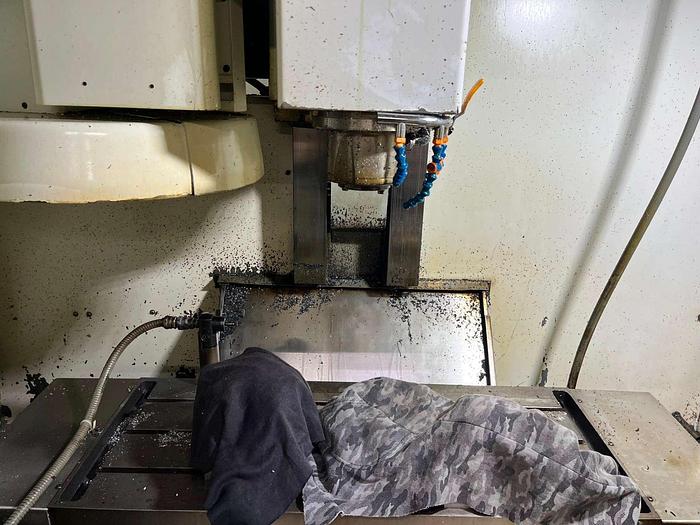

FULL ENCLOSURE

COOLANT TANK

TOOL STATION: 21

CONTROL: CNC 88

SPINDLE TAPER: CAT 40

MOTOR: 230 VAC / 3 PHASE, 60 HZ

FULL LOAD CURRENT: 40 AMP

AMPERAGE RATING OF LARGEST AC MOTOR: 25 AMP

SHORT CIRCUIT INTERRUPTING CAPACITY: 200 KA
