1997 Miyano BNE-46S

MIYANO BNE-46S MULTI-AXIS LIVE SPINDLE CNC LATHE  W/Sub Spindle

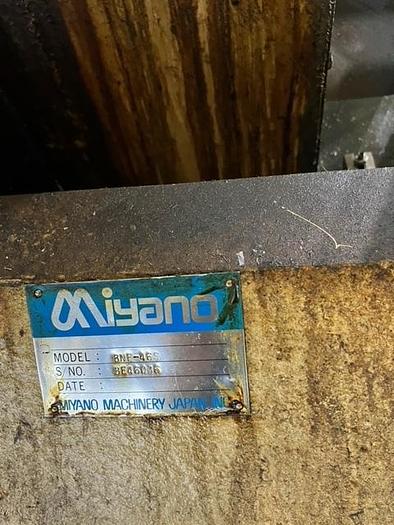

S/N: BE46036

Year 1997

SPECIFICATIONS:

MAX. O.D.: 2"

MAX. LENGTH: 3"

MAX SWING: 20" UPPER/17" LOWER

SPINDLE NOSE: (MAIN & SUB) FLAT

SPINDLE SPEEDS (MAIN): 40 TO 4000 RPM

SPINDLE SPEEDS (SUB): 170 TO 5000 RPM

SPINDLE MOTOR: 15 HP MAIN

5 HP SUB

TURRET INDEX TIME: .05 SEC./POS

MAX SLIDE STROKE X-AXIS: 4.7" UPPER/3.35" LOWER

MAX SLIDE STROKE Y-AXIS: 11" UPPER/3.74" LOWER

RAPID RATES: 472 IPM UPPER/378 IPM LOWER

MACHINE WEIGHT: 12,300 LBS.

MACHINE DIMENSIONS: 102" X 67" X 70"

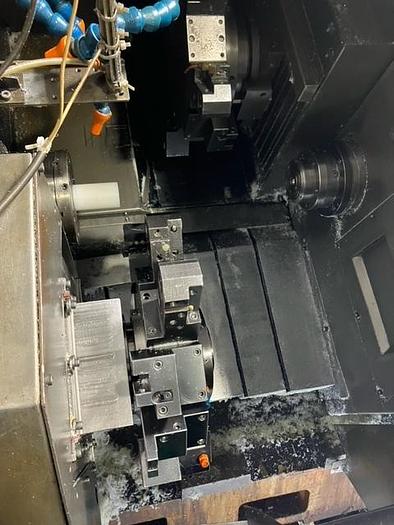

TOOLS: 12-POSITION TURRET TOOL CHANGER

EQUIPPED WITH:

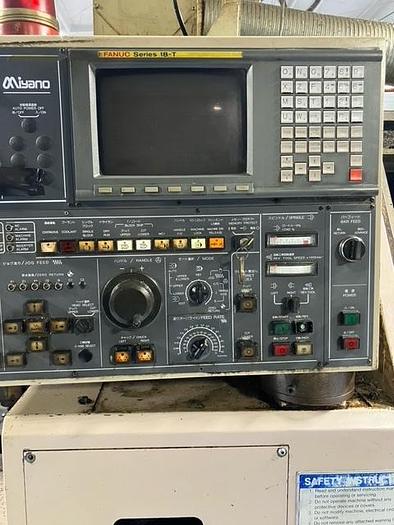

FANUC SERIES 18-T  CONTROL

COOLANT TANK

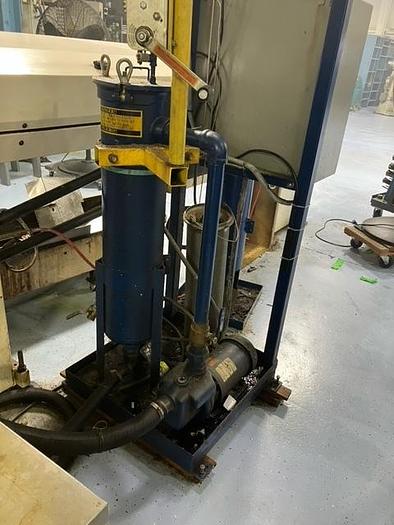

HYDROLIC UNIT HIGH PRESSURE

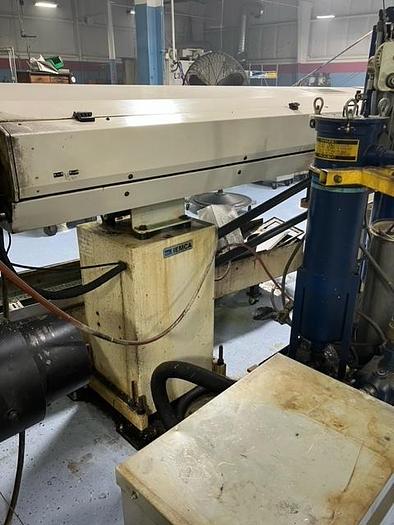

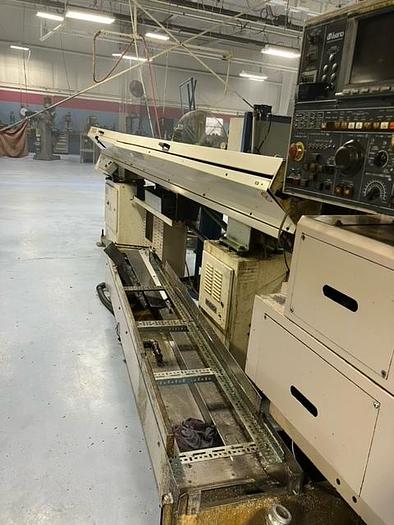

IEMCA BARFEEDER
