1995 Daewoo Puma 8S

Daewoo Puma 8S CNC Lathe,

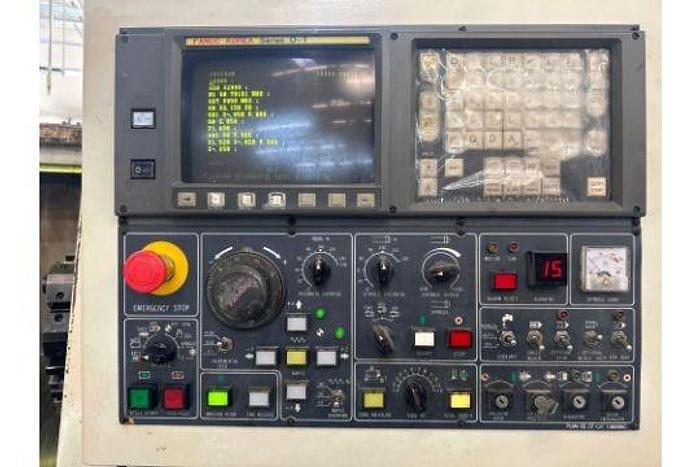

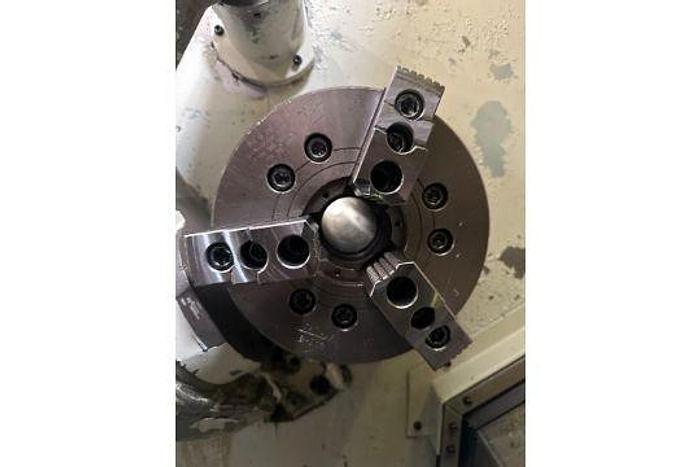

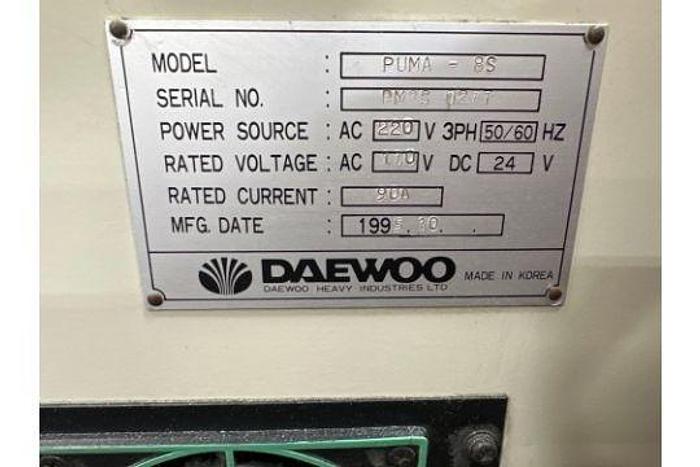

Fanuc 0-T Control, 8" Kitagawa 3-Chuck, Tool Presetter, Tailstock, s/n PM8S-0277, 1995

Specifications:

Capacity:

Max Turning Diameter: 14.6″

Max Turning Length: 20.7″

Max Bar Capacity: 2.05″

Swing Over Bed: 19.7″

Distance Between Centers: 21.9″

X Axis Travel: 8.3″

Z Axis Travel: 21.7″

Rapid Traverse X Axis: 630 IPM

Rapid Traverse Z Axis: 787 IPM

Spindle Nose: A2-6

Spindle Bore: 2.4″

Spindle Speed: 0 – 4000 RPM

Spindle Motor: 25 HP

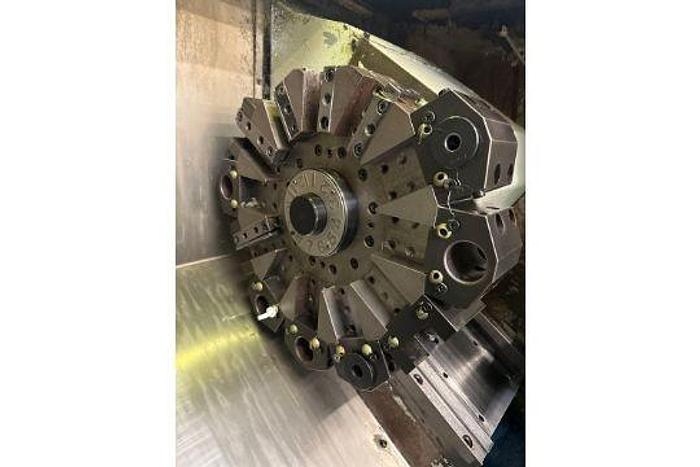

Turret Capacity: 12 Stations

Turret Index Time: 1 Second

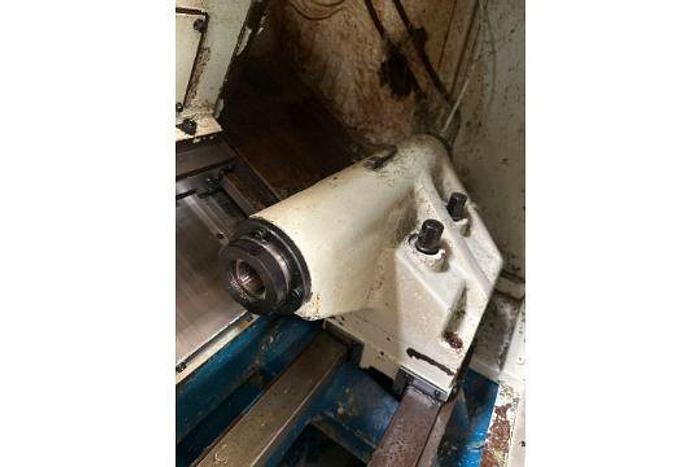

Tailstock Taper: MT-4

Tailstock Quill Dia.: 3.1″

Tailstock Quill Travel: 4.0″

General:

Power: 21 kva, 220v / 3-Phase

Overall Dimensions: 114″ x 76″ x 77″ High

Weight: 11000 lbs
