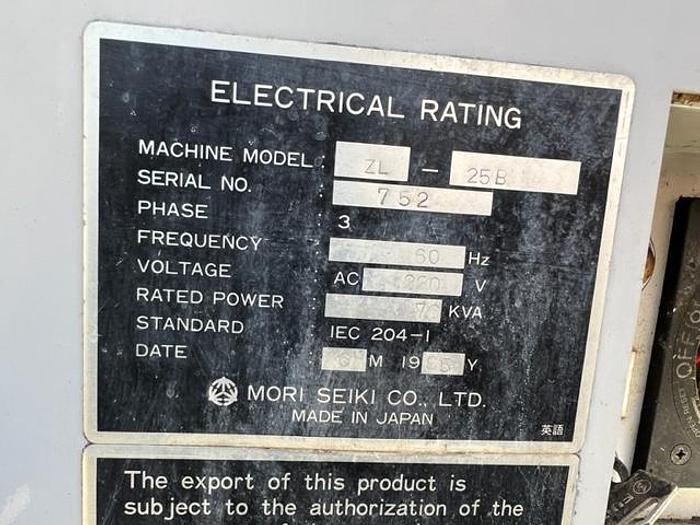

1996 Mori Seiki ZL-25B/1000

Mori-Seiki ZL25B1000 CNC 4-Axis Machining Center

Catalog Specifications:

Swing over bed:  20.5”

Swing over cross slide:  13.8”

Distance between centers:  45.1”

X Axis travel (upper turret): 6.3”

X Axis travel (lower turret): 5.7”

Z Axis travel:  (upper turret):  42.9”

Z Axis travel:  (lower turret):  42.9”

Rapid traverse rate X/Z Axes:  472 IPM /   590 IPM

Spindle nose:  A2-6

Spindle Bore:  3.1”

Bar capacity, Max:  2.68”

Spindle motor:  25HP

Spindle speeds:  35 – 3,500 RPM

Turret tool capacity (Upper / Lowe)r:  10 Station Upper turret / 8 Station lower turret

Tailstock quill taper / diameter:  MT #4 / 4.3” dia

Tailstock body / quill travel:   42.9 travel / 3.9” diameter

Physical dimension, approx:   178” L x 70” W x 74” H

Weight, approx:  18,600 lbs

Equipped with:  (subject to buyer confirmation)

Fanuc 16TTB CNC control

RS-232 port interface for DNC operation

Programmable tailstock

16C Collet Chuck

Chip Conveyor

Coolant system with tank and pump
