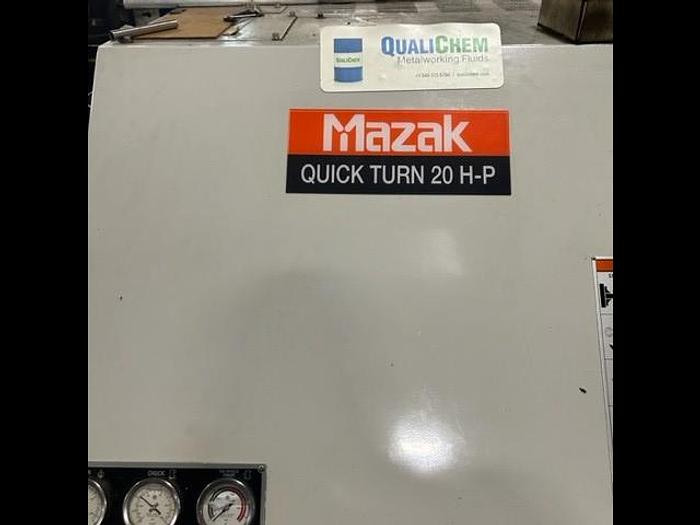

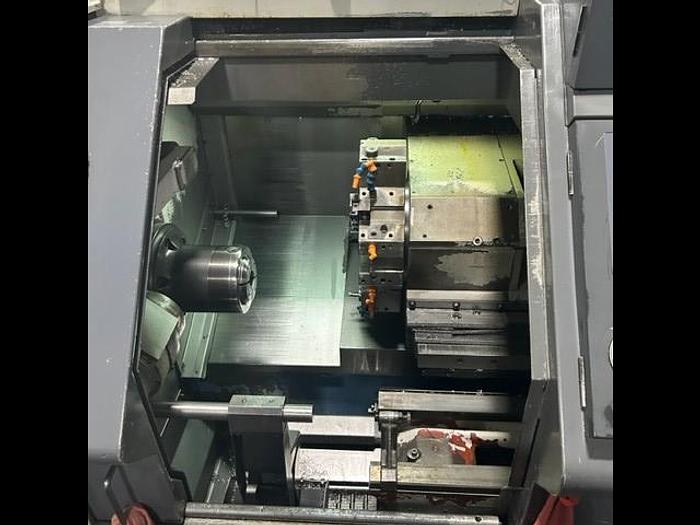

1997 MAZAK QT-20-HP

Mazak QT-20-HP CNC Lathe, 1997

S/N 127035

Chuck Size: 8″

Maximum Swing: 17.32″

Maximum Cutting Diameter: 11.81″

Maximum Cutting Length: 17.5″

X-Axis Travel: 7.125″

Z-Axis Travel: 20.125″

Spindle Speeds: 50 – 5,000 Rpm

Spindle Nose: A2-6″

Spindle Bore: 2.4″

Bar Capacity: 2″

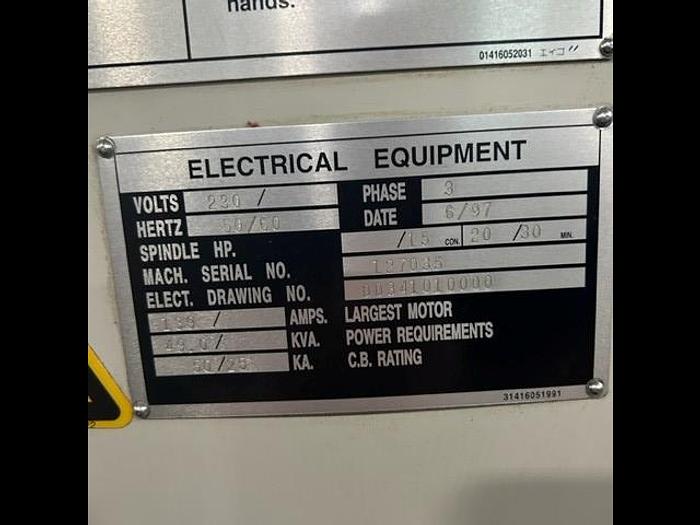

Spindle Motor: 20 Hp

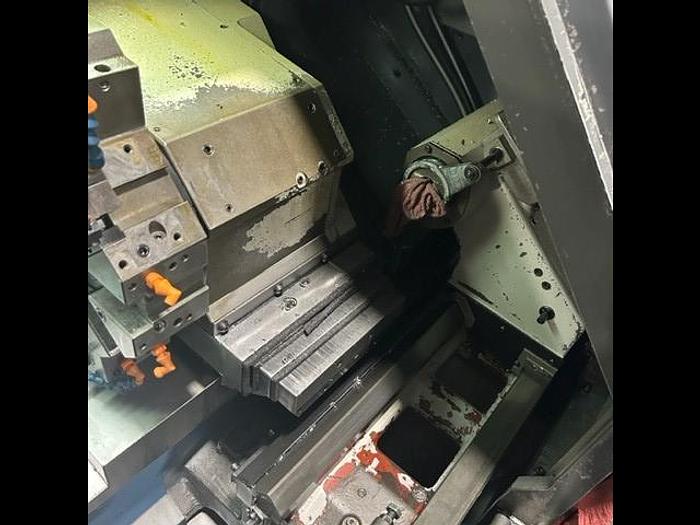

Number of Turret Positions: 8

Rapid traverse rates x/z: 1200 iPM / 1300 IPM

Machine dimensions LxWxH: 105″ x 68.5″ x 73.1″

Machine weight: 9,370 lbs.

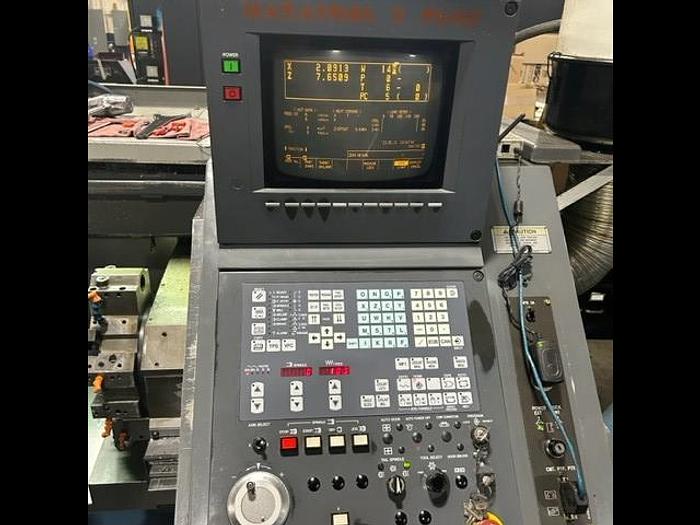

Machine control: Mazatrol T-Plus Control

Equipped With:

3 Jaw CHUCK

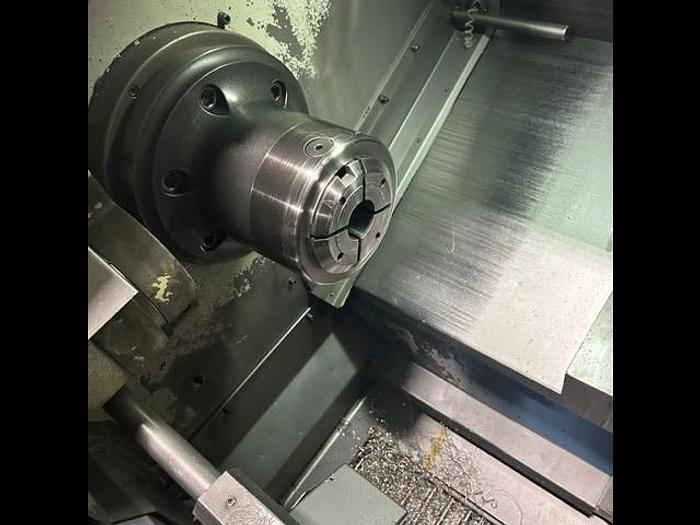

Collet Chuck

Tailstock

MIST COLLECTOR

TOOL EYE

Spindle Tubes

Coolant Tray

Transformer

CHIP CONVEYER
