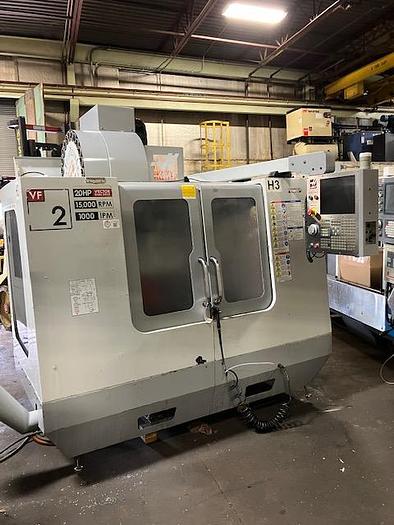

2008 Haas VF-2D

Haas VF2D Vertical Machining Center 2008

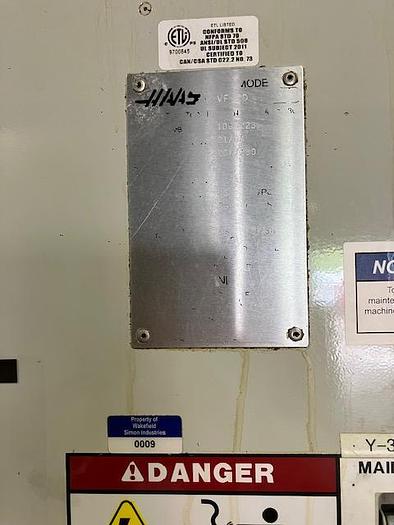

S/N 1064223

Specs:

X Axis Travel: 30"

Y Axis Travel: 16"

Z Axis Travel: 20"

Rapid Rate X Axis: 1,000 IPM

Rapid Rate Y Axis: 1,000 IPM

Rapid Rate Z Axis: 1,000 IPM

Max Table Load: 3,000 LBS

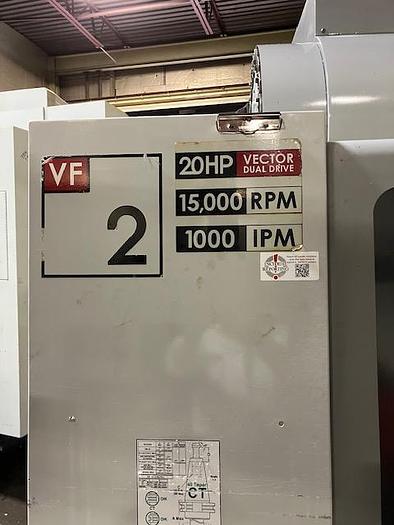

Spindle Motor: 20 HP

Spindle Speed: 15,000 RPM

Spindle Taper: 40 CT

Tool Changer: 21 ATC

Max Torque 90 ft-lbf

Max Thrust X 2550 lbf

Max Thrust Y 2550 lbf

Max Thrust Z 4200 lbf

Max Tool Diameter 3.5"

Max Tool Weight 12 lb

Tool-to-Tool (avg) 4.2 s

Chip-to-Chip (avg) 4.5 s

Table Size: 36" x 14"

Dimensions: 101" x 98" x 102"

Weight: 7,800 LBS

Options:

Rigid Tapping

Programmable Coolant

Visual Quick Code

15k RPM Spindle

Spindle Orientation

Sidemount Tool Changer

Chipauger and schutte
