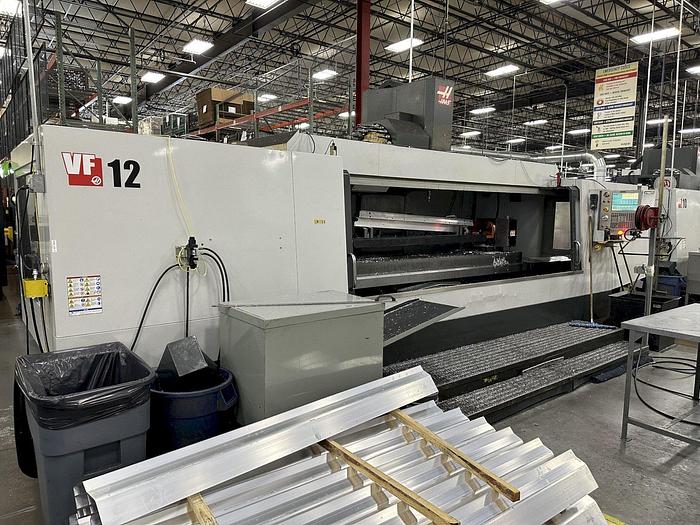

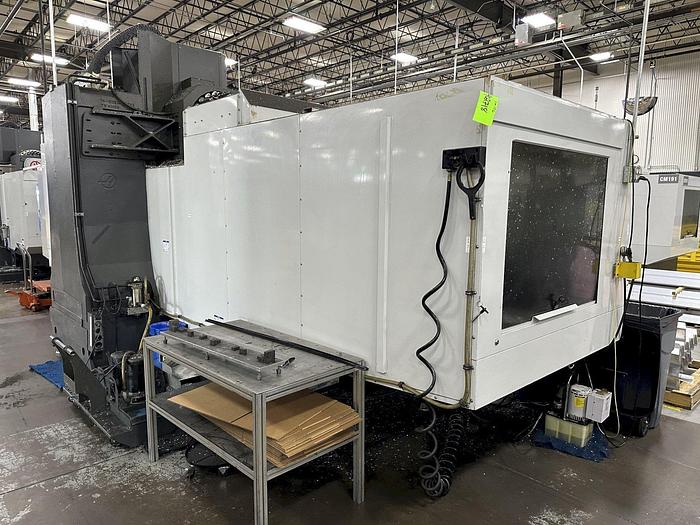

2013 Haas VF-12

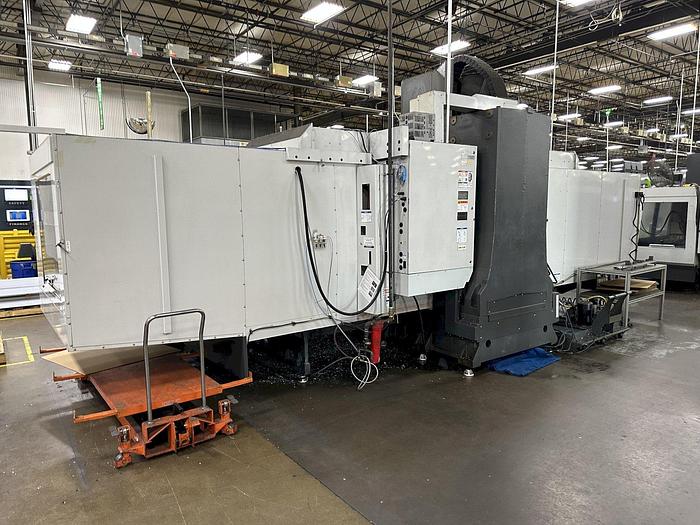

HAAS VF-12/40 CNC VERTICAL MACHINING CENTER. (NEW IN 2013)

TRAVELS:

X AXIS..............................: 150"

Y AXIS..............................: 32"

Z AXIS..............................: 30"

DRIVE SYSTEM........................: INLINE

SPINDLE:

SPINDLE NOSE TO TABLE MAX...........: 34"

SPINDLE NOSE TO TABLE MIN...........: 4"

SPINDLE RPM.........................: 10,000

MAX TORQUE..........................: 90 FT LB @ 2000 RPM

TAPER...............................: 40

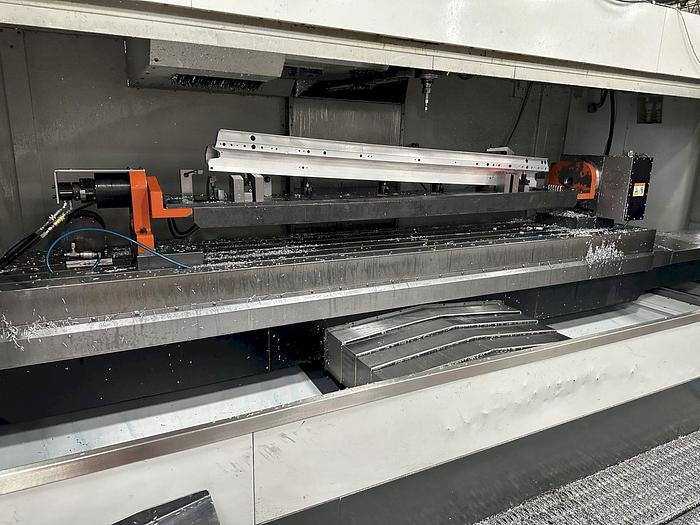

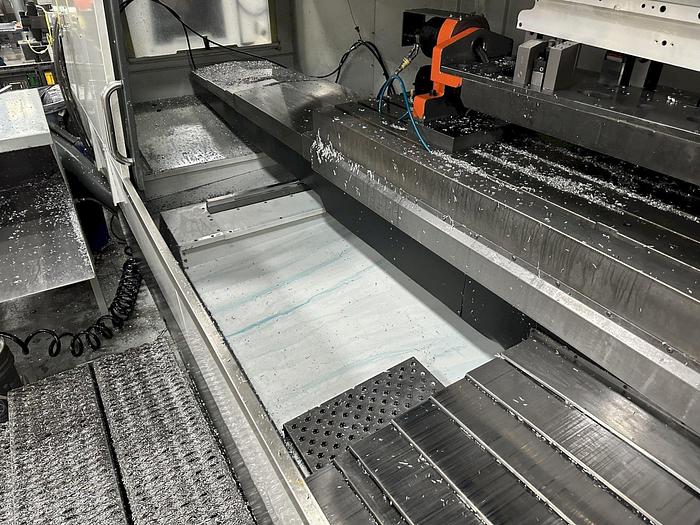

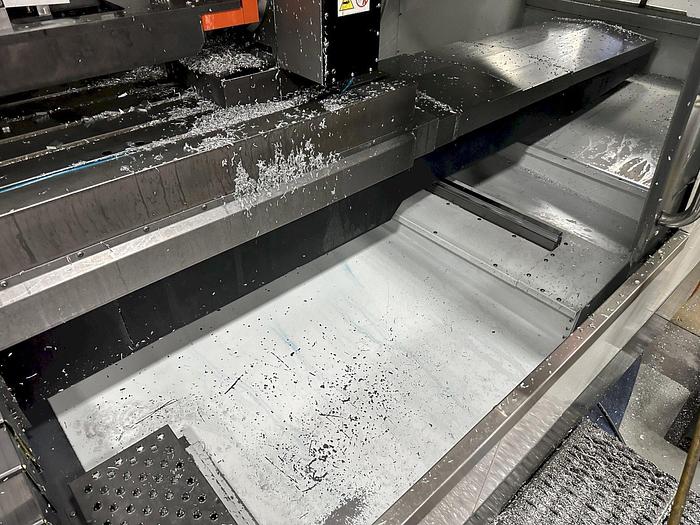

TABLE:

LENGTH..............................: 150"

WIDTH...............................: 28"

MAX WEIGHT ON TABLE.................: 4,000 LBS

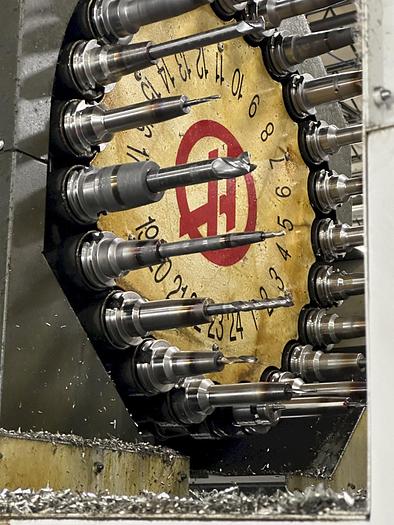

TOOL CHANGER........................: 24+1

FEEDRATES:

MAX CUTTING.........................: 360 IPM

RAPIDS ON X.........................: 360 IPM

RAPIDS ON Y.........................: 600 IPM

RAPIDS ON Z.........................: 600 IPM

4TH AXIS DRIVE & WIRING.............: YES

WIPS................................: YES

PROBE...............................: YES,

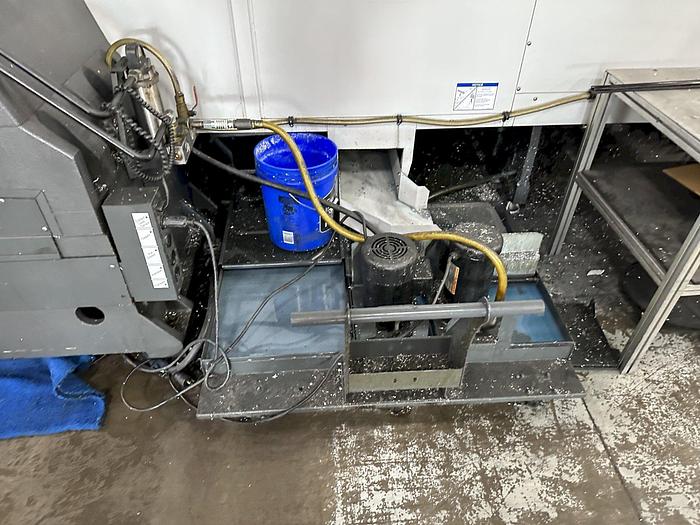

THROUGH SPINLE COOLANT..............: YES

PROGRAMMABLE COOLANT................: YES

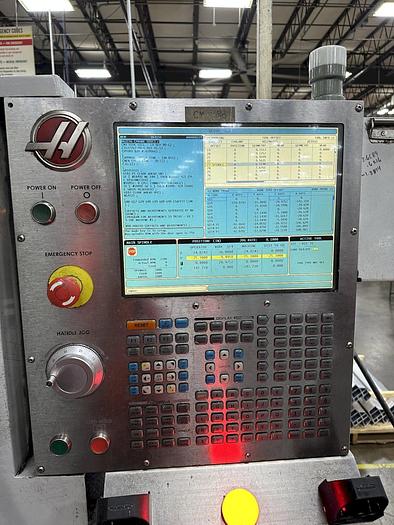

CONTROL OPTIONS:

EPFDM...............................: YES

RJH-C...............................: YES

RJH-C...............................: YES

HOURS:

SYSTEM TIME.........................: 605

SERVO TIME..........................: 851

MOTION TIME.........................: 10,396

SPINDLE TIME........................: 9,759
