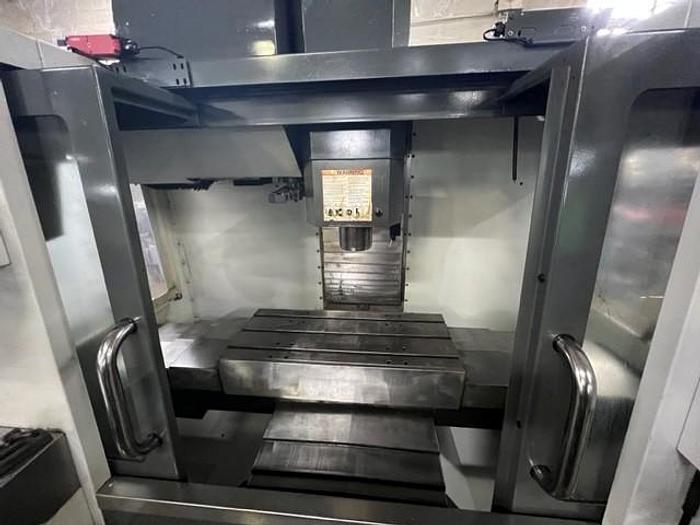

2013 Haas VF-2SS

2013 HAAS VF2SS

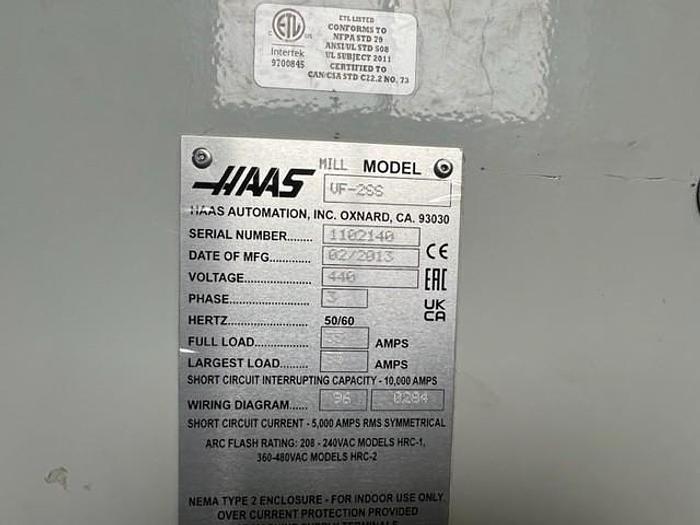

S/N 1102140

Specs:

X Axis Travel: 30"

Y Axis Travel: 16"

Z Axis Travel: 20"

Rapid Rate X Axis: 1,400 IPM

Rapid Rate Y Axis: 1,400 IPM

Rapid Rate Z Axis: 1,400 IPM

Table Size: 36" x 18"

Max Table Load: 1,500 LBS

Spindle Motor: 30 HP

Spindle Speed: 12,000 RPM

Spindle Taper: 40 BT

Tool Changer: 24 ATC

Max Cutting 833 ipm

Max Weight 1500 lb

Max Thrust X 1995 lbf

Max Thrust Y 1995 lbf

Max Thrust Z 3085 lbf

Chip-to-Chip 3.6 s

Coolant Cap 55 gal

Amps 3 Phase 35A (High)

Dimensions: 106" x 101" x 101"

Weight: 7,800 LBS

Options:

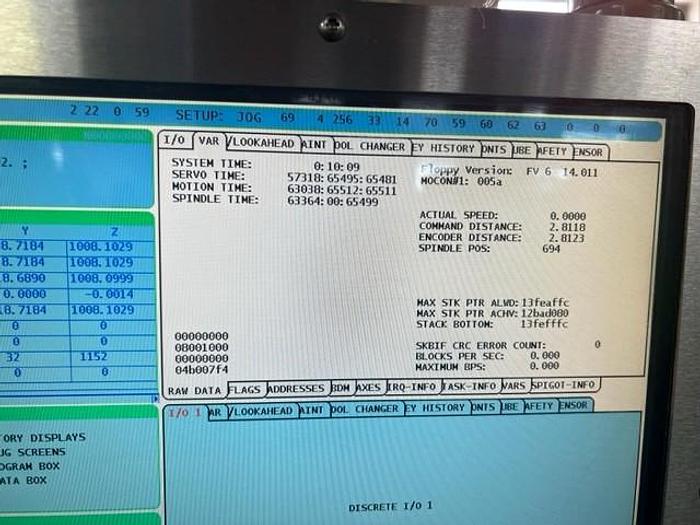

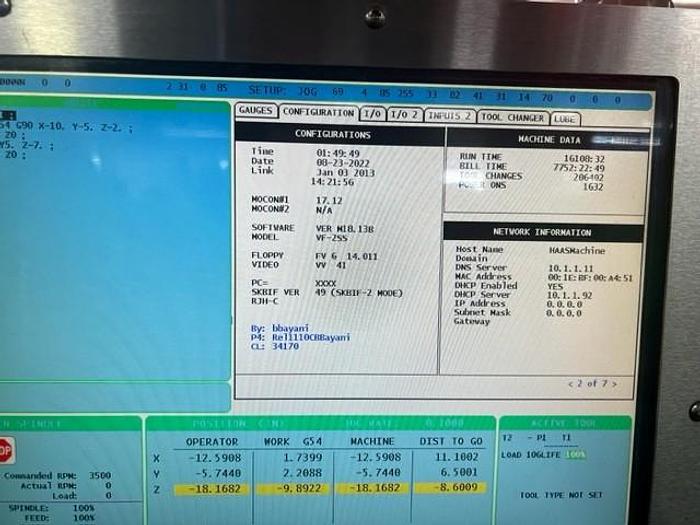

Haas CNC Control

COOLANT THROUGH THE SPINDLE

Rigid Tapping

24 Side ATC

High Speed Machining

Macros

12,000 RPM Spindle Upgrade

Rotation and Scaling

1 GB Memory

4TH AXIS DRIVE

380 to 480 VOLT
