2000 Bridgeport Series I - 9" x 48"

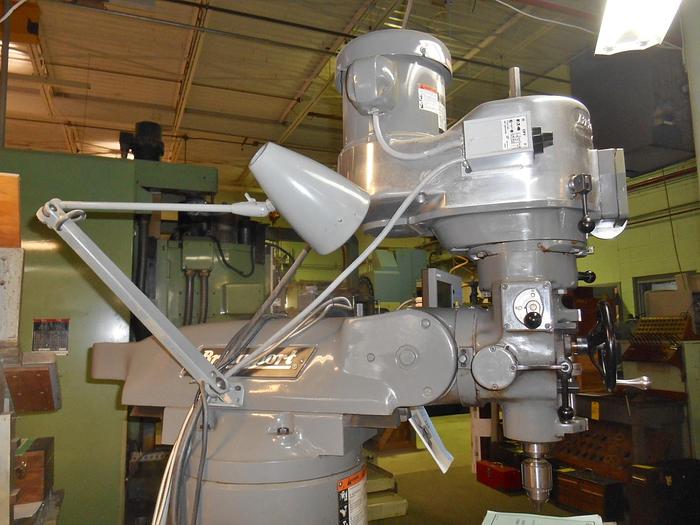

Bridgeport Series I - 9" x 48" 3HP Variable Speed Milling Machine

Serial number 282955    Year new:  2000 (approximate)

Series I Standard Features Include:

• Chrome dovetailways and gibbs
• Work light
• Acu-Rite 2-Axis digital readout
• Power feed on table

SPECIFICATIONS

Range:

• Table Travel (X-Axis) 36 in. (914 mm)
• Saddle Travel (Y-Axis) 12 in. (305 mm)
• Quill Travel 5 in. (127 mm)
• Knee Travel (Z-Axis)* 16 in. (406 mm)
• Ram Travel 12 in. (305 mm)
• Throat Distance (min.) 6.75 in. (171 mm)
• Throat Distance (max.) 18.75 in. (476 mm)
• Table to Spindle Nose Gage Line:
• - (min.) 2.5 in. (64 mm)
• - (max.) 18.25 in. (463 mm)

Table:

• Overall Size 49 x 9 in. (1245 x 299 mm)
• Working Surface 49 x 9 in. (1245 x 229 mm)
• T-slots Centers 3 @ 2.5 in. (64 mm)
• T-slot Size 0.625 in. (16 mm)
• Height above Floor (max.) 47.25 in. (1200 mm)
• Weight of Workpiece (max.) TBD

Spindle (2J Head):

• AC Power Rating:
• - (30 min. duty cycle) 3 hp (2.2 kW)
• - (continuous) 2 hp (1.5 kW)
• Spindle Taper R-8
• Tooling R-8 Collets
