1997 Bridgeport Romi EZ Path II

Bridgeport Romi EZ Path II

1997

Maximum swing:             16.5"

Maximum swing over cross slide:             8.6"

Distance between centers:         40"

X-axis travel:     8.6"

Z-axis travel:      40"

Spindle nose / spindle bore:       A2-5" / 1.97"

Spindle speeds: 37.5-3,500 rpm 24 Speeds Geared Head

Spindle motor: 8 hp

Turret type:       Tool Post

Tailstock quill travel:      6.3"

Tailstock bore taper:      #4 MT

Machine dimensions lxwxh:       94"x55"x71"

Machine weight:             4,000 lbs

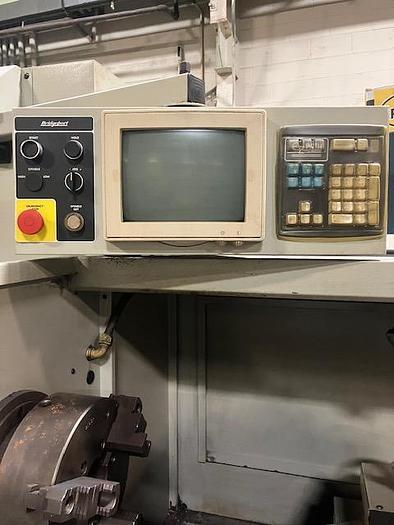

2-Axis Teach Type Control

10" 6-Jaw Manual Chuck

Electronic Hand Wheels

Tailstock

Inch/Metric Threading

Automatic Lubrication System
