2021 Haas VF-2SS

HAAS VF-2SS CNC 4-AXIS VERTICAL MACHINING CENTER, NEW 2021

Specifications

X 30.0

Y 16.0

Z 20.0

Power 30.0

RPM 12000.0

# ATC 30.0

Taper BT 40

Table-W 14.0

Table-L 36.0

# Axis 4.0

TRAVELS S.A.E METRIC

X Axis 30.0 in 762 mm

Y Axis 16.0 in 406 mm

Z Axis 20.0 in 508 mm

Spindle Nose to Table (~ max) 24.0 in 610 mm

Spindle Nose to Table (~ min) 4.0 in 102 mm

SPINDLE S.A.E METRIC

Max Rating 30.0 hp 22.4 kW

Max Speed 12000 rpm 12000 rpm

Max Torque 90.0 ft-lbf @ 2000 rpm 122.0 Nm @ 2000 rpm

Drive System Inline Direct-Drive Inline Direct-Drive

Taper | BT40 |

Bearing Lubrication Air / Oil Injection Air / Oil Injection

Cooling Liquid Cooled Liquid Cooled

TABLE S.A.E METRIC

Length 36.0 in 914 mm

Width 14.0 in 356 mm

T-Slot Width 0.626 in to 0.630 in 15.90 mm to 16.00 mm

T-Slot Center Distance 4.92 in 125 mm

Number of Std T-Slots 3 3

Max Weight on Table (evenly distributed) 1500 lb 680 kg

FEEDRATES S.A.E METRIC

Max Cutting 833 ipm 21.2 m/min

Rapids on X 1400 ipm 35.6 m/min

Rapids on Y 1400 ipm 35.6 m/min

Rapids on Z 1400 ipm 35.6 m/min

AXIS MOTORS S.A.E METRIC

Max Thrust X 1995 lbf 8874 N

Max Thrust Y 1995 lbf 8874 N

Max Thrust Z 3085 lbf 13723 N

TOOL CHANGER S.A.E METRIC

Type SMTC SMTC

Capacity 30+1 30+1

Max Tool Diameter (full) 2.5 in 64 mm

Max Tool Diameter (adjacent empty) 5.0 in 127 mm

Max Tool Length (from gage line) 11 in 279 mm

Max Tool Weight 12 lb 5.4 kg

Tool-to-Tool (avg) 1.8 s 1.8 s

Chip-to-Chip (avg) 2.4 s 2.4 s

GENERAL S.A.E METRIC

Coolant Capacity 55 gal 208 L

AIR REQUIREMENTS S.A.E METRIC

Air Required 4 scfm @ 100 psi 113 L/min @ 6.9 bar

Inline Air Hose 3/8 in 3/8 in

Coupler (Air) 3/8 in 3/8 in

Air Pressure Min 80 psi 5.5 bar

DIMENSIONS - SHIPPING S.A.E METRIC

Domestic Pallet 101 in x 99 in x 101 in 257 cm x 251 cm x 257 cm

Export Pallet 98 in x 92 in x 100 in 249 cm x 232 cm x 254 cm

Weight 7800 lb 3539.0 kg

Domestic Pallet w/Conveyor 124 in 101 in 105 in 315 cm 257 cm 265 cm

Weight w/Conveyor 8380 lb 8380 lb

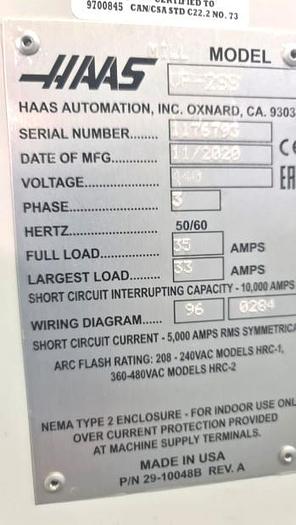

ELECTRICAL SPECIFICATION S.A.E METRIC

Spindle Speed 12000 rpm 12000 rpm

Drive System Inline Direct-Drive Inline Direct-Drive

Spindle Power 30.0 hp 22.4 kW

Input AC Voltage (3 Phase) - Low 220 VAC 220 VAC

Full Load Amps (3 Phase) - Low 70 A 70 A

Input AC Voltage (3 Phase) - High* 440 VAC 440 VAC

Full Load Amps (3 Phase) - High* 35 A 35 A

Equipped With

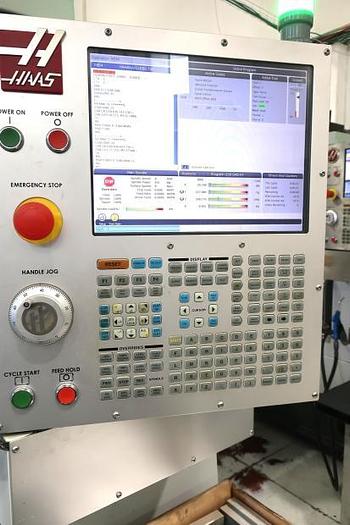

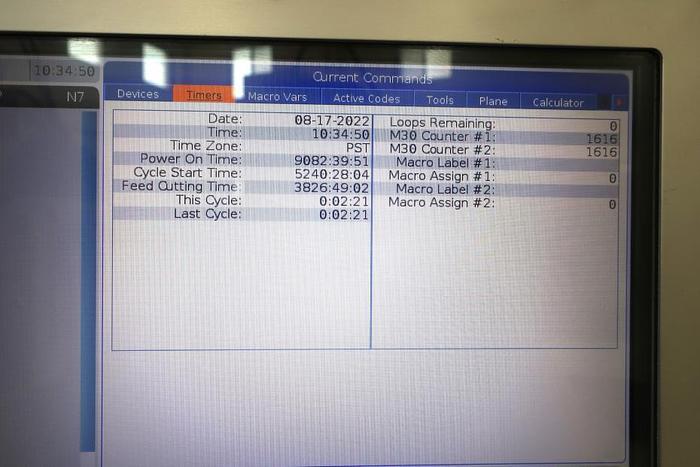

HAAS CNC CONTROL

30 POSITION AUTOMATIC TOOL CHANGE

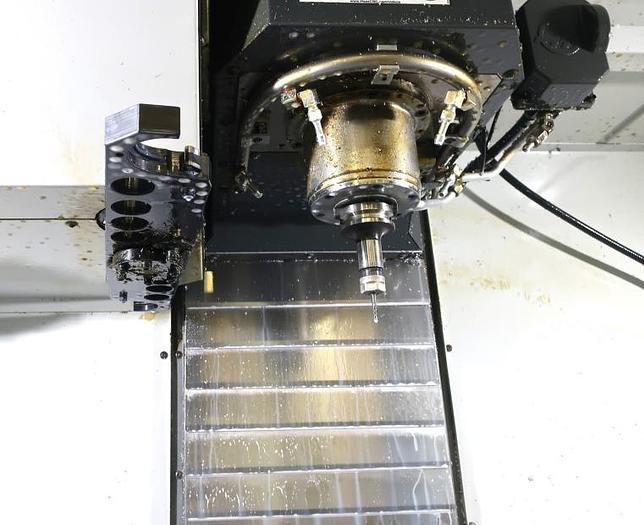

12,000 RPM SPINDLE

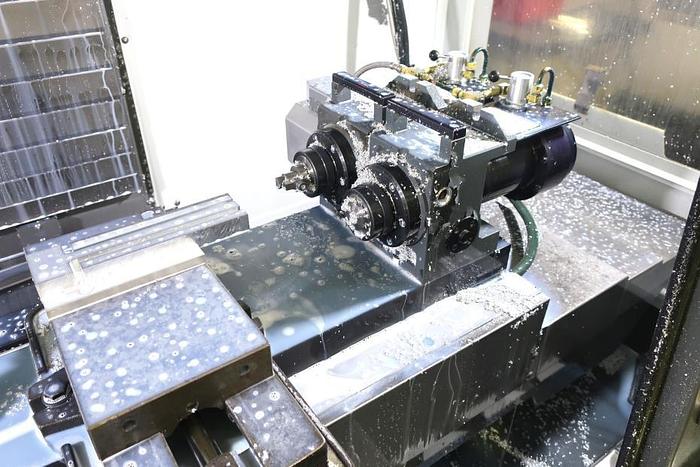

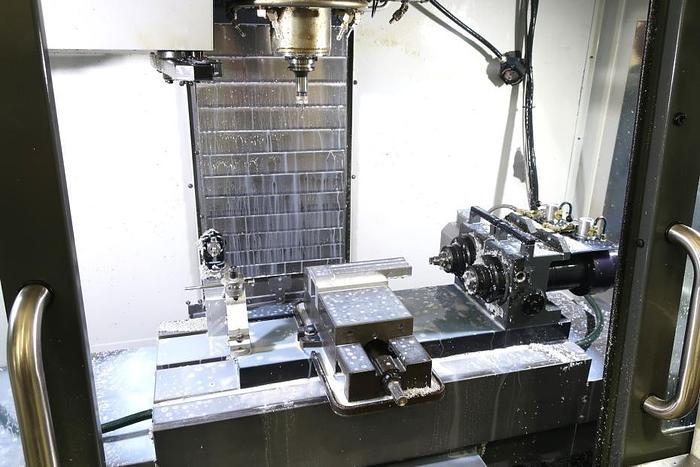

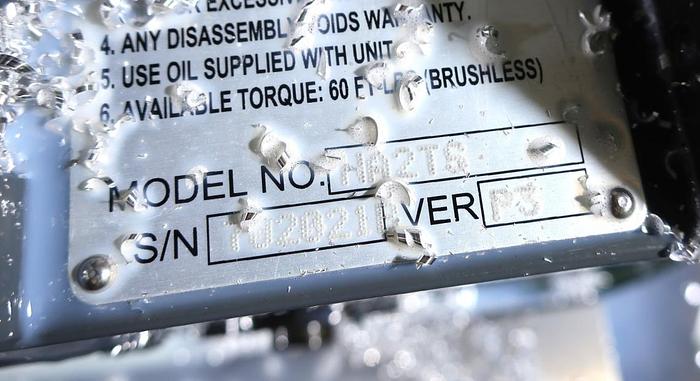

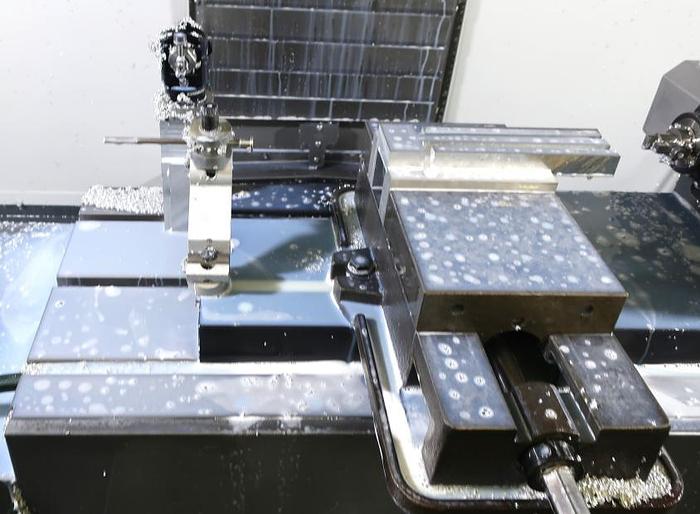

TWIN 5C INDEXERS,

PROBE,

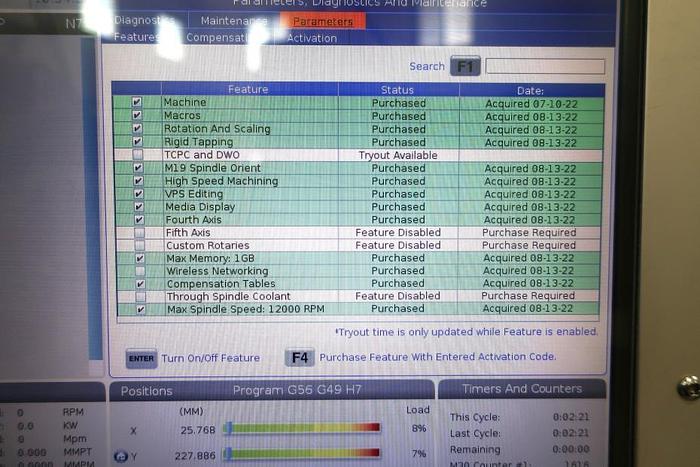

HIGH SPEED MACHINING,

REMOTE JOG HANDLE,

COOLANT THRU READY,

RIGID TAP,

AIR BLAST,

CHIP AUGER,

ETHERNET,

COOLANT SYSTEM

MFG 11/2020, DELIVERED NEW IN 2021

REPLACEMENT COST $111,000.00
