2000 Tarus HSOHTB810

Tarus 3+2 CNC High Speed Mill Model HSOHTB810

Travels X 118” x Y 98” x Z 43” 3+2 Head

10,000 RPM’s 15 HP

Year New 2000

Travels X 118” x Y 98” x Z 43”

3+2 Head

10,000 RPM’s

15 HP

Table:

Table Size                                                     120” X 72”

Cutting Feed Rate (X,Y,Z)                          .01-500 ipm

Rapid Travel Rate                                        500 (X, Y, Z) ipm

Max. Weight on Table                                 60,000 lbs

X Travel                                                         118”

Y Travel                                                         98”

Z Travel                                                          43”

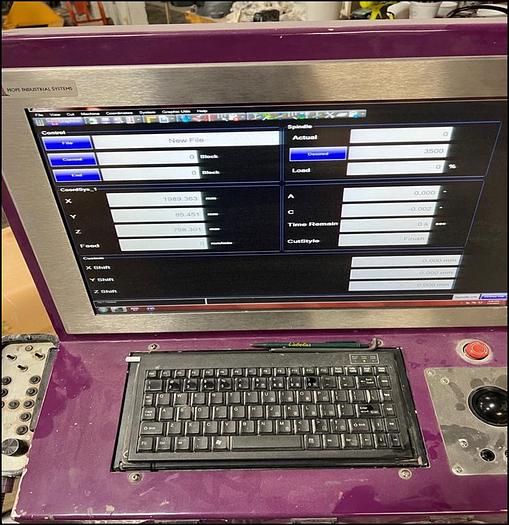

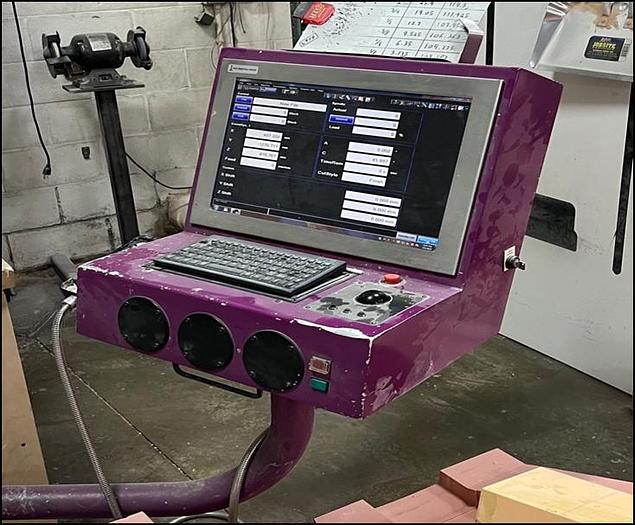

Control: Tarus control updated in 2010

Spindle:

Spindle Speed                                            50-10,000 RPM

Spindle Taper                                               No. CT50

Motor:

Spindle Drive Motor                                     AC

Horsepower                                                  15 HP Direct Drive

General:

            Floor to table surface                                  32”

            Machine Width X Depth                             90” X 77”

            Machine Maximum Height                                     115”

            Machine Weight                                           30,000 lbs.

            Construction                                                 BOX WAY
