2008 Haas VF-3YT/50

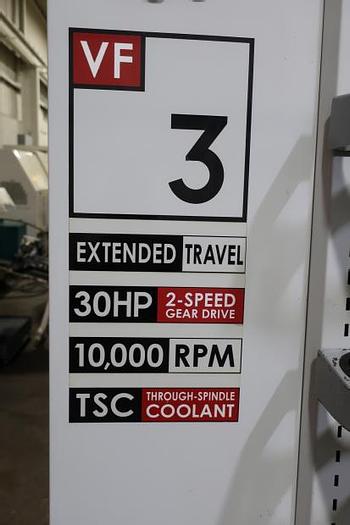

HAAS MODEL VF-3YT/50 CNC VERTICAL MACHINING CENTER 2008

Specifications

Travels:

X-Axis 40"

Y-Axis 26"

Z-Axis 25"

Spindle nose to table (min) 4.5"

Spindle nose to table (max) 29.5"

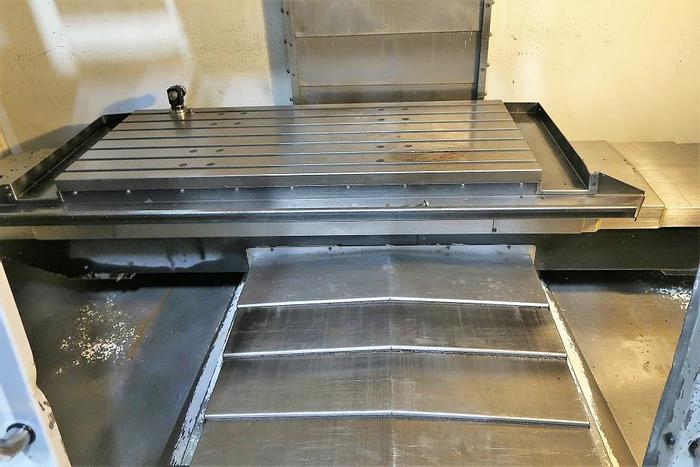

Table:

Length 54"

Width 25"

T-Slot width 5/8"

T-Slot center distance 3.15"

Number of Std T-Slots 5

Max. weight on table (evenly distributed) 3500 LBS

Spindle:

Max. rating 30/40 HP

Max. speed 10,000 RPM geared spindle

Max. torque 75 FT-LB @ 1400

RPM

Drive system Direct speed belt drive

Max. torque w/opt gearbox 250 FT-LB @ 450

Taper 50

Bearing lubrication Air/Oil Injection

Cooling Liquid cooled

Feedrates:

Rapids on X 710 in/min

Rapids on Y 710 in/min

Rapids on Z 710 in/min

Max. cutting 500 in/min

Cont. on page 2

Axis motors:

Max Thrust X 2550 LBS

Max Thrust Y 2550 LBS

Max Thrust Z 4200 LBS

Tool changer:

Type Carousel

(SMTC Optional)

Capacity 30

Max. tool diameter (full) 3.5"

Max. tool weight 12 LBS

Tool-to-tool (avg) 4.2 Sec.

Chip-to-chip (avg) 4.5 Sec.

General:

Air required 4 SCFM, 100 PSI

Coolant capacity 55 Gal.

Power (options may increase requirement) 195-260 VAC/50A

354-488 VAC/30A

Machine weight 14,000 LBS

Equipped With

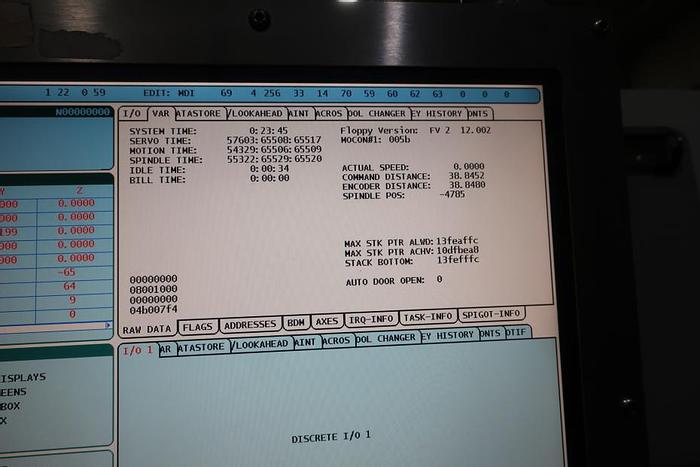

Haas CNC controls,

10,000 rpm geared spindle

coolant thur spindle

30 position ATC

50 Taper Spindle

Hard Disk Drive Ethernet

Remote Jog Handle

4th Axis Drive, Extended Y-Axis

HIgh speed machining

Macros, Floppy Disc Drive

Rigid Tapping, Spindle Orientation

Visual Quick Code Probe System

Intuitive Programing System

Chip Auger

High Intensity Lighting
