2006 BROTHER TC-S2A

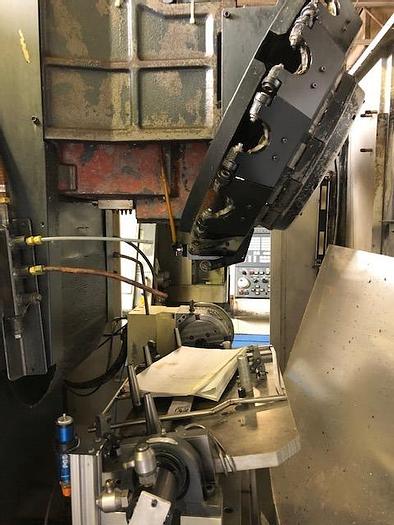

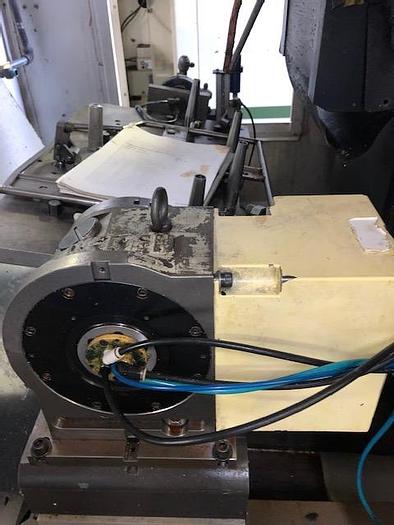

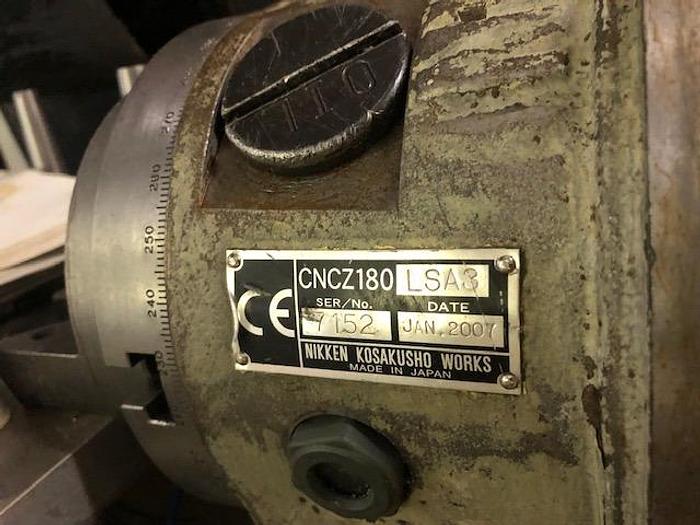

2006 BROTHER TC-S2A-0 CNC DRILLING & TAPPING CENTER W/ Nikken 4th Axis Table

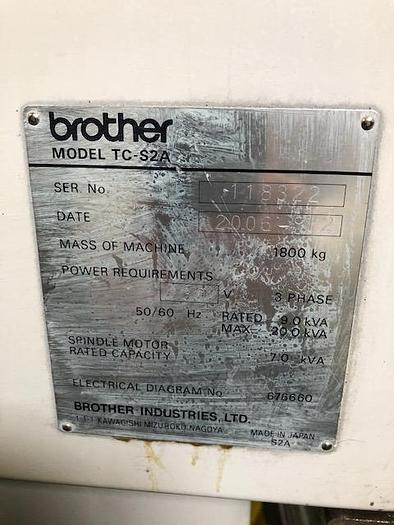

S/N 118322

Catalogue Specifications

Table Work Area: 31.5" L x 12.6" W

X-Axis Travel: 27.5"

Y-Axis Travel: 14.2"

Z-Axis Travel: 16.1"

Table to Spindle Nose: 5.5" Min. - 16.1" Max.

Spindle Speeds: 16-10,000 RPM

Max. Spindle Speed in Tapping Mode: 6,000 RPM

Spindle Taper: # 30

Spindle Motor (10 Minutes / Continuous): 11.2 HP / 6.6 HP

Rapid Traverse (X, Y): 1,417 IPM

Rapid Traverse (Z): 1,969 IPM

Cutting Feedrate (X,Y,Z): 2.0 IPM - 394 IPM

Manual Feedrate (X,Y,Z): 2.0 IPM - 155 IPM

Maximum Table Load Capacity: 330 Lbs.

ATC: 14 Positions

Maximum Tool Weight: 6.6 Lbs.

EQUIPPED WITH:

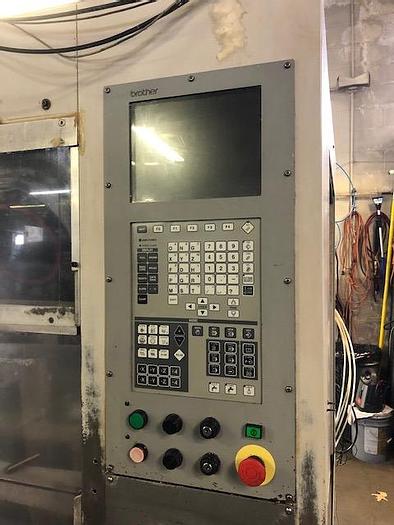

Brother CNC Control

Automatic Tool Changer
