1997 Hurco BMC-30

HURCO Vertical Machining Center,

Model BMC-30, New 1997

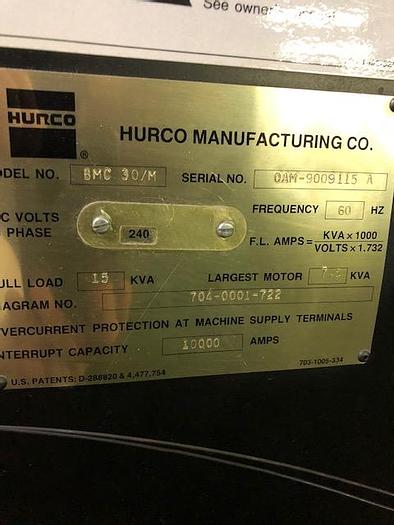

S/N OAM-9009115A

Specifications:

Table Size:           .................................................................................................................. 40” x 16”

Maximum Table Load:.......................................................................................................... 1100 Lbs.

Travels – X-Axis: ........................................................................................................................... 30”

             - Y-Axis: ........................................................................................................................... 17”

             - Z-Axis: .......................................................................................................................... 24”

Rapid Traverse Rate:........................................................................................................... 945” / Min.

Distance Spindle Nose to Table:........................................................................................ 7.8” – 28.6”

Spindle Speeds:   .......................................................................................................... 0 – 8000 RPM

Spindle Taper:     ..................................................................................................................... CAT 40

Motor:                  .............................................................................................................. 10 HP 3/60

Equipped With:

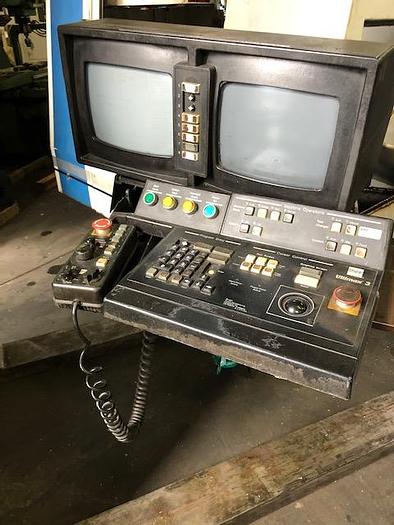

Hurco Ultimax Dual Control

24-Position Automatic Tool Changer

Rigid Tapping

Full Enclosure
