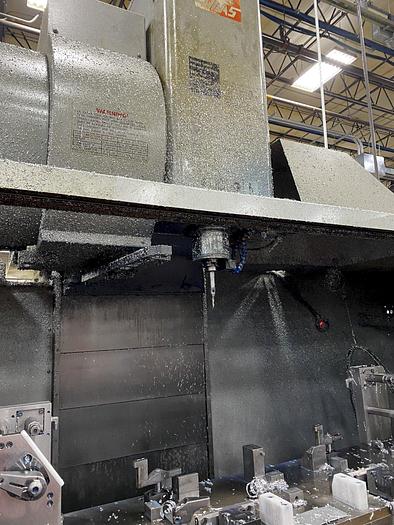

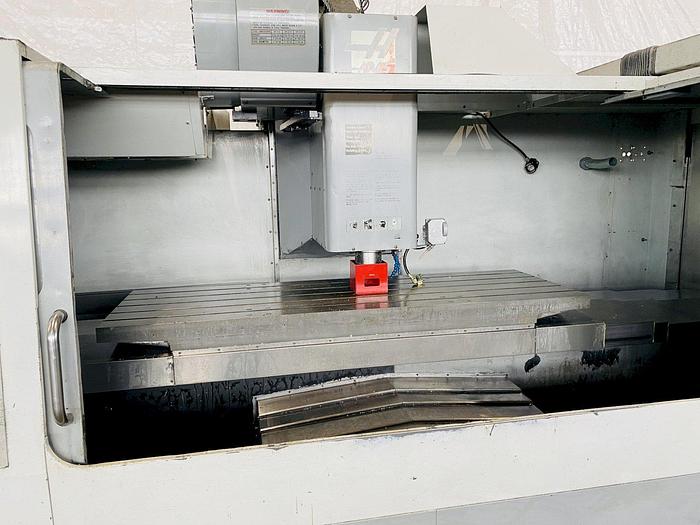

2007 Haas VF-7D/40

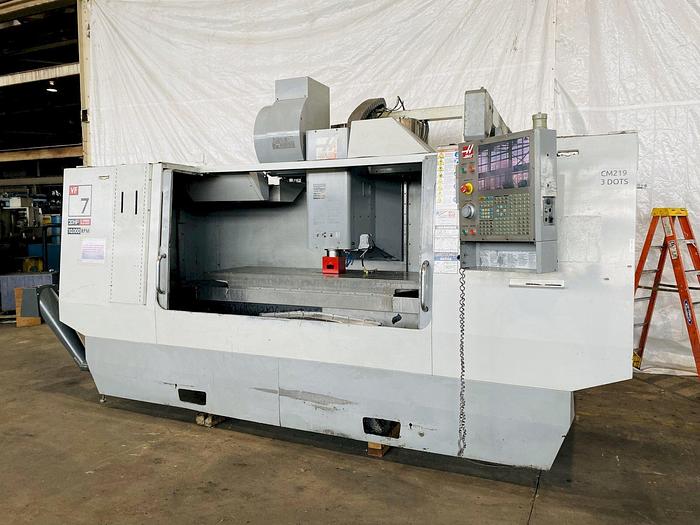

2007 HAAS VF-7D/40 CNC VERTICAL MACHINING CENTER

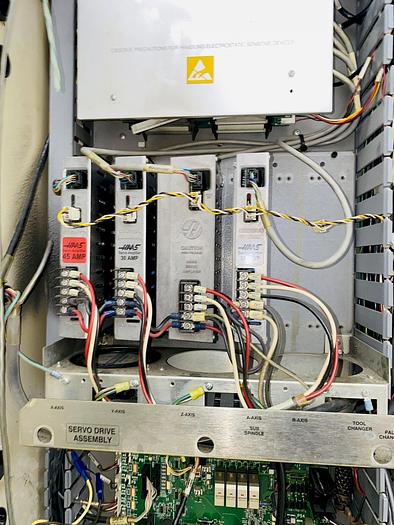

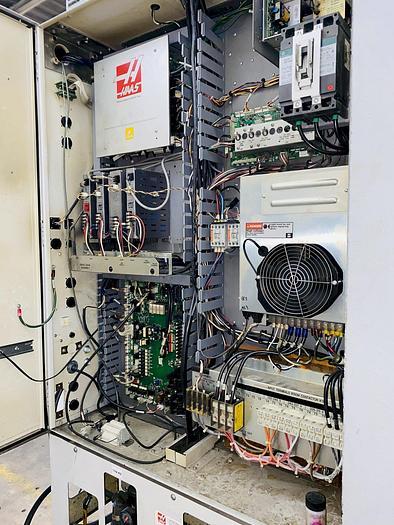

with upgraded control PCB, MOCON

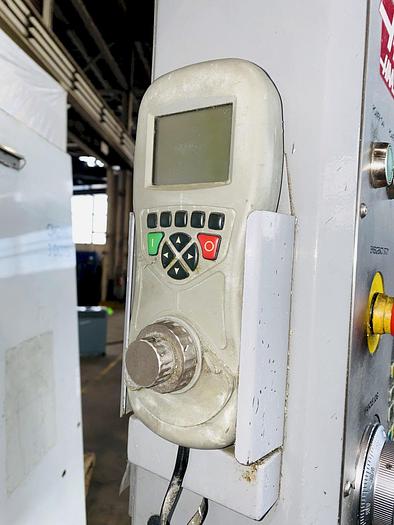

COLDFIRE upgraded to newest jog handle

10,000 RPM 20HP CAT40 Spindle

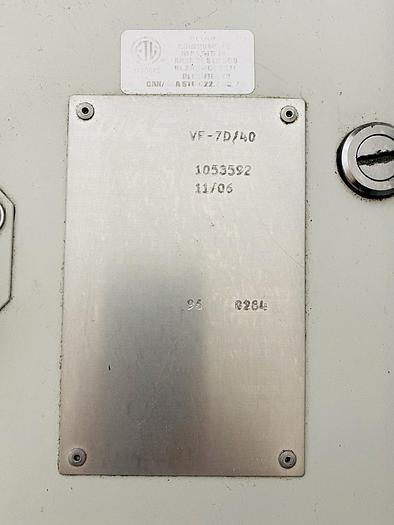

MODEL........................: VF-7D/40

TRAVELS:

X AXIS.......................: 84"

Y AXIS.......................: 32"

Z AXIS.......................: 30"

SPINDLE NOSE TO TABLE........: 34" MAX

SPINDLE NOSE TO TABLE........: 4" MIN

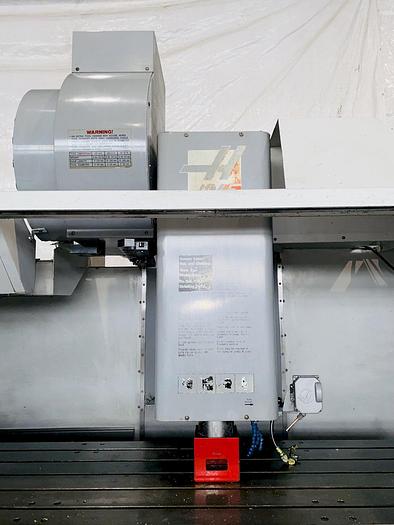

SPINDLE:

HP...........................: 20

MAX SPEED....................: 10000 RPM

MAX TORQUE...................: 90 FT-LBF @ 2000 RPM

2 SPEED GEAR DRIVE...........: YES

TAPER........................: 40

RUN TIME.....................: 21,076

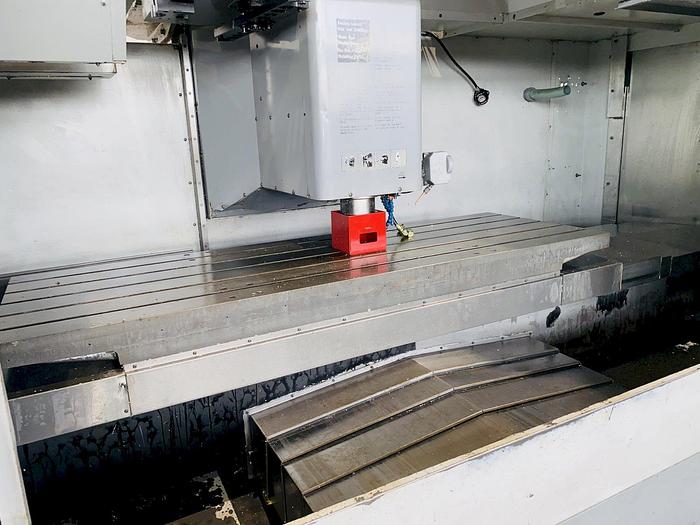

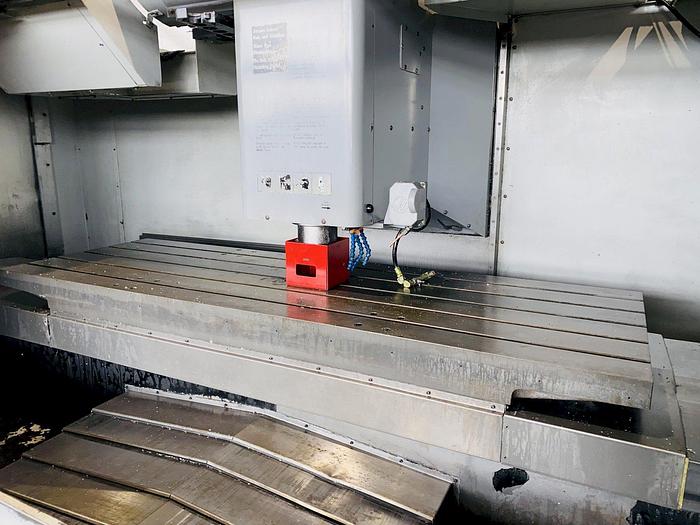

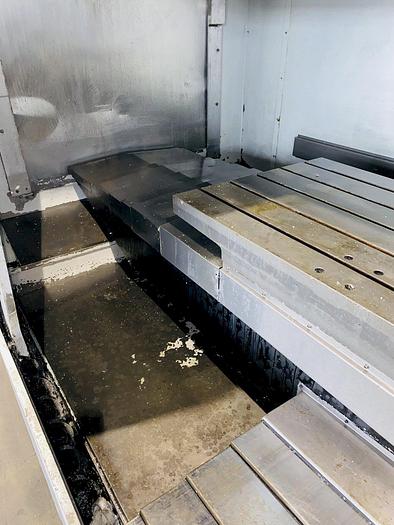

TABLE:

LENGTH.......................: 84"

WIDTH........................: 28"

MAX WEIGHT ON TABLE..........: 4,000 LBS

FEEDRATES:

MAX THRUST X.................: 3400 LBF

MAX THRUST Y.................: 3400 LBF

MAX THRUST Z.................: 5600 LBF

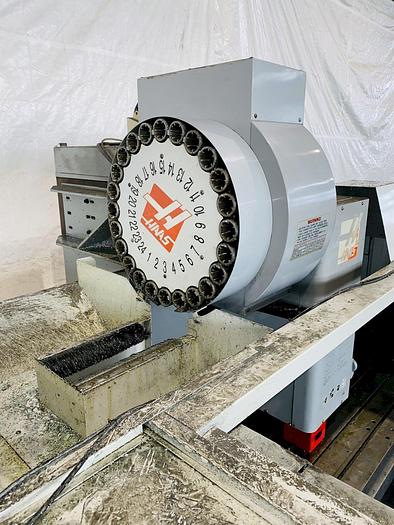

TOOL CHANGER.................: 32 + 1 ATC

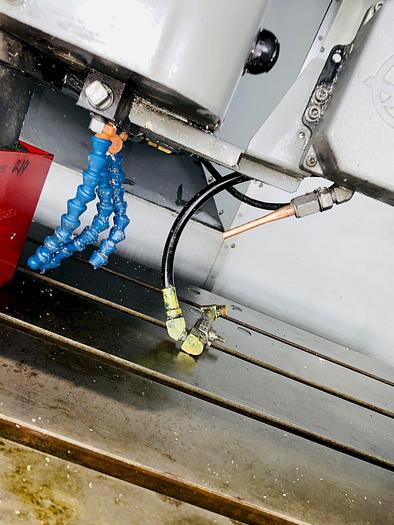

THROUGH SPINDLE COOLANT......: YES

4TH AXIS DRIVE & WIRING......: YES

HIGH SPEED MACHINING.........: YES

WIPS.........................: YES

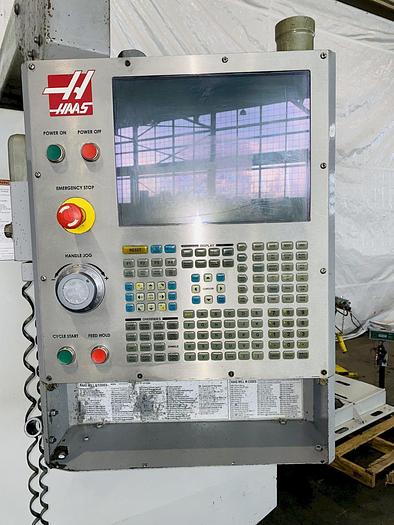

● Control: Haas control updated to COLDFIRE!!

● Additional Axis: 4th Axis Ready

Options / Features

● High Speed Machining

● 2 Speed Direct Drive

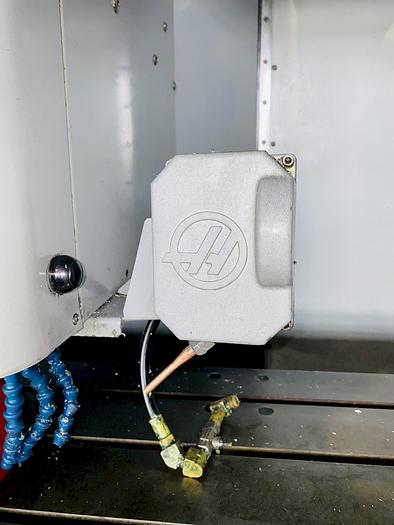

● Wireless Probing

● Spindle Orientation

● Macro Programming

● M-Fin
