2001 OKK VM5-II

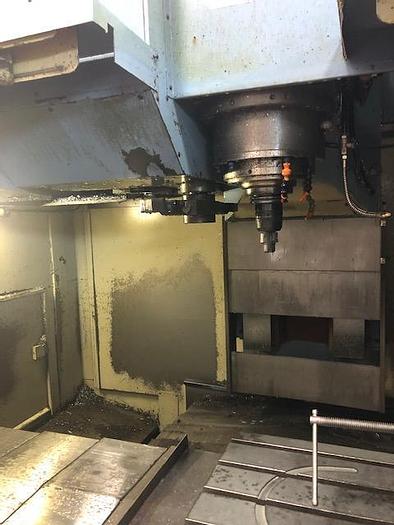

OKK VM5-II VERTICAL MACHINING CENTER 2001 2 Available

X-Axis Travel: 40.2"

Y-Axis Travel: 20.1"

Z-Axis Travel: 20.1"

Table Size: 41.3" X 22.1"

Distance from Table Top to Spindle Nose: 5.9"" to 26"" Max Workpiece Weight on Table: 1,760 Lbs

Spindle Speeds: 35 to 13,000 Rpm

Spindle Taper: Cat 50

Spindle Motor: 40 Hp

Tool Magazine Capacity: 20 Tools

Machine Floor Space Required...111"" Wide, 115"" Deep, 109"" H

Machine Weight: 16,500 Lbs

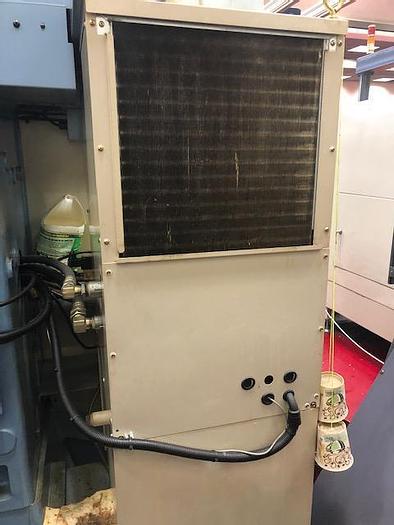

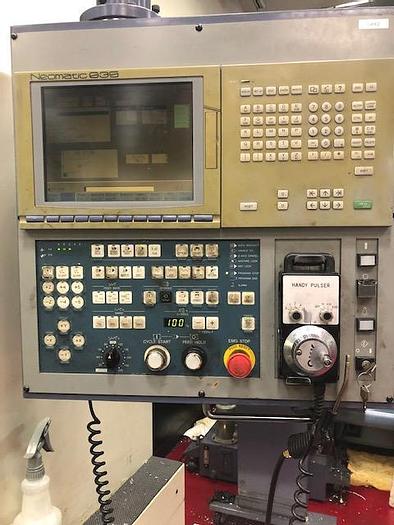

Equipped With: * Mitsubishi Neomatic 635 Cnc Control with 10.4"" Color Lcd * Dual Coil Type Chip Augers * Full Enclosure * Box Way Construction * 1,000 PSI THROUGH SPINDLE COOLANT * Oil Chiller
