2011 Mori Seiki NLX-2500MC/700

2011 MORI SEIKI NLX-2500MC/700 CNC TURNING CENTER LATHE

S/N NL253110908

DETAILS:

Chuck Size 10"

Max Diameter Bar Capacity 3.1"

Max Swing Over Bed / Cover / Carriage 31" / 23" / 21.3"

Max Turning Diameter (Max / Std) 14.4" / 10.6"

Max Machining Length 27.7"

Spindle Motor 24.7 / 20 HP

Spindle Speed 4000 RPM

Spindle Bore 3.6"

Spindle Nose A2-8

Spindle Torque 441.8 ft. lbs.

Tools 12 (All Live)

Milling Motor 7.5 HP

Milling Speed 6000 RPM

Rapid Traverse Rates 1181 IPM

X-Axis Travel 10.2"

Z-Axis Travel 31.3"

C-Axis Index .001 Degree

Turret Index (Single Step) 0.27 Seconds

Tailstock Taper MT#5

Machine Dimensions (L x W x H) 156.3" x 80.8" x 74.8"

Machine Weight 12,100 lbs.

FEATURES:

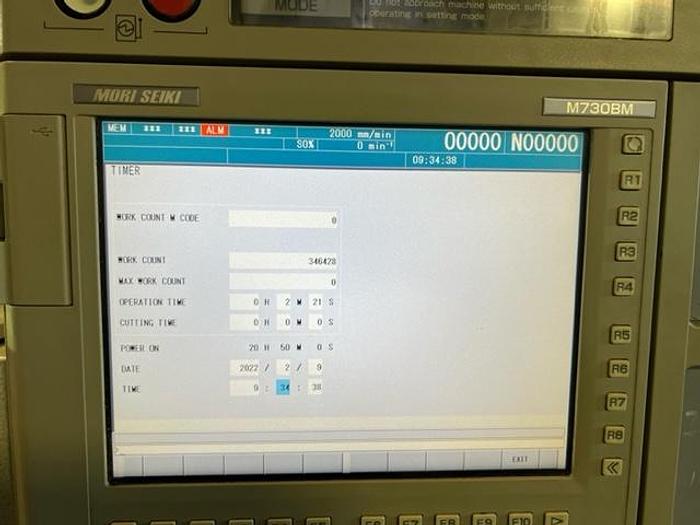

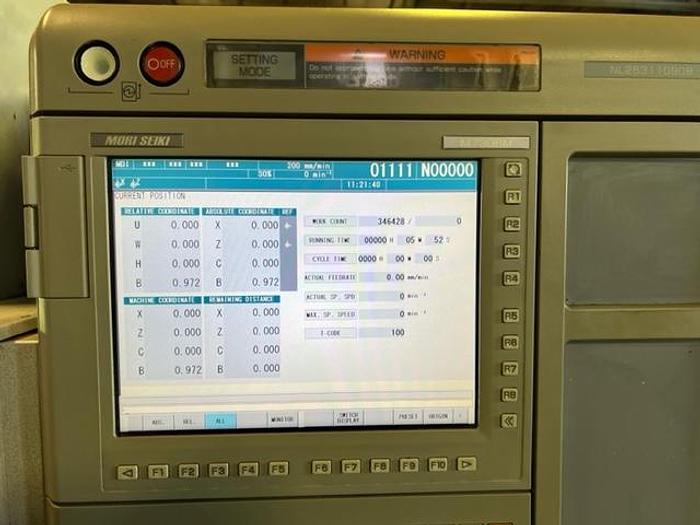

MORIC MSX-853 IV (MITSUBISHI 730BM) CNC CONTROL

10.4" Color TFT

USB Port & PC/MCIA Interface

MAPPS IV Programming

C-Axis Milling Capability

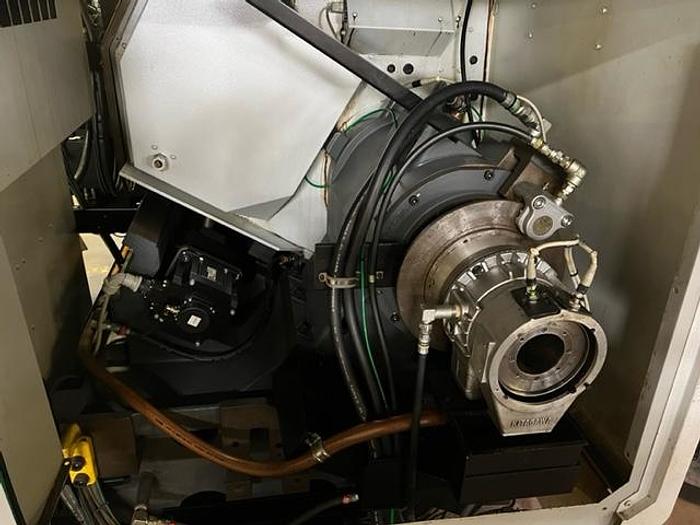

10" Hydraulic Chuck

Digital Tailstock

Built-In Integral Milling Spindle Motor

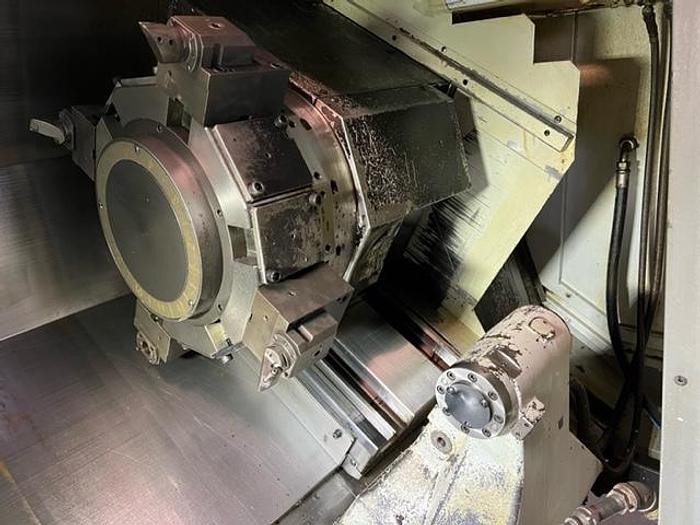

Servo Driven Turret

Tool Presetter

Turbo Chip Conveyor (Side Exit)

Slant Bed Box Way Construction

Manufacture Date June 2011
