Fadal 6535HTX CNC Vertical Machining Center, 2009 Fanuc 18iMB, 65"/35"/34" Travels,

FADAL MODEL VMC6535HT VERTICAL MACHINING CENTER WITH FANUC CONTROL, 65” x

35” x 34”

EQUIPPED WITH

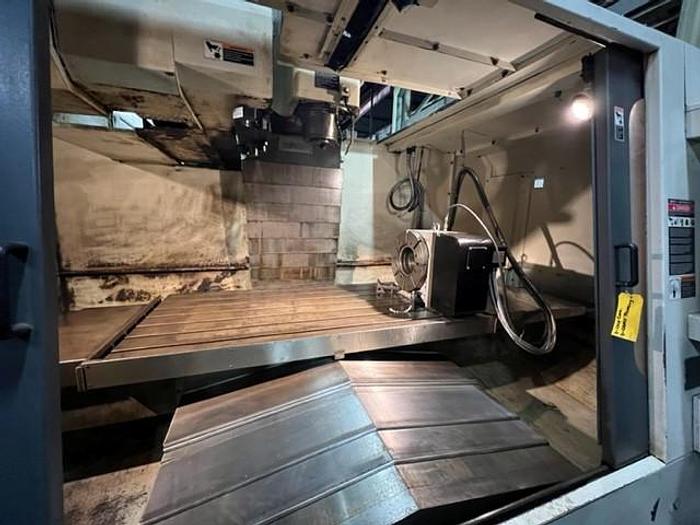

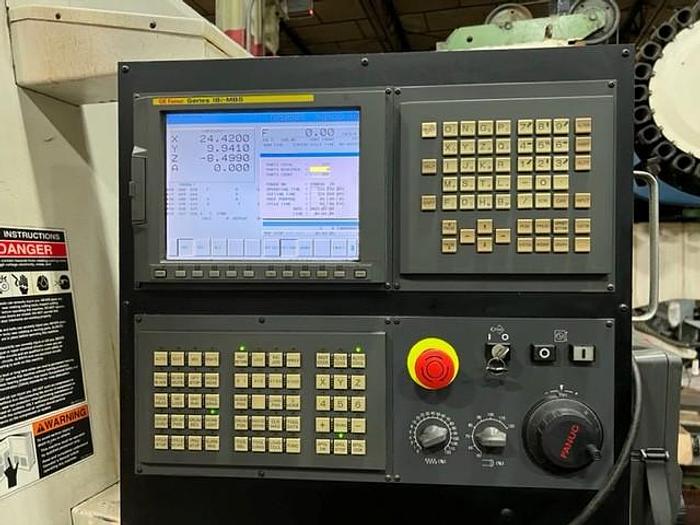

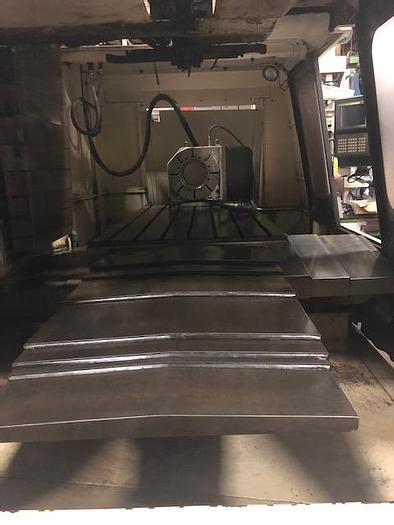

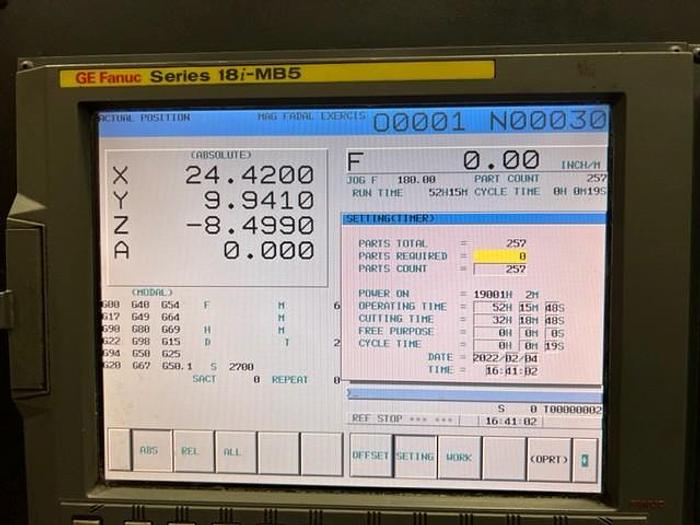

FANUC 18i-MB5 CONTROL

32 POSITION DUAL ARM TOOL CHANGER

RIGID TAPPING

AIR/OIL SPINDLE

CHIP CONVEYOR

WASH DOWN

HIGH PRESSURE THROUGH SPINDLE COOLANT

GENERAL

DIMENSIONS: 219” LR X 130” FB X 133” H

MACHINE WEIGHT: 36,000 LBS

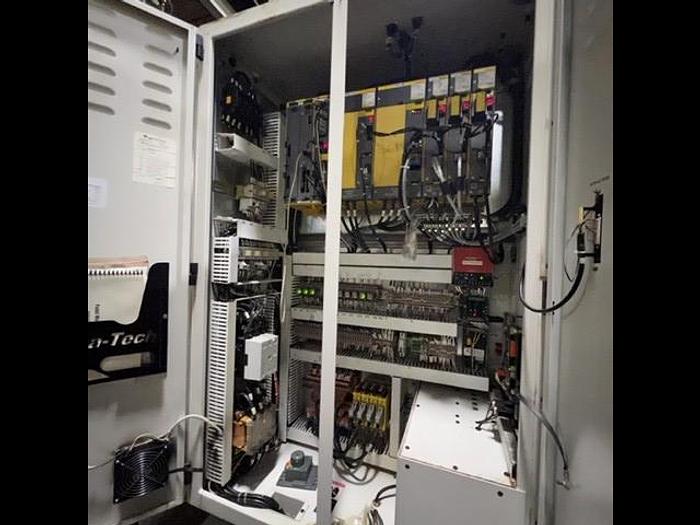

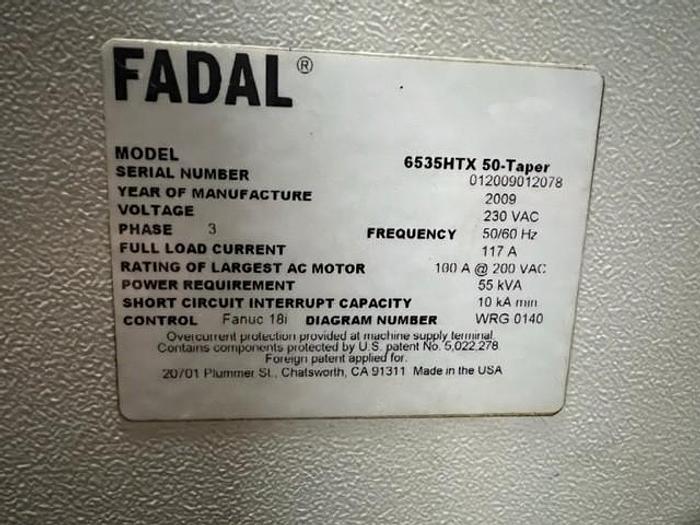

ELECTRICS: 240 VOLTS, 3 PH, 60 CYC

COOL POWER SYSTEM: SPINDLE, BALLSCREWS

BALL SCREW SIZE: 62.2MM DIA X/Y/Z

Description

NEW 2009

TABLE

TABLE SIZE: 74.8” X 26.5”

FLOOR TO TABLE SURFACE: 40.3”

FEED RATES

CUTTING FEED RATE (X/Y/Z): .01 - 400 IPM (600 IPM AT 150%)?

RAPID FEED RATE (X/Y/Z): 900 IPM (X, Y) 700 (Z)?

AXIS DRIVE MOTOR (X/Y/Z): AC 3,800 LBS (PEAK) THRUST

TRAVELS

LONGITUDINAL (X-AXIS): 65″

CROSS (Y-AXIS): 35″

VERTICAL (Z-AXIS): 34″

SPINDLE

SPINDLE NOSE TO TABLE: 5″ - 39″

SPINDLE CENTER TO COLUMN WAYS: 37.4″

MAIN MOTOR - WYE/DELTA VECTOR DRIVE: 30 HP

SPINDLE SPEED: 10 - 6,000 RPM

SPINDLE ORIENTATION: ELECTROMECHANICAL

SPINDLE TAPER: CAT # 50

AUTOMATIC TOOL CHANGER

TYPE: SIDE MOUNT, DUAL ARM

NUMBER OF TOOLS: 32

TOOL SELECTION: RANDOM/BI-DIRECTIONAL

MAXIMUM TOOL DIAMETER: 9.85”

MAXIMUM TOOL LENGTH: 15.75

MAXIMUM TOOL WEIGHT: 40 LBS

4th axis table

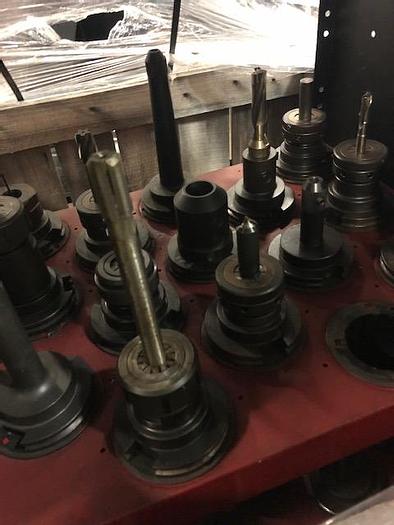

Misc. tool holders

Chiller
