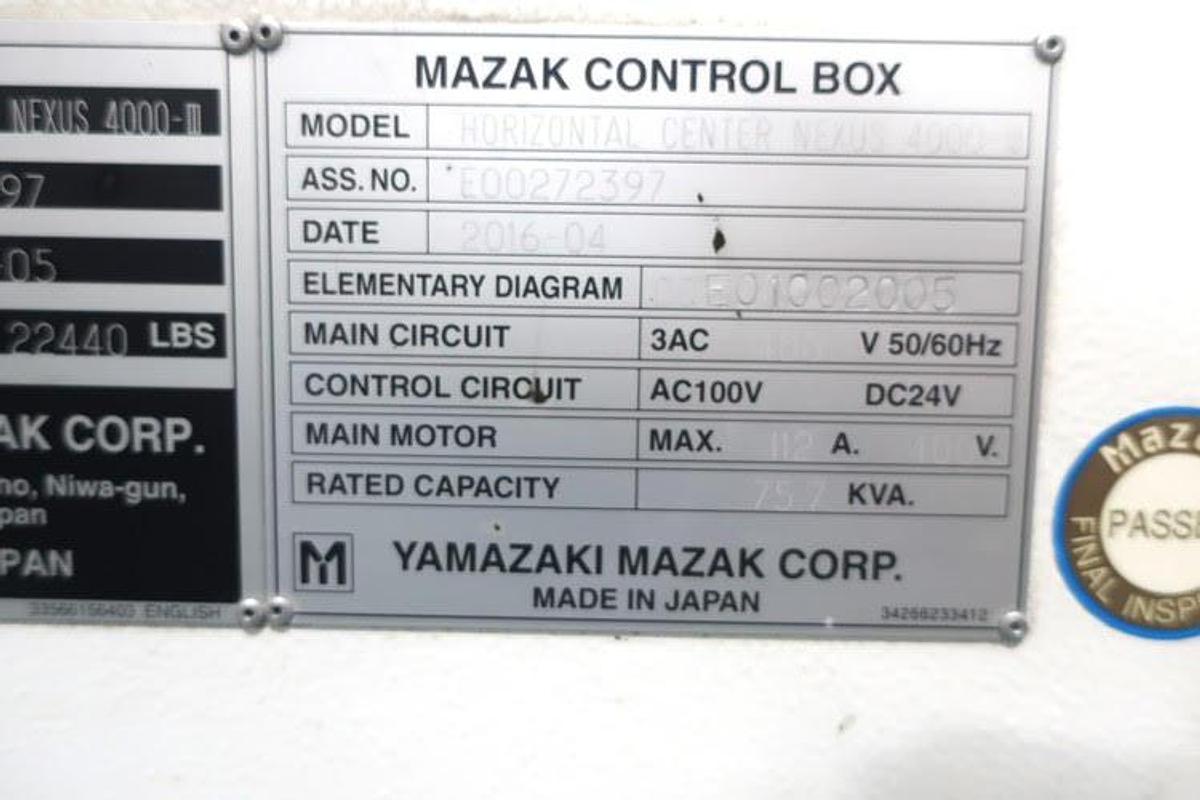

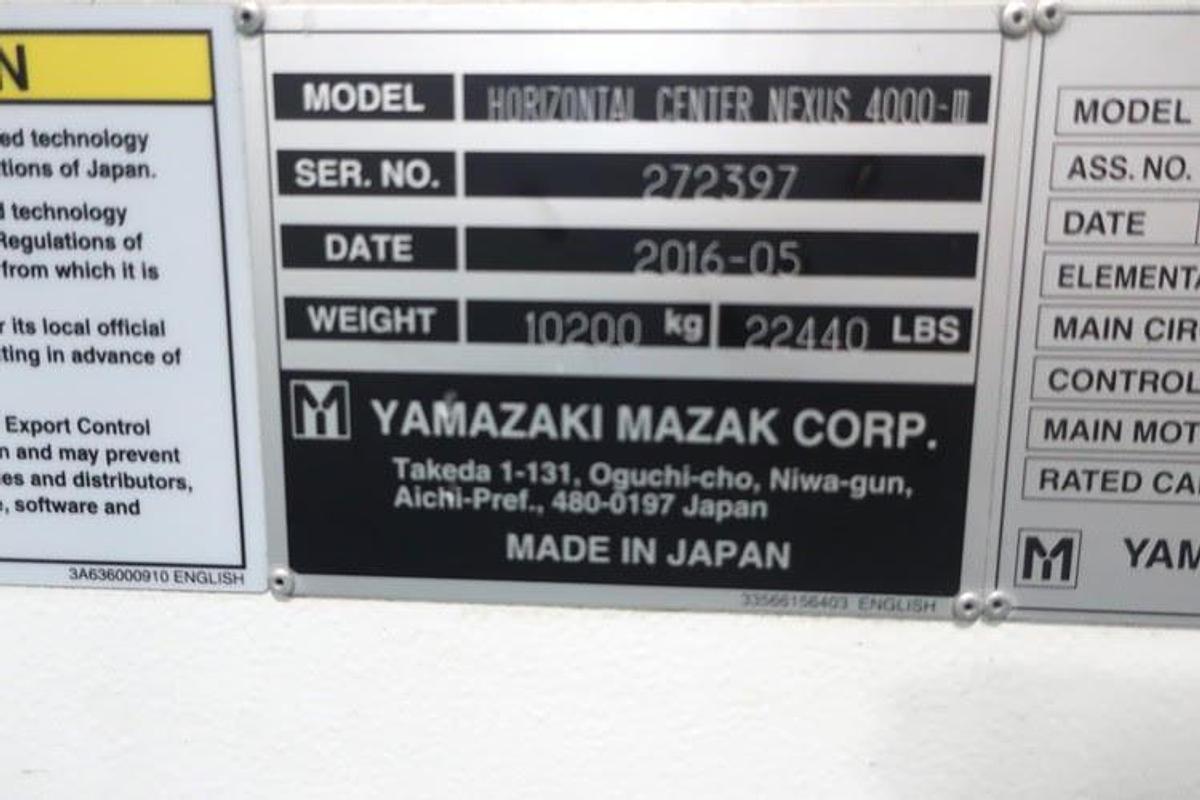

2016 MAZAK HCN NEXUS 4000-III

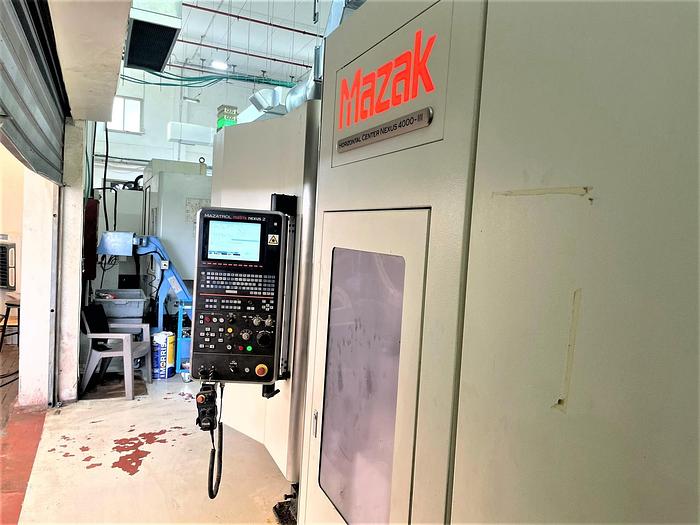

16"X16" MAZAK HCN NEXUS 4000-III 4-AXIS PRECISION HORIZONTAL MACHINING CENTER 2016

Specifications

Stroke:

X Axis stroke (column travel right/left) 22.0"

Y Axis stroke spindle head travel up/down 25.2"

Z Axis stroke (pallet forward/backward) 25.2"

Distance from pallet center to spindle nose 2.8"-28.0"

Table indexing time 1.3 sec each 90 deg

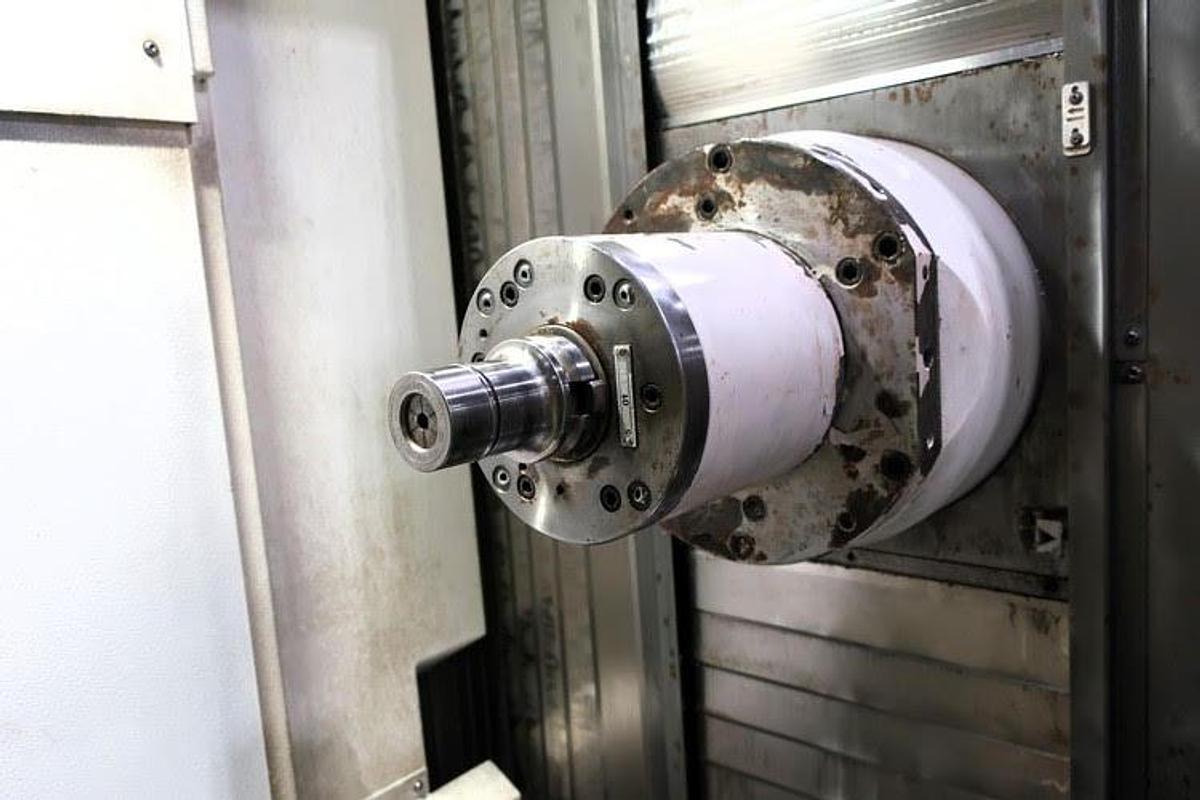

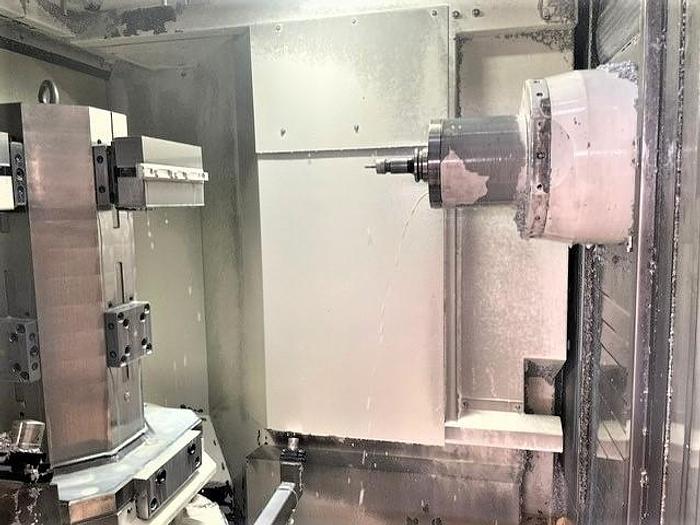

Spindle:

Max. Spindle speed 18,00 RPM

Spindle bearing size 70mm

Feedrate:

Rapid traverse rate (X,Y,Z Axes) limited w/cont. axis mov. 2,362 IPM

Axis acceleration/deceleration 1G

Automatic Tool Changer:

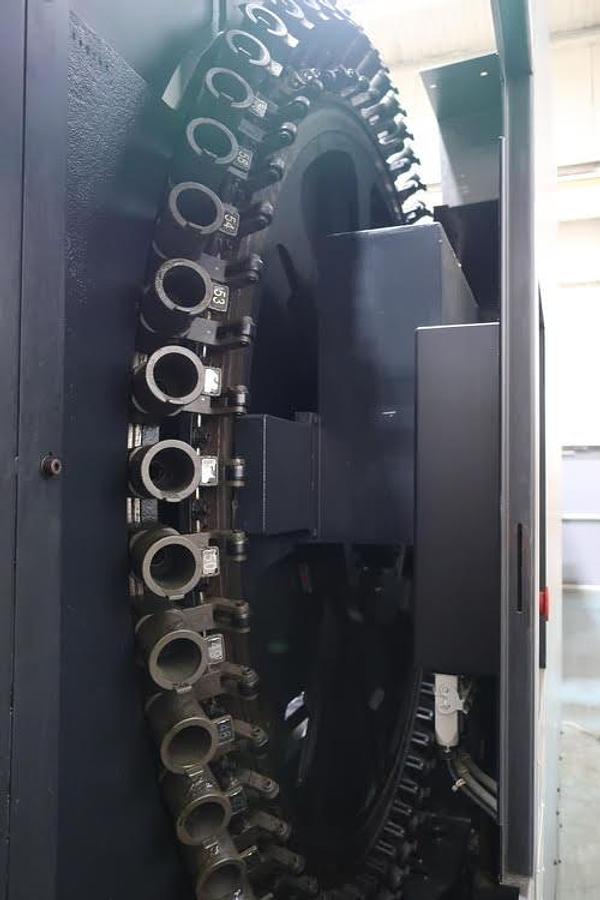

Tool storage capacity 60 Tools

Max. Tool diameter/length (from gauge line)/weight 6.7"

Tool selection method (Random selection @) Shortest path

Tool change time (chip to chip) 2.4 sec.

Motors:

Spindle motor 25/23 HP

Flood coolant pump motor 50/60 HZ

Machine size 87"x207"x106.8"H

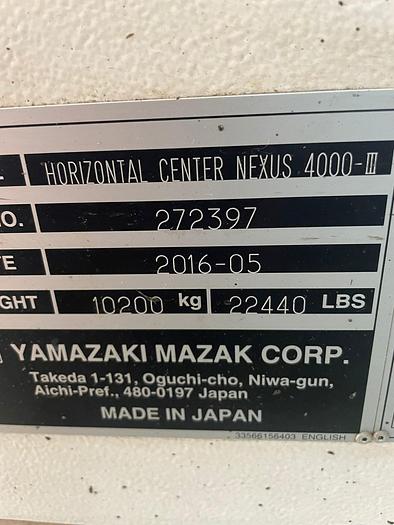

Machine weight 23,584 lbs

MOTOR SPECIFIFCATIONS:

25 HP Main Spindle Drive Motor

Equipped With

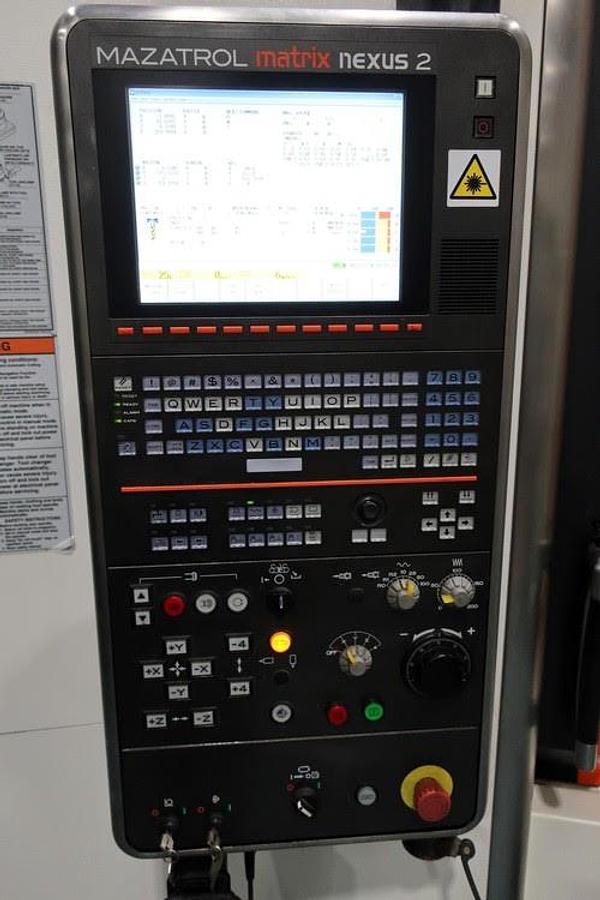

Mazatrol Matrix Nexus 2 CNC Control

Flood Coolant System

Work Light

One set of Adjusting Tools

Foundation kit (Block, Fixture)

Mazak Standard Color (F Whites/s Black)

The safety Measures on worldwide level

Y Axis Travel 25.20" & 2 Pallet changer

19" Color LCD (Touch Screen)

Power Transformer for other Markets

Main Spindle Motor AC 18.5 Kw (25 HP)

Spindle Chiller Unit, Absolute Positioning System

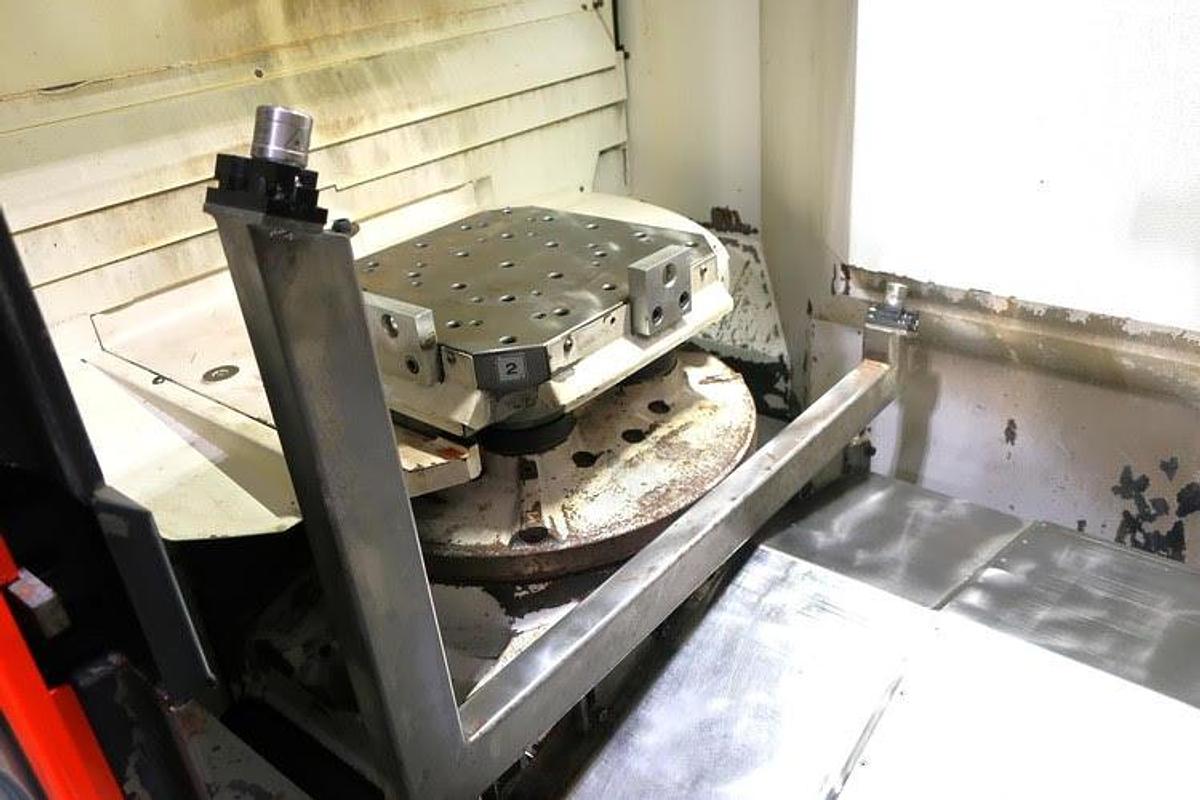

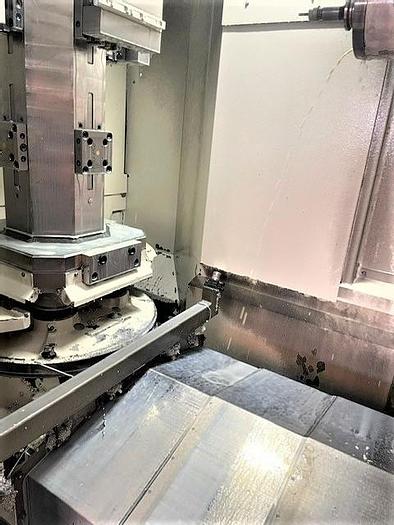

Standard Tap Pallet (w/o Edge Locators)

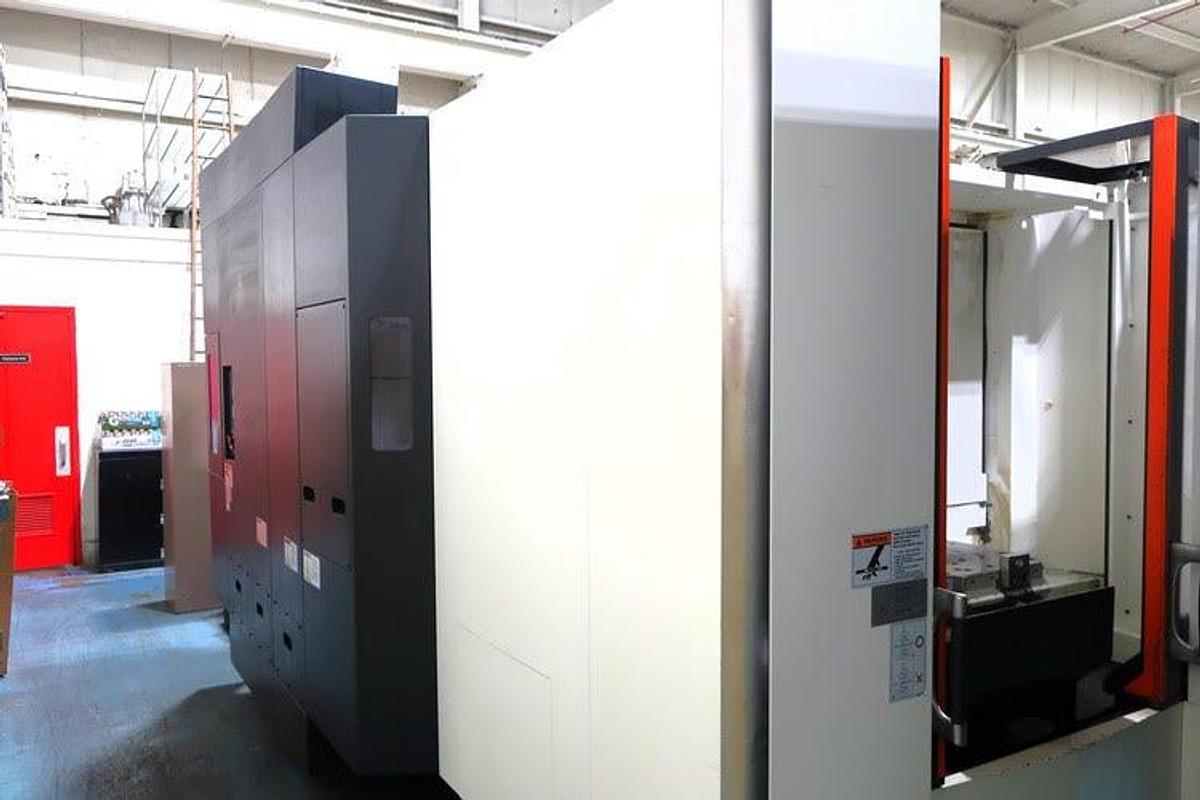

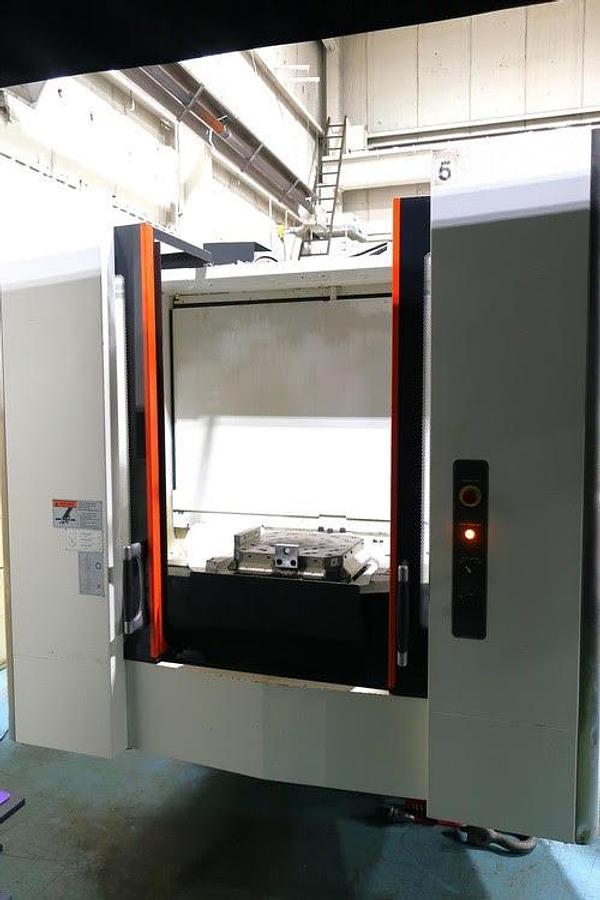

Safety cover for 2 Pallet Changer

Coolers for Ball Screw (X,Y,Z-Axis), Roller Guides

Air Through Spindle Systems (Spndl Stop), Niagara Coolant (Recommended Equipment)

Operator Door Interlock with Lock-Switch, Auto Power on/off + Warm-up

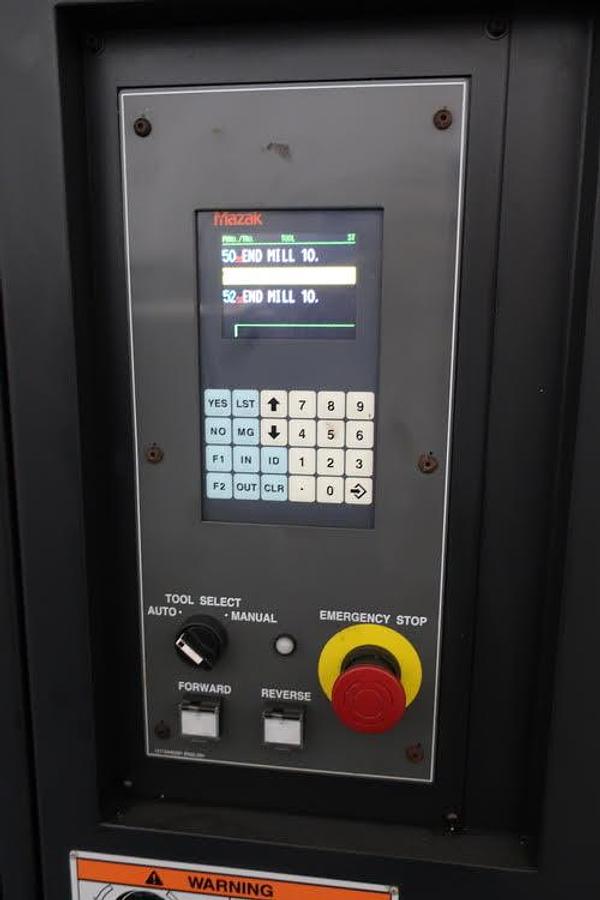

ATC & APC Auto Recovery, Tool ID Magazine Panel (Touch panel)

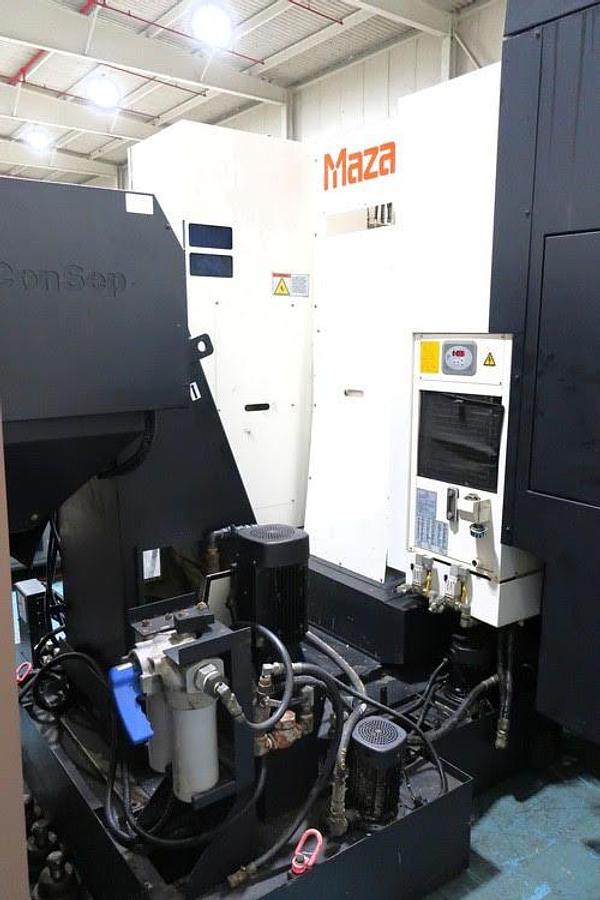

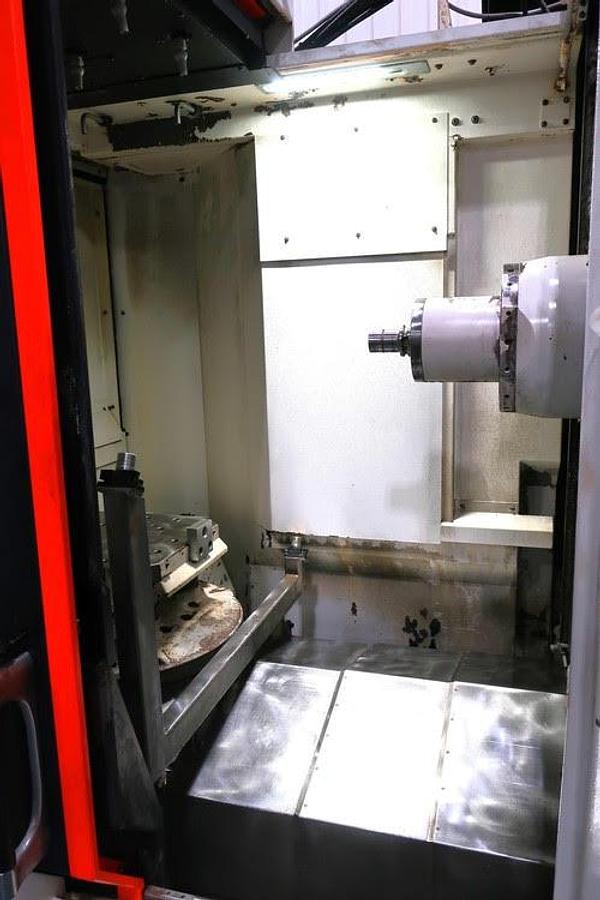

Enclosed Coolant & Splash Cover

Prep. for Chip Conveyor Rear (Consep-1)

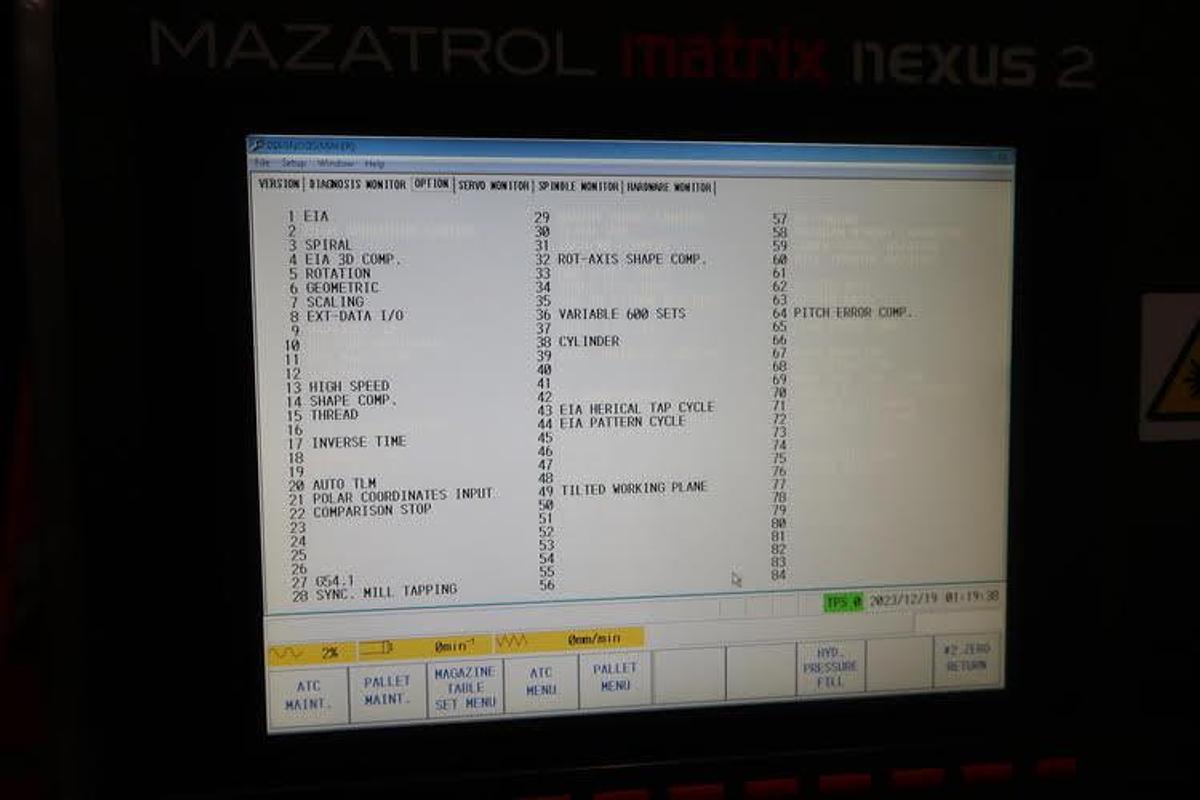

Smooth Standard Software, User macro (Common variables; 600 pairs)

Mazak Tapping/Boring Tornado (Mazatrol & EIA/ISO)

EIA/ISO Code Input Function (Standard), Add. EIA/ISO Functions (Re.IEA/ISO)

Inverse Time Feed, G37.Automatic Tool-length Measurement

Sequence number comparison Stop Function

Background Tool Path Check, Add. Workpiece Coordinate Sys. 300-Pairs

Thread Cutting Function, EIA Pattern Cycle (Grid, ARC)

USB I/F (1-Port), Lan Port, Accuracy Inspection

Relocation Detector & Additional Reinforcement for transport

OPTIONAL EQUIPMENT:

Auto Tool length measure. & Break Detector

Manual pulse generator (wired/detachable), Hi-Press Coolant thru sys (15KG (213 PSI))

Chip Conveyor side Dispo, (CONSEP-1) N/A6PC

B)Synchronized Tapping & B) Cylindrical Interpolation (RQR.NCRT)

Signal Tower (3 Colors lights, Square), 60 Tool Drum magazine (Random Memory)

Spindle Speed 18,000 RPM (Random memory) & NC Rotary Table (360,000 Positions)
