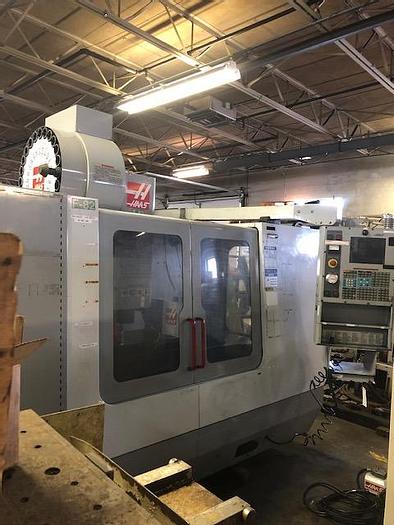

2003 Haas VF-3

2003 Haas VF3 Vertical CNC Machining Center with 4th Axis

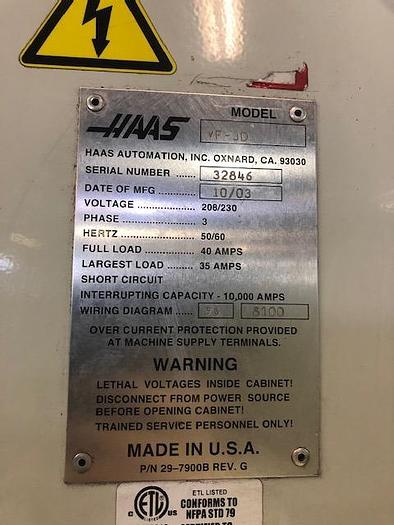

S/N 32846

Travels:

X-Axis: 40″

Y-Axis: 20″

Z-Axis: 25″

Rapid Traverse Rates: 710 Inch Per Minute

Cutting Feed Rates: 500 Inch Per Minute

Spindle Nose to Table (Min.- Max.): 4″ – 29″

Table:

Length: 48″

Width: 18″

Number of Std T-Slots: 5

T-Slot Width: 5/8″

Max Weight on Table: 1500 lbs

Spindle:

Taper Size: 40

Speed Range: 0 – 7500 RPM

Spindle Type: Gear Head

Spindle Power: 20 HP Vector Dual Drive

Max Torque: 90ft-lb @ 2000 RPM

Automatic Tool Changer:

Capacity: 20 + 1

Max Tool Weight: 12 lbs

Max Tool Dia: 3.6″

Max Tool Length: 13″

Tool Changing Time: 4.2 Seconds

General:

Air Required: 100 psi, 4 scfm

Power: 220v / 66FLA / 3-Phase

Overall Dimensions: 118″ x 98″ x 100″ High

Weight: 12,500 lbs

IHaas VF-3 Features:

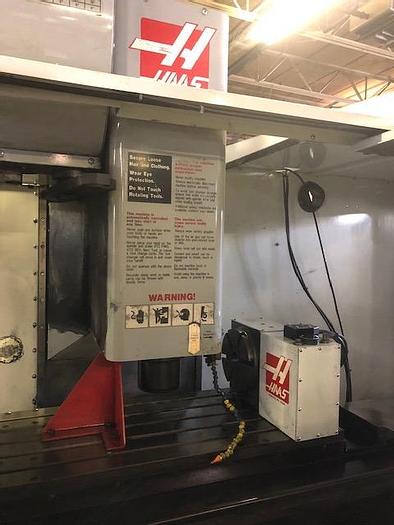

4th Axis Table

2 Speed Gearbox

side mount atc

24+ 1 automatic tool changer

rotating&scaling

spindle orient(m19)

marcos

usb

Floppy Drive

Flood Coolant system

Rigid Tap

Sevo time   19862

Motion   3864

spindle  3965
