2004 Fadal EMC 2016L

Fadal EMC 2016L CNC Vertical Machining Center  2004

SERIAL. 012004046205

X Axis Travel: 20"

Y Axis Travel: 16"

Z Axis Travel: 14"

Rapid Rate X Axis: 700 IPM

Rapid Rate Y Axis: 700 IPM

Rapid Rate Z Axis: 700 IPM

Table Size: 29.5"x 16"

Max Table Load: 1,000 LBS

Spindle Motor: 12 HP

Spindle Speed: 7,500 RPM

Spindle Taper: 40 CT

Tool Changer: 16 ATC

Dimensions: 75" x 77" x 92"

Weight: 4,800 LBS

 3Ph 50/60Hz

RIGID TAPPING

HIGH SPEED CPU

GRAPHICS

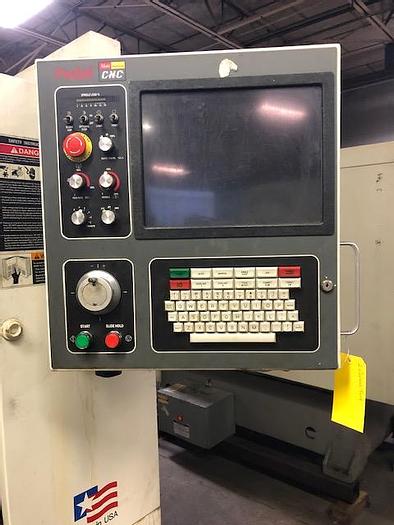

fADAL CNC 88HS WITH FLAT SCREEN DISPLAY

MM BALL SCREWS

COOLANT TANK FULL ENCLOSURE
