2009 MAZAK QUICK TURN NEXUS 350-ll

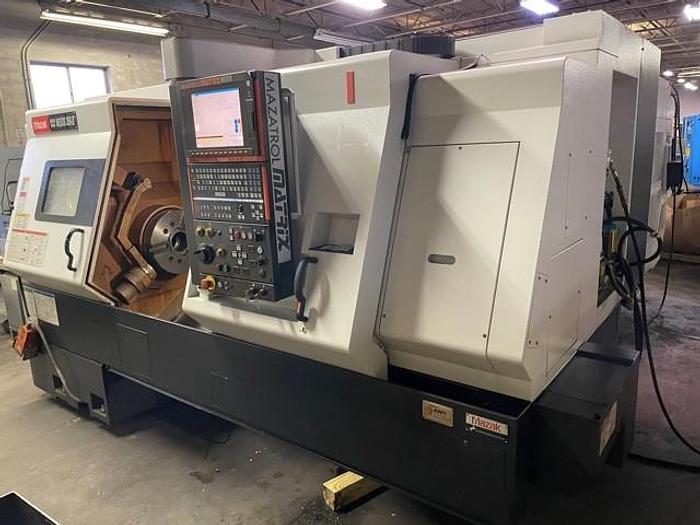

MAZAK QUICK TURN NEXUS 350-ll 2-AXIS CNC LATHE TURNING CENTER 2009

Specifications

SPECIFICATIONS:

MAXIMUM SWING 26.77”

STANDARD MACHINING DIAMETER 10.39”

MAXIMUM MACHINING DIAMETER 16.53” (ADJACENT POCKETS EMPTY)

SPINDLE MOTOR 40/30 (30 MIN/CONT.)

SPINDLE TORQUE 533 FT/LBS

SPINDLE BORE 4.4”

STD. BAR CAPACITY 4”

SPINDLE SPEED 3,300 RPM

SPINDLE NOSE A2-11

TURRET TYPE DRUM TURRET

NUMBER OF TOOLS 12

TOOL SHANK HEIGHT 1”

BORING BAR SHANK DIAMETER 1.5”

TURRET INDEX TIME .2 SEC (ONE POSITION)

X-AXIS TRAVEL 8.85”

Z-AXIS TRAVEL (BED LENGTH: 48) 48.38”

RAPID TRAVERSE RATES X-AXIS 1,181 IPM

RAPID TRAVERSE RATES Z-AXIS 984 IPM

TAILSTOCK CENTER MT NO. 5

MACHINE HEIGHT 78.73”

FLOOR SPACE REQUIREMENT 119.44 X 80”

WEIGHT 18,775 LBS. (est.)

Equipped With

MATRIX NEXUS CNC Control

10.4” Color LCD

Automatic Tool Eye

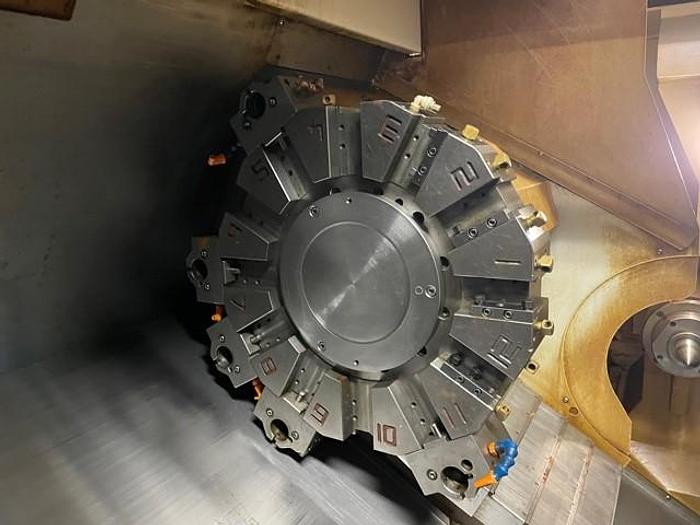

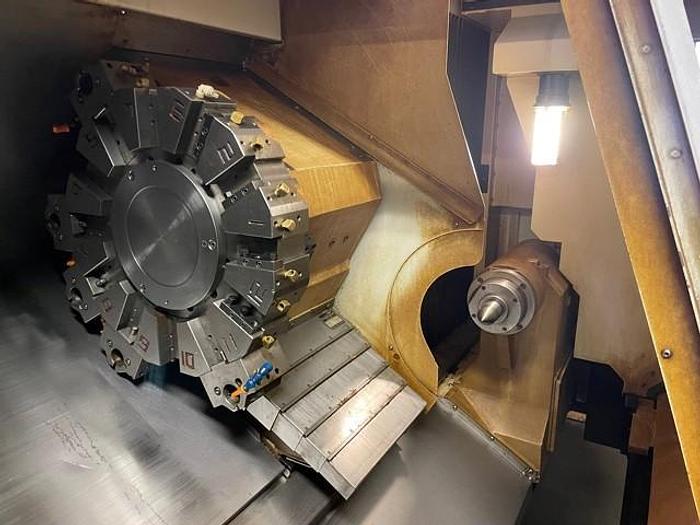

12 Position Drum Turret Bolt-On Style Tooling

Programmable Tailstock

Chip Conveyor

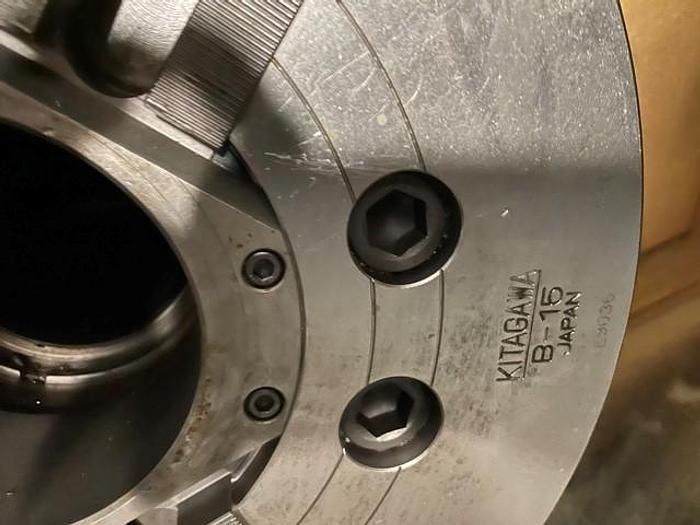

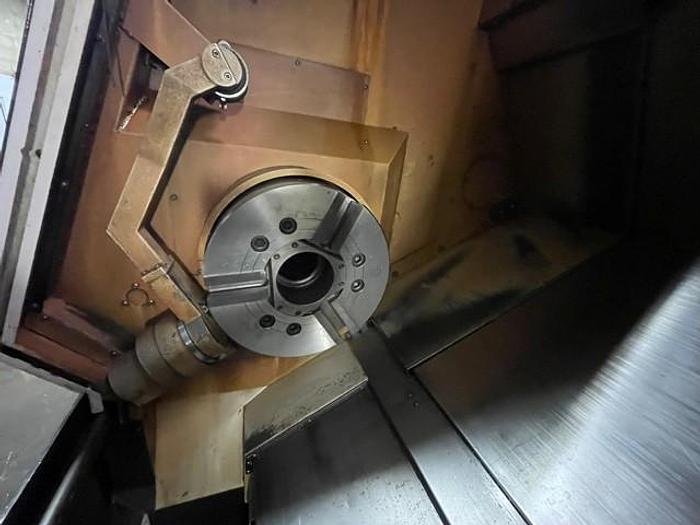

12” KITAGAWA CHUCK

COLANT SYSTEM

SPLASH GAURDS
